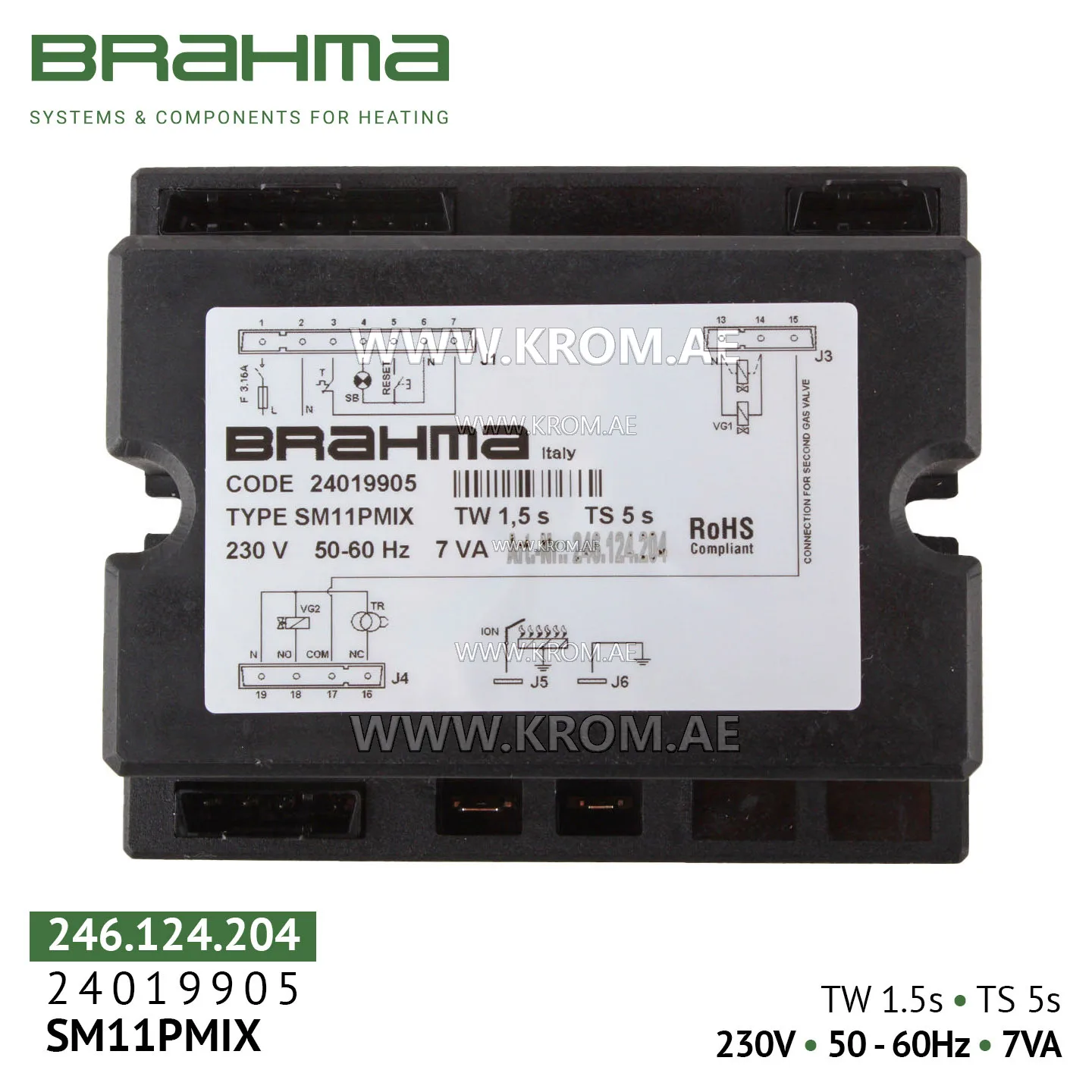

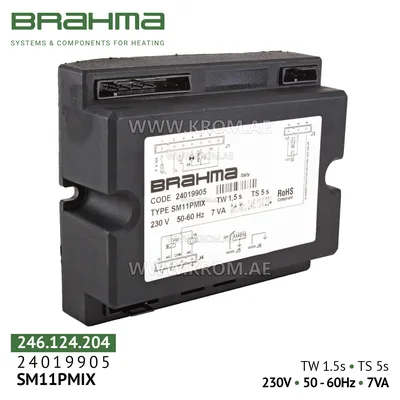

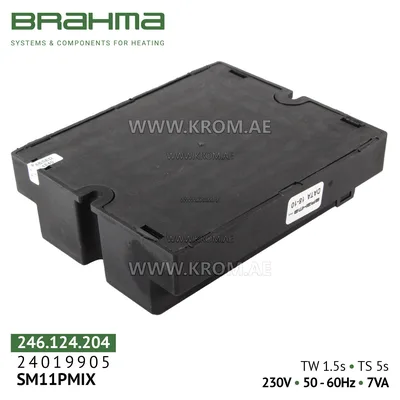

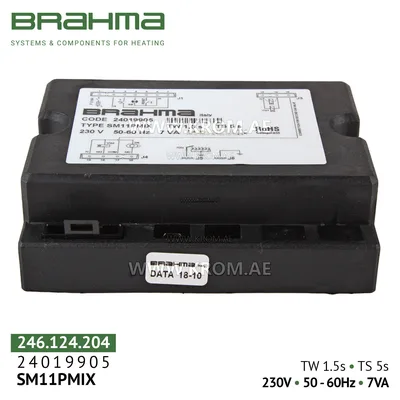

Brahma 24019905 SM11PMIX control box

Brahma SM11PMIX is a microprocessor controller ("burner management system") designed for automatic ignition control, flame monitoring and safe operation of atmospheric gas burners with intermittent operation (with or without fan in the combustion circuit). Article 24019905 is a modification marked "PMIX", which is characterized by an increased safety time (TS) up to 5 seconds (as opposed to the standard 10 seconds for regular SM11). This makes it an ideal choice for burners requiring a longer time for stable flame ignition. Due to its technical characteristics, the burner management system is successfully used in a wide range of equipment: Professional kitchen equipment: gas pizza ovens, combi steamers, cooking tops, kitchen ranges. Heat generating units: heating and combined boilers, air heaters, warm air generators, water heaters. Industrial and climate equipment: infrared heaters, furnaces, radiant tube heaters. ✨ Main functions and features Full automation of the combustion cycle: The unit independently performs the sequence: check for absence of flame, pre-purge, ignition process, continuous combustion monitoring and safe shutdown upon flame loss, protecting the system from leaks and emergency situations. Reliable ionization flame control: Combustion monitoring is carried out via an ionization electrode (not included). Reaction time upon flame loss is less than 1 second, meeting strict safety standards. High safety class with manual reset: In any abnormal situation, the controller goes into safety lockout. Restart of the burner is only possible manually by pressing the reset button
