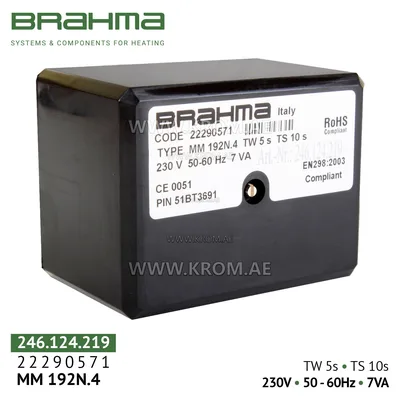

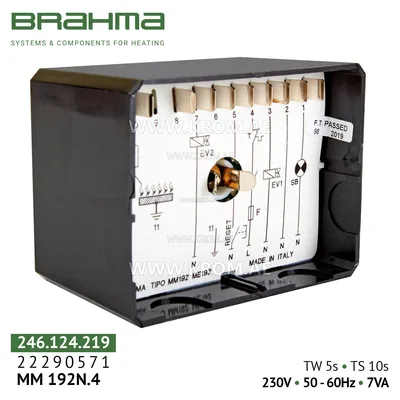

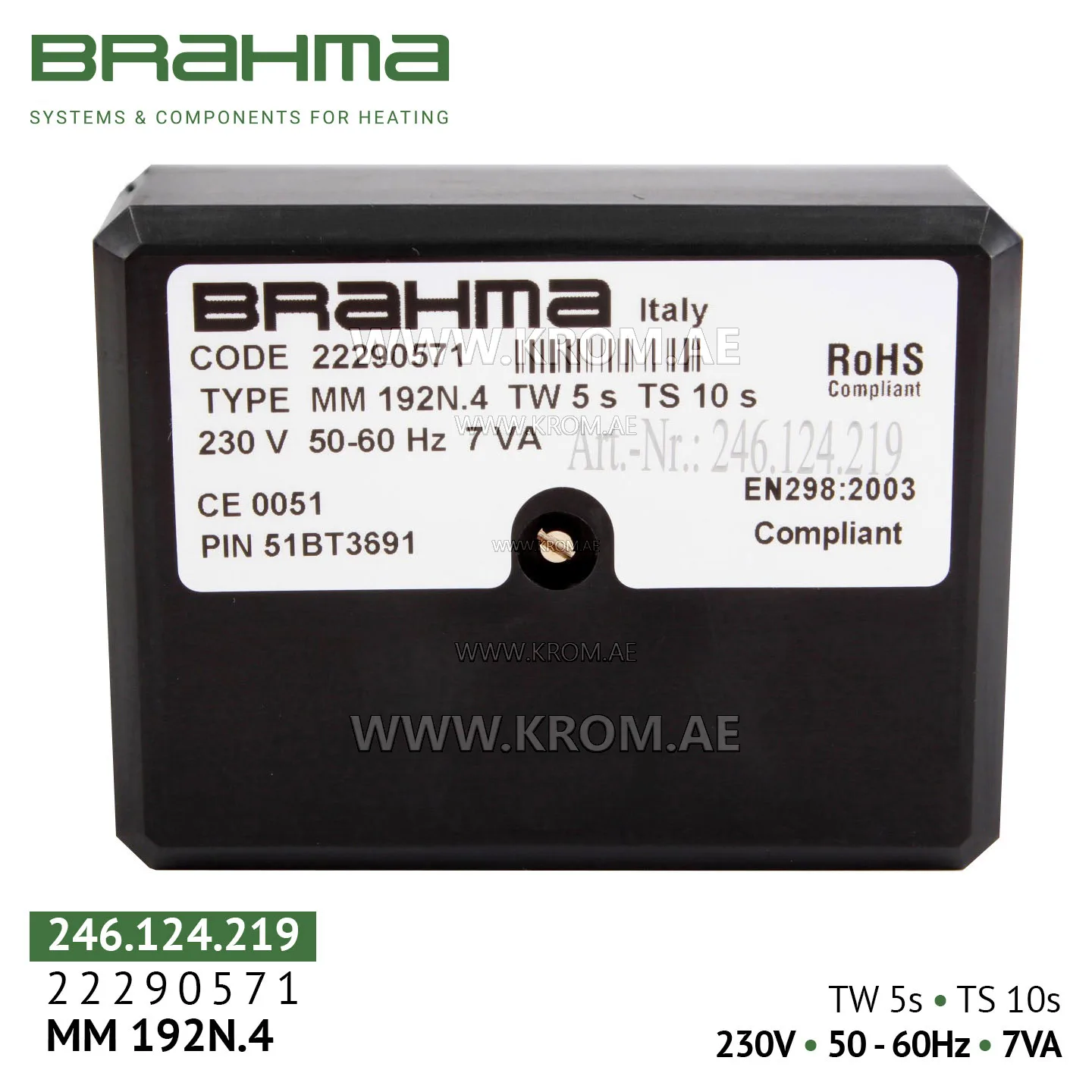

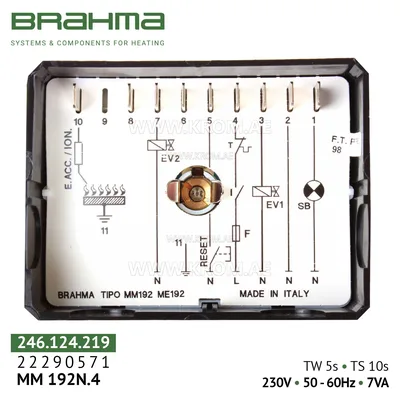

Brahma 22290571 MM192N.4 control box

Brahma MM192N.4 burner control unit (art. 22290571) is an automatic microprocessor device for controlling ignition and flame presence in gas burners, heating boilers, heat generators and other equipment. Model MM192N.4 is a reliable and proven solution for professional heating equipment. Main characteristics: Type – burner control unit with ionization flame monitoring; Supply voltage – 230 V, 50/60 Hz; Safety lockout time – 5 seconds (standard for version .4); Protection class – IP40; Operating temperature – from 0°C to +60°C; Gas valve output – 230 V AC; Ignition output – high-voltage pulse (built-in transformer); Mounting – on DIN rail or with screws. Features: Fully automatic ignition cycle with ionization monitoring. Built-in high-voltage transformer – no external ignition unit required. LED indication of modes and fault codes. Protection against false flame and restart with burner on. Immunity to interference and voltage fluctuations. Application: Gas burners with forced air supply (including fan-assisted). Heating boilers, convectors, air heaters. Industrial and domestic air heaters. Process equipment (furnaces, dryers, baking ovens). Ordering numbers: 22290571, 246.124.219
