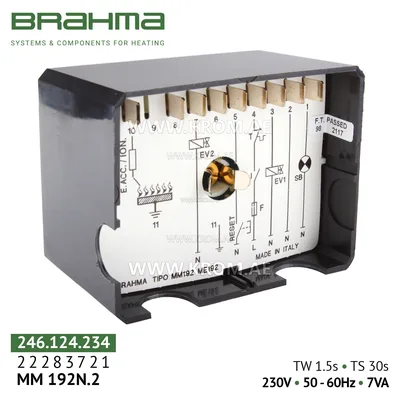

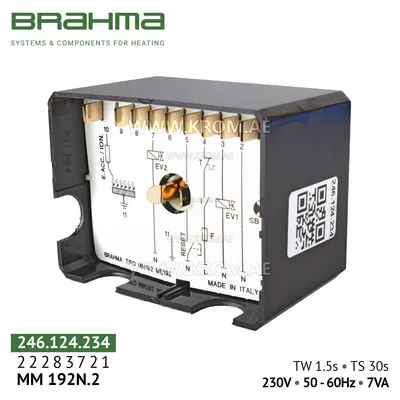

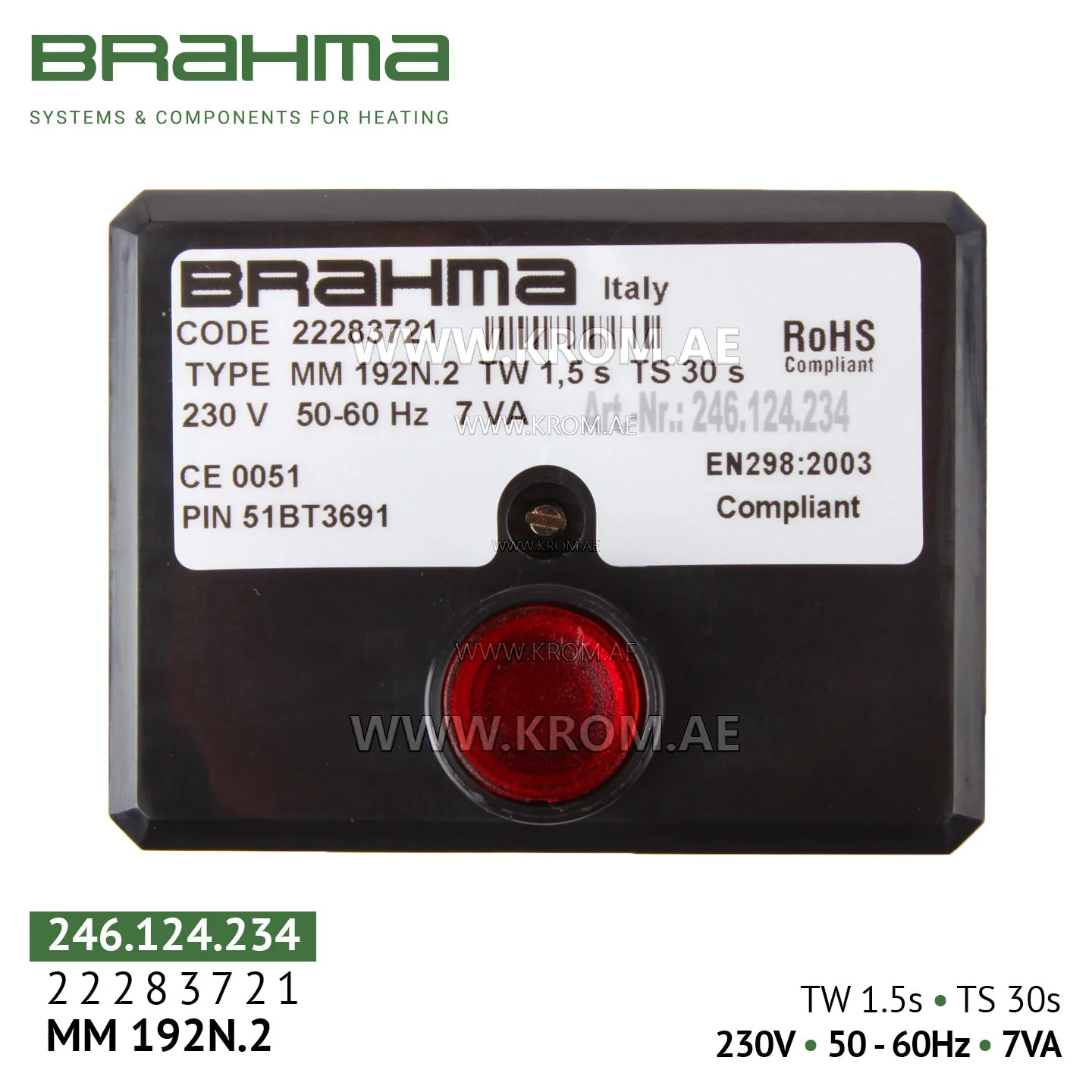

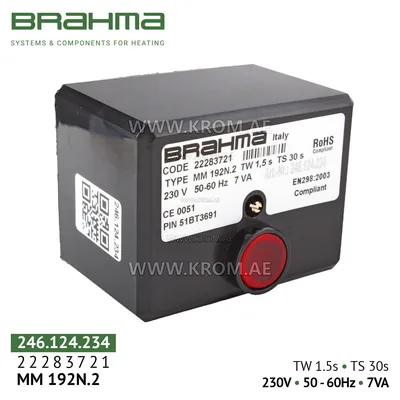

Brahma 22283721 MM192N.2 control box

Brahma MM192N.2 combustion control unit (art. 22283721) is an automatic device for controlling and managing the ignition and combustion process in gas burners, boilers, heat generators and other thermal equipment. The MM192N.2 model belongs to the Brahma professional series and ensures reliable operation of safety systems. Main characteristics: Type – combustion control unit (ionization flame control) Supply voltage – 230 V, 50/60 Hz Safety lockout time – less than 5 seconds (NS) Protection class – IP40 Operating temperature – from 0°C to +60°C Valve output – 230 V AC Ignition output – high voltage pulse Mounting – on DIN rail or with screws (depending on version) Features: Microprocessor control with ionization monitoring. Built-in high-voltage ignition transformer. Fault diagnosis via LED indicator (flashing codes). Protection against restart in the presence of flame. Suitable for burners with one or two electrodes (ignition + control). Application: Low and medium power gas burners. Heating boilers, convectors, air heaters. Industrial and domestic air heaters. Baking ovens, drying chambers. Order numbers: 22283721, 246.124.234
