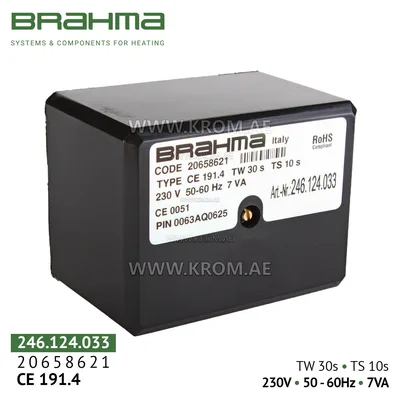

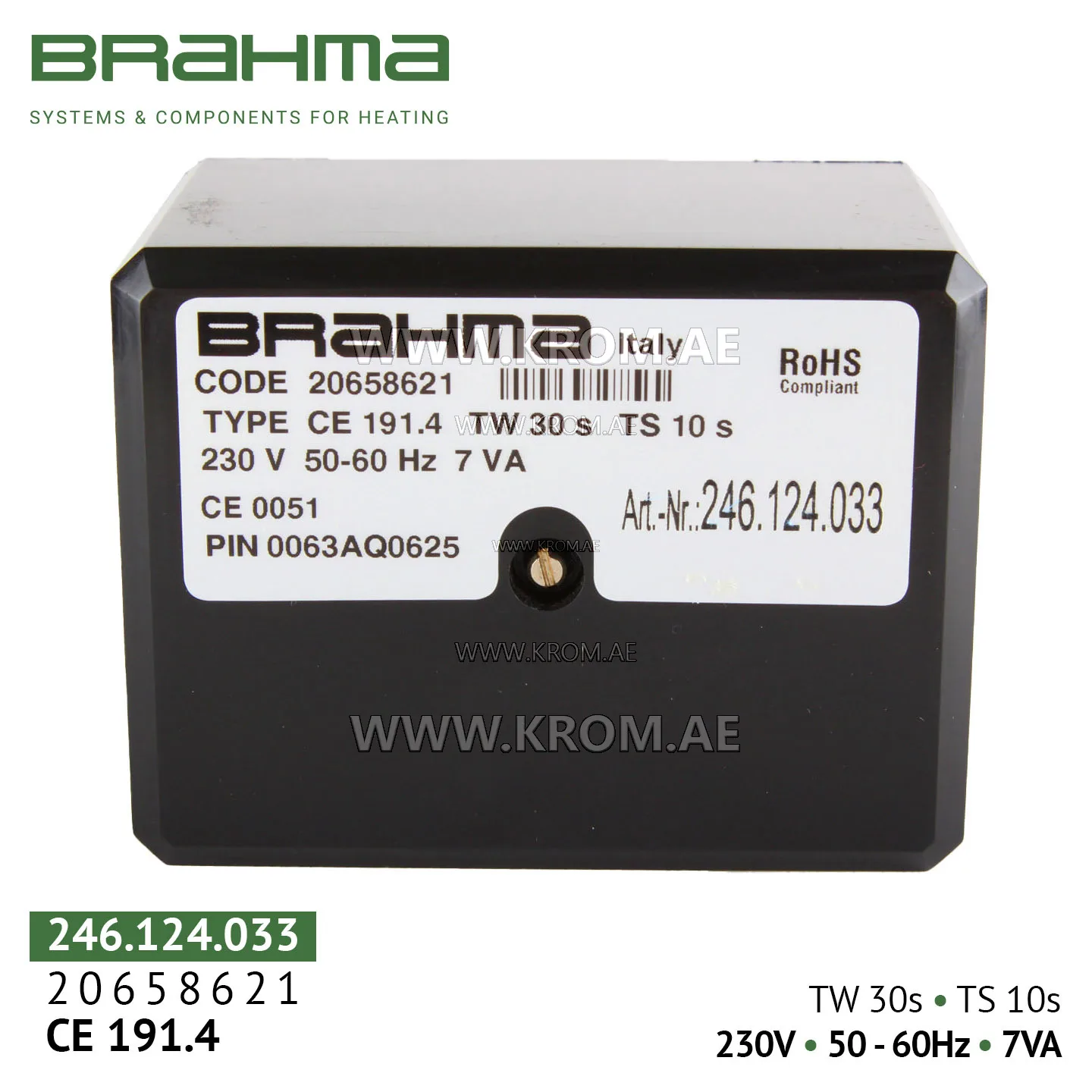

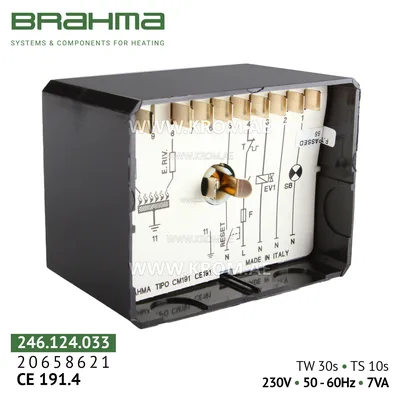

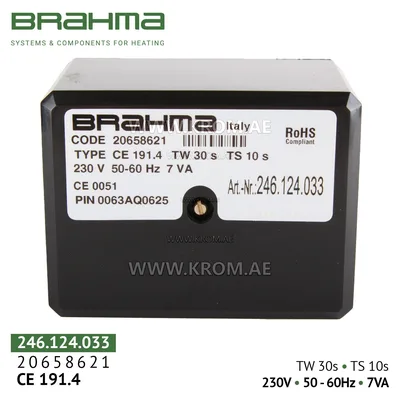

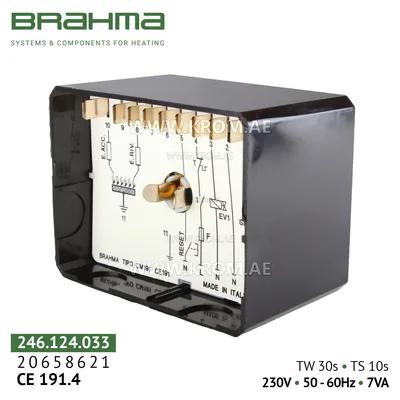

Brahma 20658621 CE191.4 control box

Brahma CE 191.4 burner control unit (art. 20658621 / 246.124.033) is a highly reliable “burner control unit” from the CE series, designed for automation and safe control of atmospheric gas burners. This device fully manages the combustion process – from ignition to emergency shutdown – and is an ideal solution for heating boilers, air heaters and other gas equipment. Purpose and applications Brahma CE191.4 is designed for modulating (progressive) gas burners with a single flame, operating in intermittent (cyclic) mode. The device: Is compatible with both fanless burners and forced‑air burners. Is widely used in combination and heating boilers, air heaters, infrared (IR) heaters and water heaters. Key feature: electric reset (volatile lockout) The main distinguishing feature of this model is its reset mode: Electric reset: In the event of a safety lockout (flame absence or flame failure), restarting the burner does not require manually pressing a Reset button on the housing. Simply disconnect and then reapply power to the unit (interrupt the power supply for a few seconds). This is very convenient for systems with remote control. Main timing parameters (TW/TS) For article 20658621, the following factory parameters are set – they are extremely important to consider when replacing the unit: Parameter Value Pre‑purge time (TW / tp / t1) 30 seconds Safety time (TS / t2) 10 seconds Supply voltage 230 V, 50‑60 Hz Power consumption 7 VA Important: Before purchasing, be sure to check the timing parameters of your burner. Choosing the wrong unit (for example, with a pre‑purge time of 1.5 s instead of 30 s) can lead to improper operation or operational failures. Other key features Ionisation flame monitoring – Provides an immediate reaction to flame loss – less than 1 second. Built‑in ignition transformer – Simplifies burner installation by eliminating the need for a separate ignition unit. Volatile lockout – In the event of a fault or power interruption, protection is maintained. Restart is only possible as described above. Protection against external influences – The housing protects the electronics from dust and moisture (IP40 protection class), mechanical damage, and includes built‑in protection against voltage surges and short circuits. Long service life – Rated for at least 250,000 switching cycles. Wide temperature range – Operates reliably at temperatures from –20 °C to +60 °C. Technical specifications Parameter Value Model Brahma CE 191.4 Article numbers 20658621 / 246.124.033 / 20657621 Supply voltage 230 V, 50/60 Hz Power consumption 7 VA Pre‑purge time (TW) 30 seconds Safety time (TS) 10 seconds Waiting time (TW) 10 seconds (for art. 20657621) / 30 seconds (for art. 20658621) Flame control Ionisation sensor Minimum ionisation current 1.2 mA Operating mode Intermittent Service life > 250,000 cycles Enclosure protection class IP40 Operating temperature –20 °C to +60 °C Dimensions (with base) 8.5 × 6 × 6.5 cm Weight 0.275 kg Base included No Compatibility and replacement Brahma CE 191.4 (20658621) and Brahma CE191.4 (20657621) are models of the same series with different timing parameters. They are not interchangeable without checking and re‑adjusting the burner. When replacing, always compare the timing parameters (TW/TS) on the label of your old unit with those of the new one. Installation and operation Mounting – The device is intended for installation in dry, ventilated places inside a control cabinet. A connection base is purchased separately; the wiring diagram is printed on the housing. Maintenance – It is recommended to periodically check the reliability of contacts and the cleanliness of the ionisation electrode. Lockout reset – In the event of a safety shutdown (red LED lit), find and eliminate the cause (check gas supply and draught), then disconnect and reapply power to the unit. Package contents Brahma CE 191.4 burner control unit – 1 pc. Quick installation and operation guide. Storage conditions and warranty Storage: In a dry place, protected from direct sunlight, at a temperature between –20 °C and +70 °C. Warranty: 12 months (please check with the seller) provided that installation and operating rules are followed. Order codes: 20658621, 246.124.033
