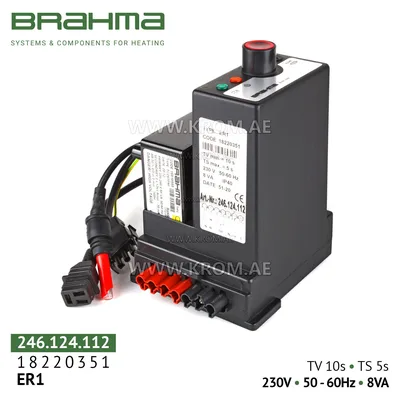

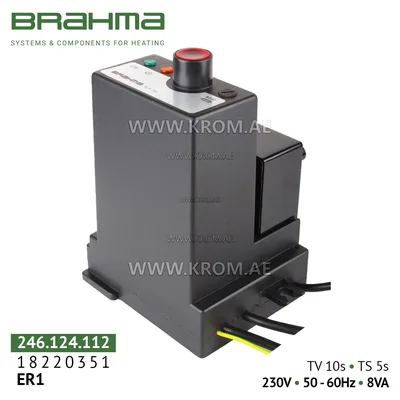

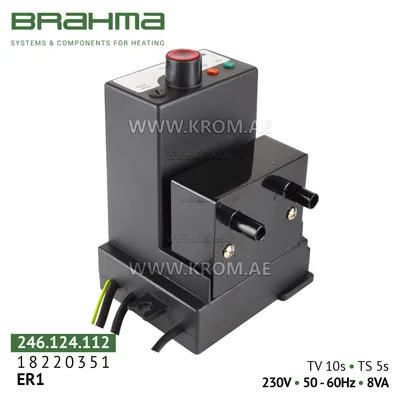

Brahma 18220351 ER1 control box

The Brahma ER1 18220351 gas controller is designed to control the electronic and electrical components of atmospheric gas burners with progressive power control and intermittent operation support. Specifications: Type of combustion system: Atmospheric, providing efficient combustion. The type of fuel used: Gas sources that ensure energy saving and efficiency. Burner characteristic: Progressive burner, which helps to optimize the combustion process and increase efficiency. Operating mode: Intermittent mode for precise and controlled fuel consumption. The presence of a base: A base is provided for ease of installation and stability of the device. Pre-ventilation time (TV/TP): 10 seconds to ensure optimal start-up conditions. Safety time (TS): 10 seconds, ensuring safe and reliable operation. Power supply: 230 V, providing stable power supply. Dust and moisture protection class: IP 40, which guarantees reliable protection from external influences. Cable set for connection: Included, providing easy installation and connection. Built-in ignition transformer: Present, increasing the reliability and autonomy of the ignition system. Main features: Control and monitoring of the burner functions of medium/high thermal power. Intermittent cycle, providing at least one shutdown during 24-hour operation. The function of self-checking the operability of components. Complete set with a base for easy installation. Flame control by ionization or using a UV sensor. The housing is made of fire-resistant and impact-resistant polymer material. Mains supply: 230 V, -15%, +10%. Equipped with an ignition transformer.
