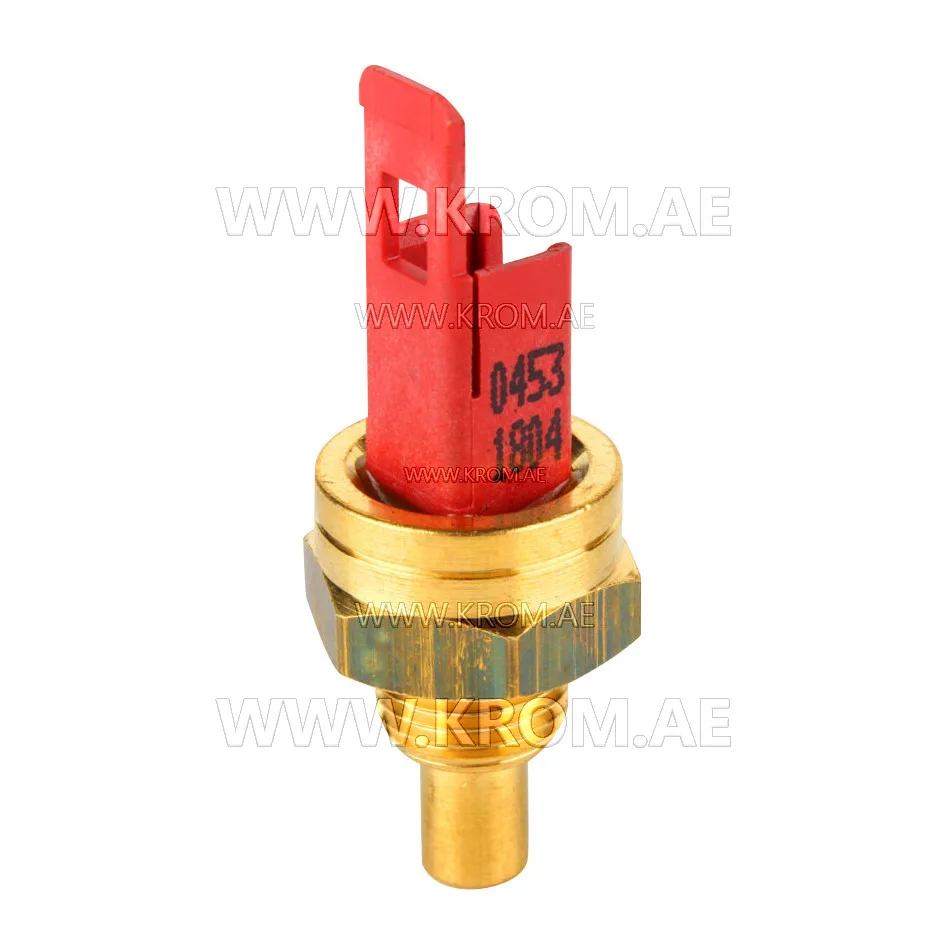

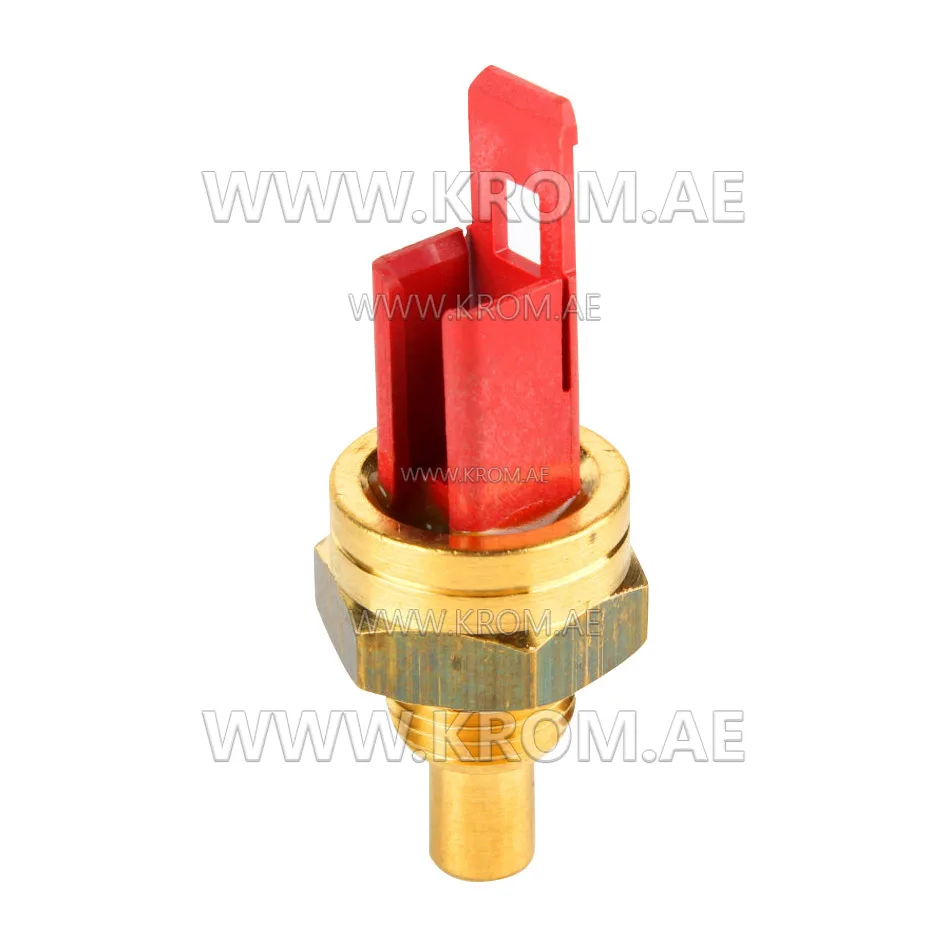

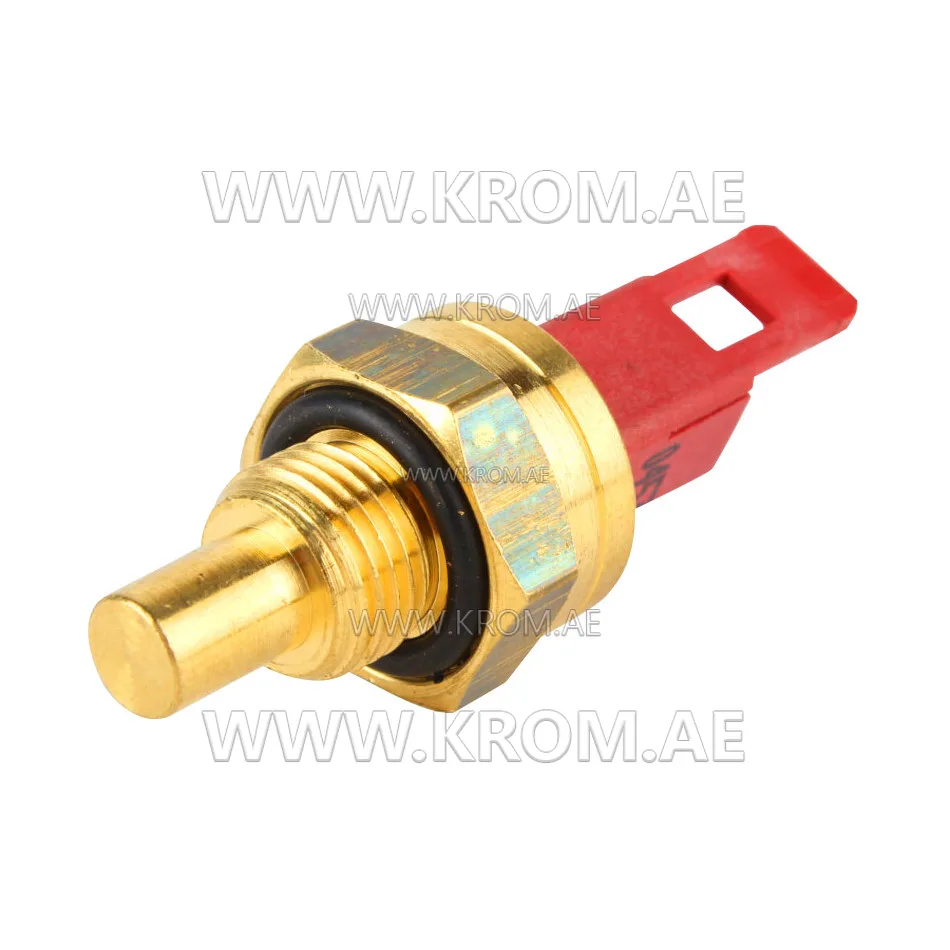

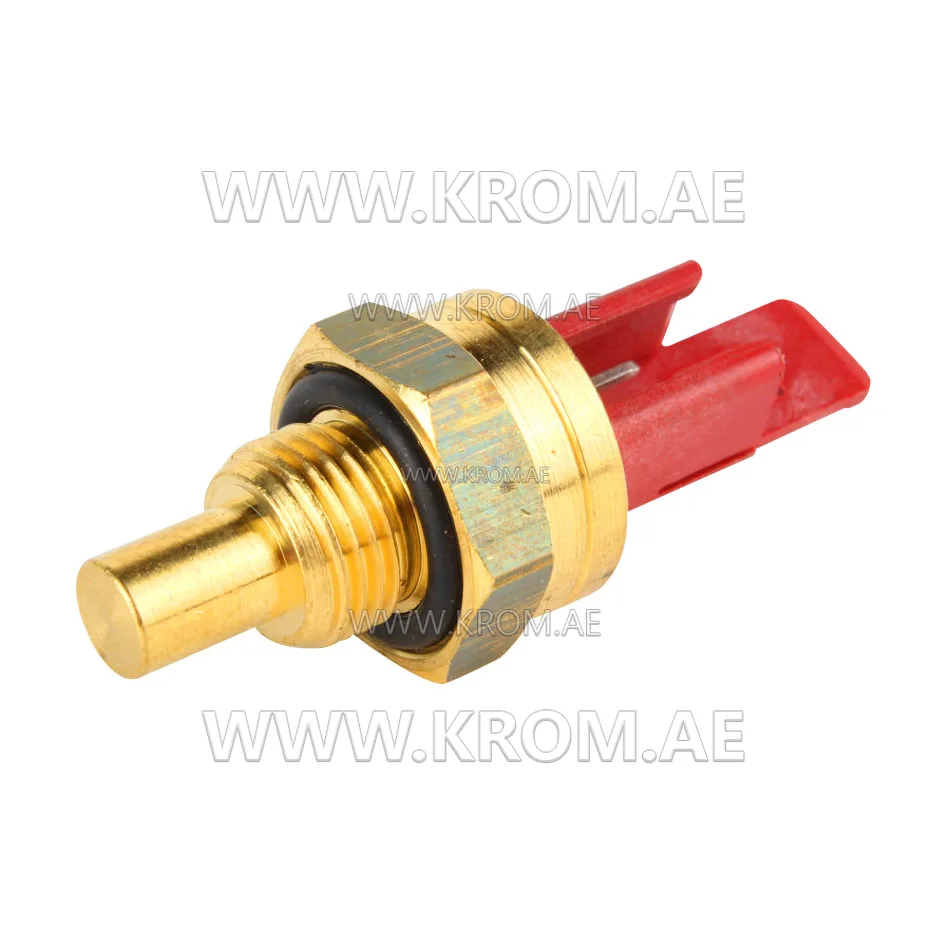

Brahma 18200453 ST09 L G1/8 CH15 temperature sensor

Brahma NTC108 temperature sensor — immersion temperature sensor designed to control the temperature of the heat transfer fluid in heating and hot water supply systems. Used in floor-standing and wall-mounted boilers, boilers with DHW tank, storage and instantaneous water heaters for precise liquid temperature control. The sensor transmits information to the boiler control board, ensuring correct operation of the heating system and protection of equipment from overheating. Advantages: Original Brahma temperature sensor Manufacturer part number: 18200453 Internal part number: 246.220.108 Immersion installation type High measurement accuracy Fast response Reliable construction Long service life Technical specifications: Type: immersion temperature sensor Model: ST09 M1 Connection: G1/8 Version: CH15 Connector color: red Dimensions: 40 × 20 × 15 mm Net weight: 0.010 kg Gross weight: 0.015 kg Application: Suitable for: floor-standing boilers wall-mounted boilers boilers with hot water tank storage water heaters instantaneous water heaters Used in Vaillant equipment (indicated in the product card), as well as in compatible heating and DHW systems. Original Brahma NTC108 sensor ensures stable operation of heating equipment and precise liquid temperature control.
