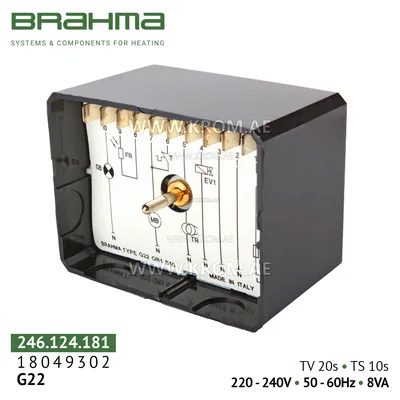

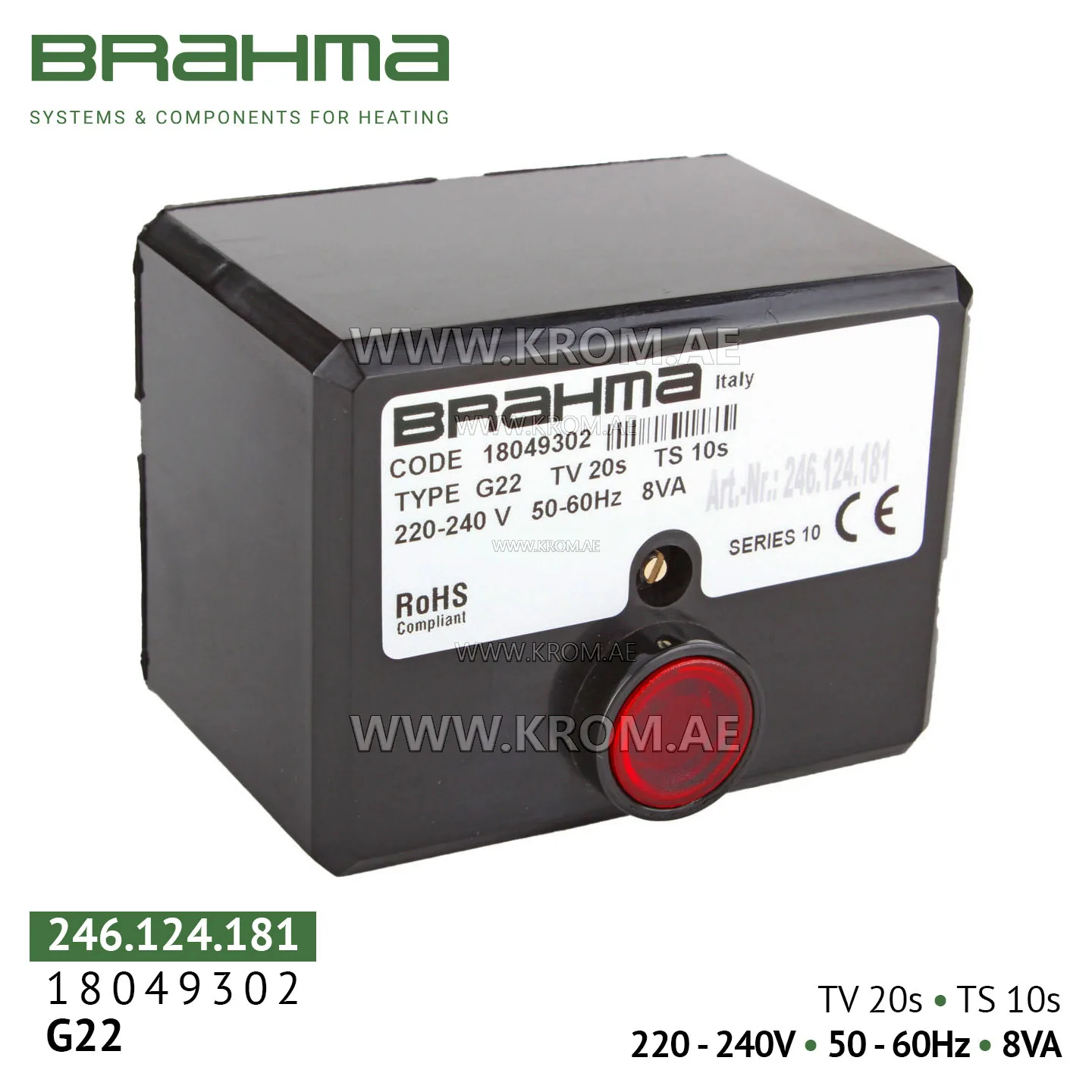

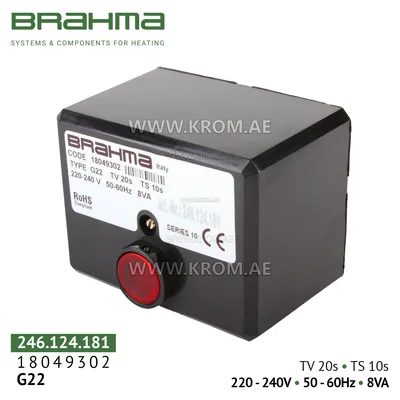

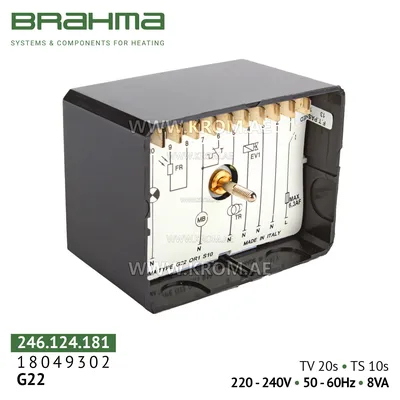

Brahma 18049302 G22 control box

Brahma G22 is a reliable microprocessor controller (burner manager) designed for full automation, flame monitoring and safe operation of forced-draught liquid fuel (diesel) burners in both domestic and industrial systems. Purpose and application Brahma G22 18049302 is intended for intermittent (cyclic) operation and is ideal for single-stage and two-stage forced-draught diesel burners (with fan). The device works effectively with burners with a capacity of up to 30 kg of fuel per hour, with or without fuel preheating. The control unit is used in a wide range of heat-generating equipment: heating and steam boilers; air heaters, warm air generators; industrial furnaces, drying chambers; monoblock burners, washing machines; burners of leading brands (Riello, Baltur, Weishaupt, Lamborghini and others). Main functions and features Control of single- and two-stage burners: the controller is suitable for both single-stage and two-stage burners with a single flame. Reliable flame monitoring via photosensor: photocells (FC7, FC8, etc.) are used for flame detection. Flame loss response time is less than 1 second, ensuring instant fuel shut-off. Manual reset of safety lockout (non-volatile lockout): in the event of any abnormal situation (no flame, ignition failure) the unit goes into a safe state. Restart is only possible manually by pressing the Reset button on the housing after the cause has been eliminated. This eliminates the risk of spontaneous burner start-up and meets the highest safety class. Inside the reset button there is a red indicator lamp that lights up during a safety lockout. Two independent fuses
