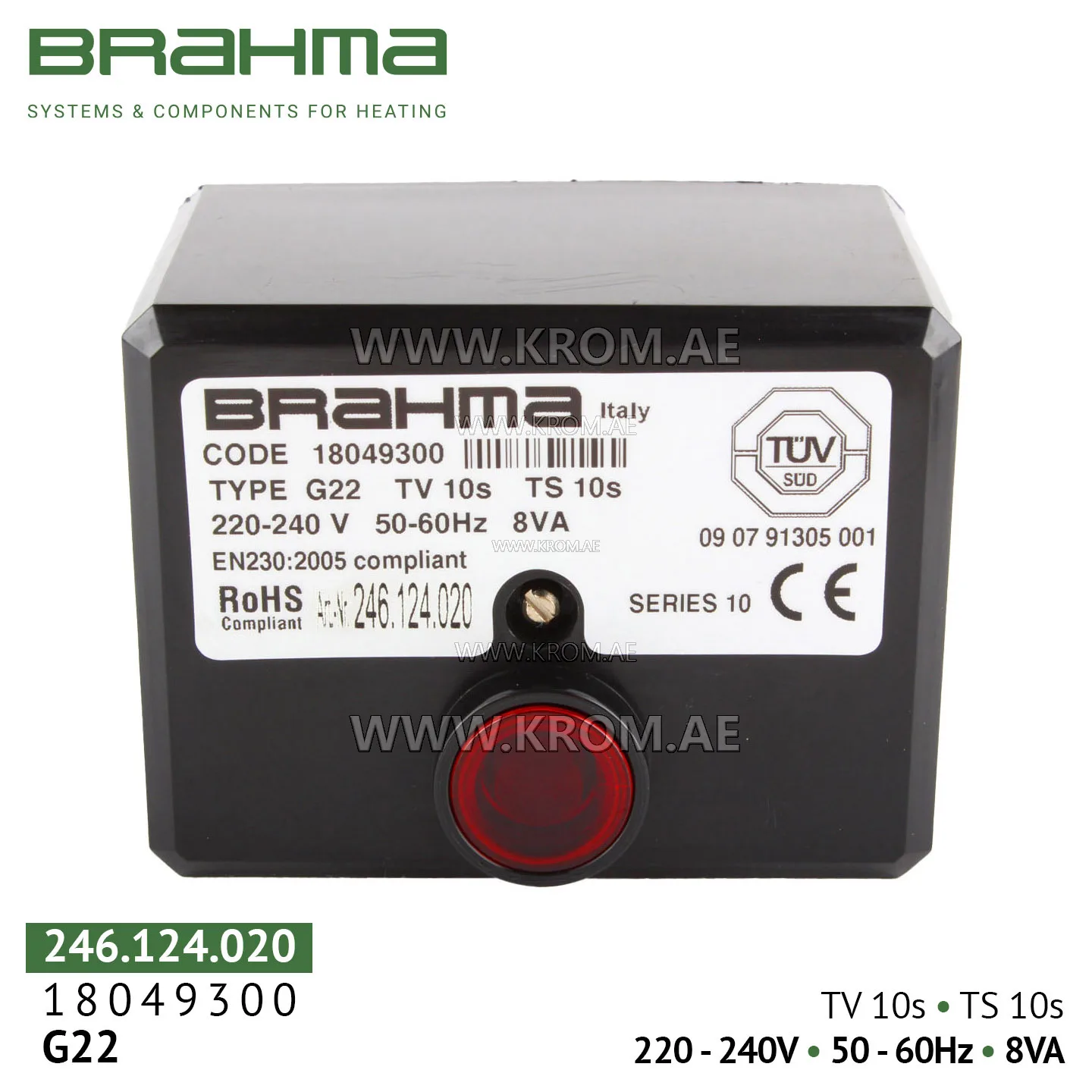

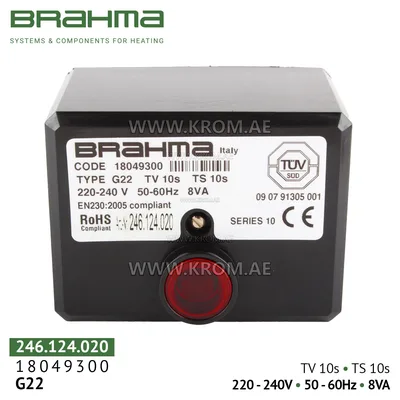

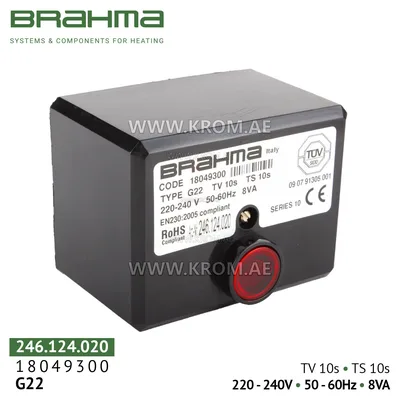

Brahma 18049300 G22 control box

Brahma G22 (art. 18049300) is a reliable microprocessor controller designed for full automation and safe operation of liquid fuel (diesel) burners in both domestic and industrial heating systems. Purpose and application Brahma G22 18049300 is ideal for automating ignition processes, power control and safe shutdown of diesel burners. It is used in a wide range of equipment: Heating systems: diesel burners in residential and industrial buildings, heat generators, steam boilers. Industrial installations: furnaces for various purposes, process lines. Professional equipment: electric washing machines, monoblock oil burners. Main functions and features Versatility: The burner manager is compatible with burners operating in both single-stage and two-stage mode with a single flame. Non-volatile safety lockout: In any abnormal situation (e.g., ignition failure) the unit goes into a safe state. Restart is only possible manually by pressing the reset button on the housing after eliminating the cause. Dual safety circuit: The fuel valve output is equipped with two independent safety contacts, eliminating fuel leakage if one fails. Instant flame monitoring: The controller uses photocells FC7/FC8 and provides instant fuel shut-off upon flame loss (less than 1 second). Built-in diagnostic and protection systems: Self-diagnostics: Forced controlled restart every 24 hours of continuous operation for self-check. Surge protection: Built-in varistor protects electronics from peak overvoltages in the mains. Short circuit protection: Built-in fuse protects output circuits. Red signal l
