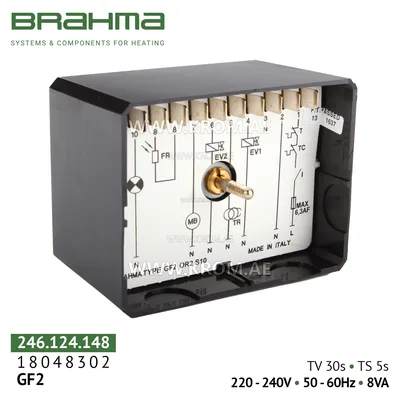

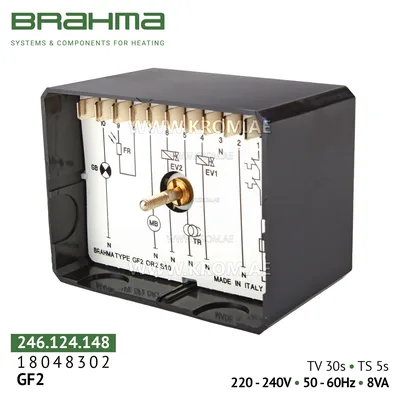

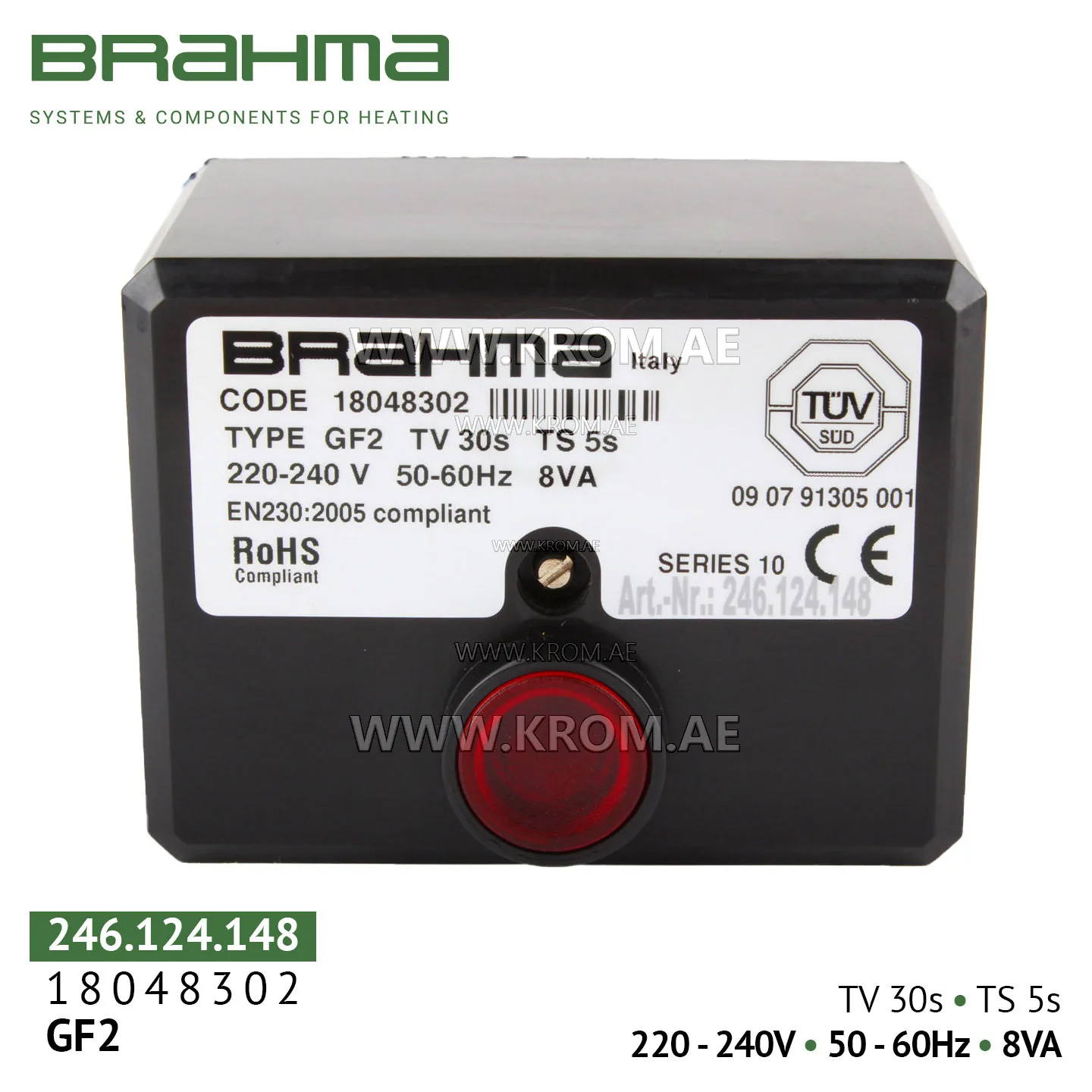

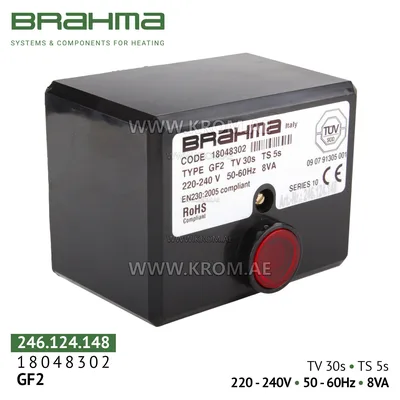

Brahma 18048302 GF2 control box

Brahma GF2 (art. 18048302) is a fully solid-state microprocessor controller ("flame safeguard") that takes full control of your liquid fuel burner. This intelligent device becomes the reliable and efficient heart of your heating system, ensuring safe ignition and stable operation. Purpose and application: Brahma GF2 (18048302) is specifically designed for forced-draft (with fan) liquid fuel (diesel) burners operating in intermittent (cyclic) mode. It is equally effective for controlling both single-stage and two-stage burners. This flame safeguard is a key component for a wide range of heat-generating equipment, including: monoblock burners, steam and heating boilers; heat guns, hot air generators; industrial and domestic ovens; washing machines and kitchen stoves. Main functions and features: Two independent safety contacts: for maximum safety, the fuel valve output has two independent contacts connected in series. This duplication eliminates the possibility of fuel leakage if one fails. Instant flame monitoring and protection against extraneous light: flame detection via photocell (e.g., FC7/FC8), and the control system ensures immediate fuel shut-off upon flame loss – reaction time less than 1 second. Non-volatile lockout and manual reset: in any abnormal situation (ignition failure, flame loss) the unit goes into safe state. Restart only possible manually by pressing the reset button on the housing after eliminating the cause. Inside the reset button is a red indicator lamp that lights up during lockout. External ignition transformer: this
