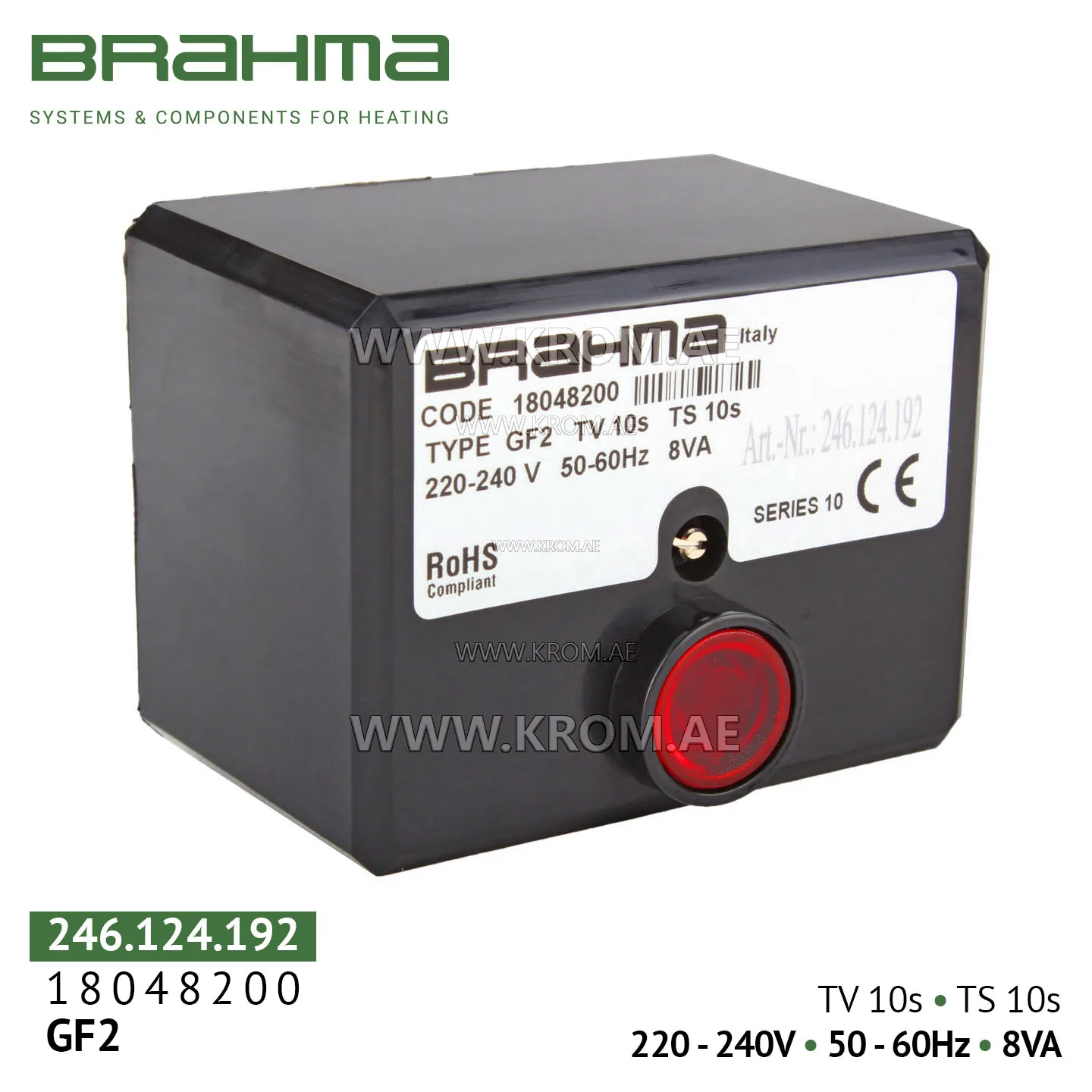

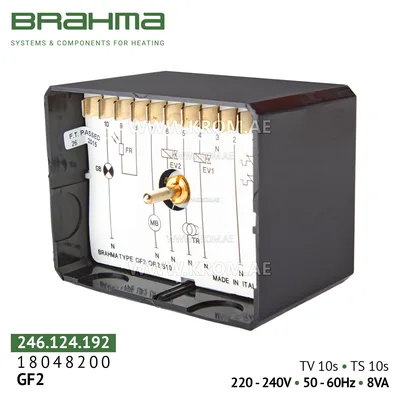

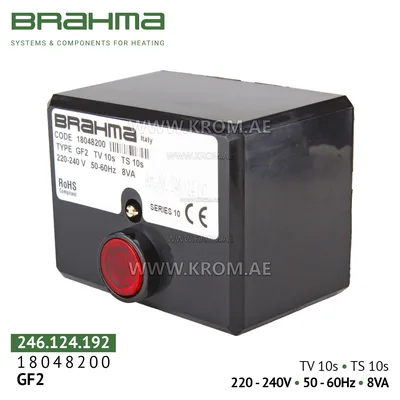

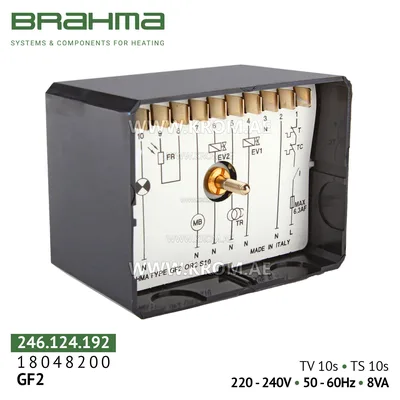

Brahma 18048200 GF2 control box

Brahma GF2 (art. 18048200 / 246.124.192) is a reliable "burner management system" (flame safeguard control) that takes full control of your oil burner. This intelligent device ensures safe ignition, stable operation, and fuel savings. Purpose and application: Brahma GF2 is a fully solid-state microprocessor controller designed to automate the ignition, flame monitoring, and safe operation of forced-draft (with fan) oil (diesel) burners in intermittent (cyclic) mode. The device effectively manages both single-stage and two-stage burners running on diesel fuel. The control unit is widely used in various types of heat-generating equipment: heating and steam boilers (domestic and industrial); air heaters, including popular models Master BV70, BV110, BV170, BV290, Master B230, B360, OKLIMA; industrial furnaces and heat generators; monoblock oil burners; equipment from brands Riello, Weishaupt, Giersch, Viessmann, Lamborghini. Key functions and features: Key timing parameters: This modification (18048200) has a pre-purge time (TV) = 20 seconds, safety time (TS) = 5 seconds. Fuel consumption up to 30 kg/h. Safety and flame detection: Flame detection via photocells (type FC7/FC8). Reaction time to flame loss is less than 1 second. In case of faults, the unit automatically interrupts fuel supply, and a reset button is provided to resume operation. Two independent safety contacts: For maximum safety, the fuel valve output is equipped with two independent contacts connected in series. This redundancy eliminates the possibility of fuel leakage.
