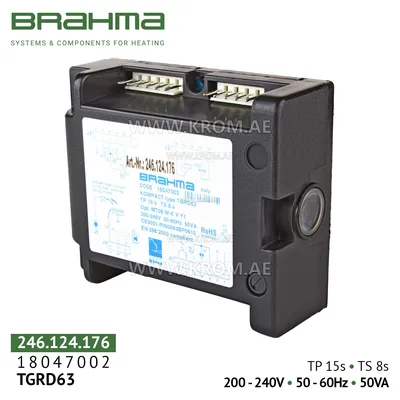

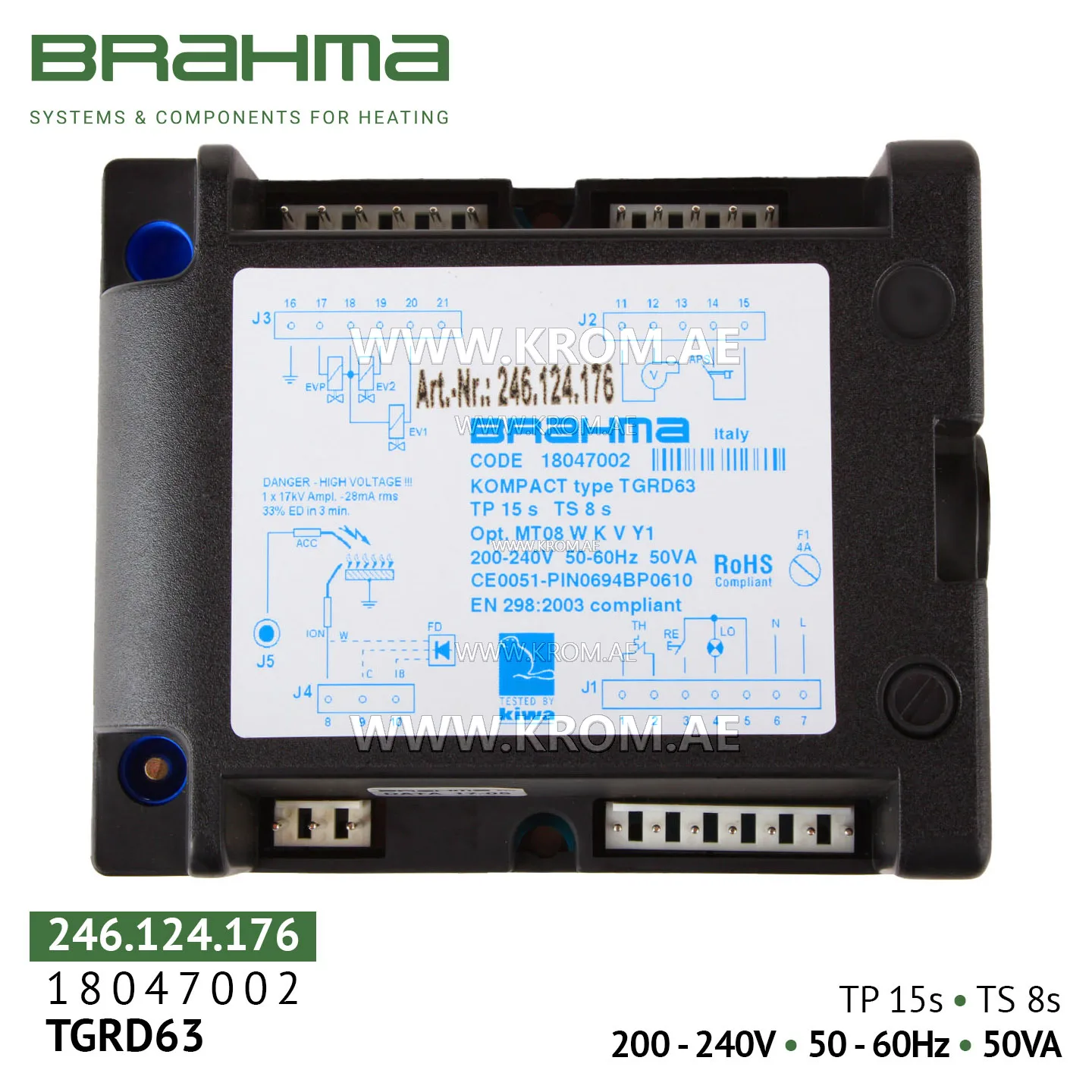

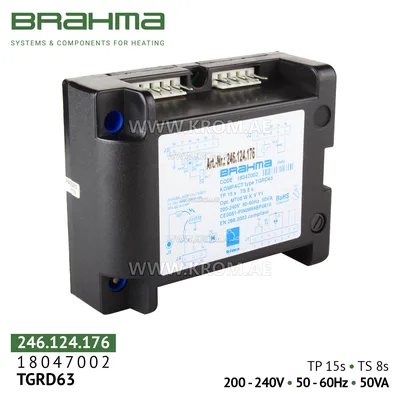

Brahma 18047002 TGRD63 control box

Brahma TGRD63 is a high-tech microprocessor-based controller ("burner manager") from the KOMPACT series, designed for full automation of ignition, flame monitoring and safe operation of atmospheric gas and liquid fuel (diesel) burners of progressive type. The device operates in intermittent cycle and is suitable for burners with both natural draught and forced air supply. Model TGRD63 (art. 18047002) is programmable and may have different time parameters depending on the firmware version. Before purchasing, always check the pre-purge time (TP) and safety time (TS) values indicated on the unit housing against your burner requirements. Common settings: TP=15 s, TS=8 s. Applications include: gas and diesel heating and combination boilers (domestic and industrial); air heaters, hot air generators (Master, Oklima, etc.); air heaters, radiant tube heaters; water heaters, process furnaces, washing machines; burners from Riello, Baltur, Weishaupt, Lamborghini and other brands. Main functions and features: Programmable time parameters: The unit allows flexible adjustment of pre-purge time (TP) from 1 to 120 seconds and safety time (TS) from 3 to 120 seconds. This allows the controller to be adapted to any burner. Built-in high-voltage ignition transformer: The device is equipped with a powerful built-in electronic ignition transformer, simplifying installation and reducing external components. Ionization flame control: Flame detection via ionization electrode (rectification effect). Reaction time on flame loss — less than 1 second, meeting EN 298 requirements. High c
