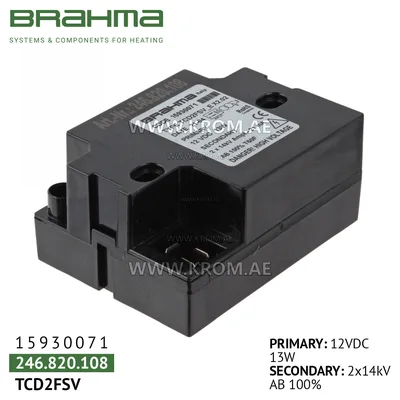

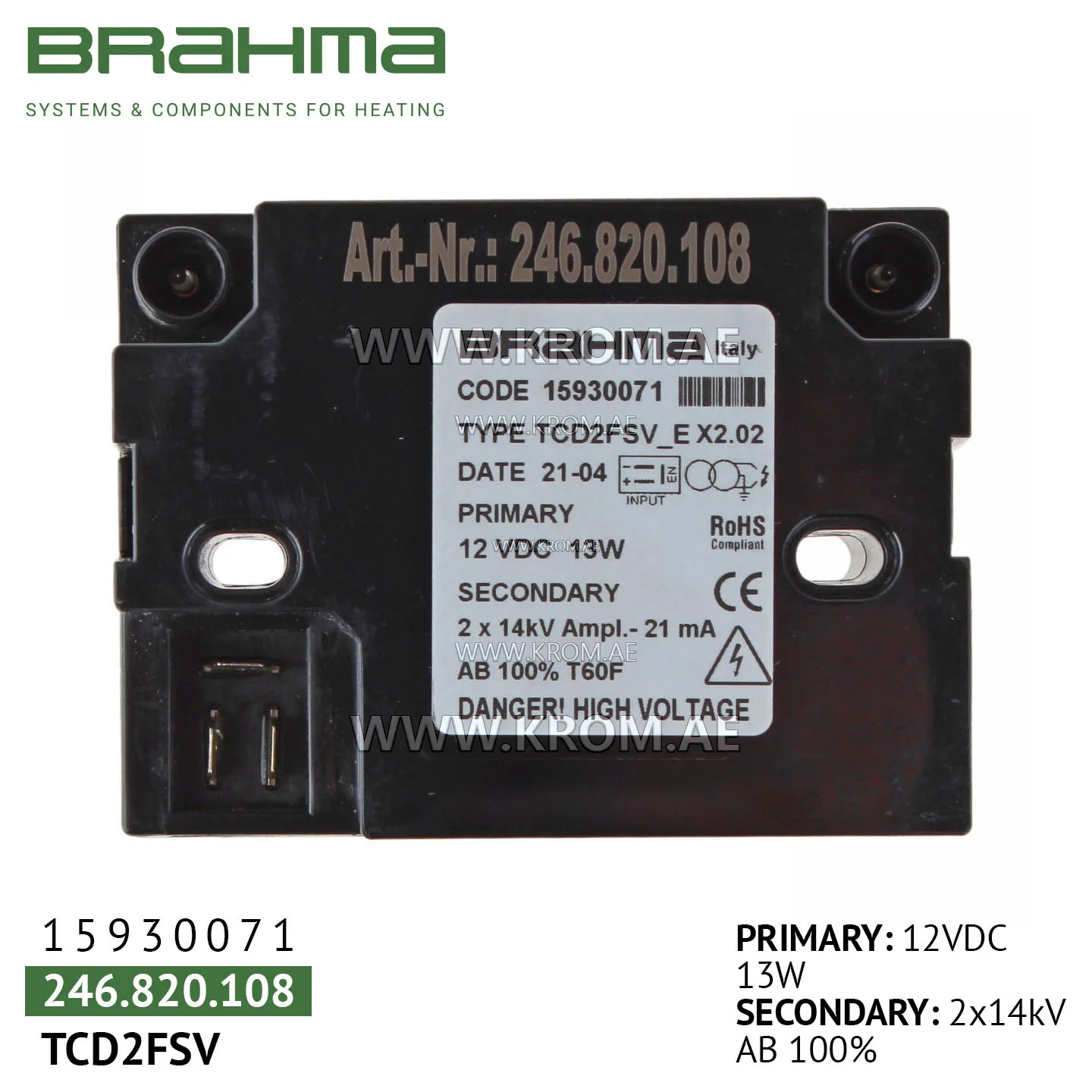

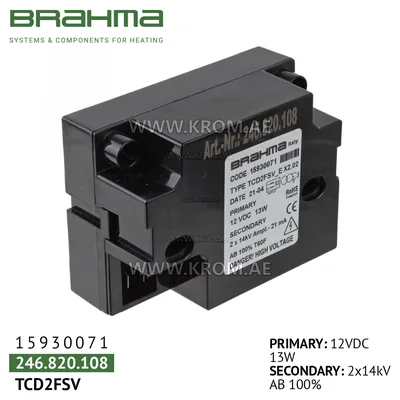

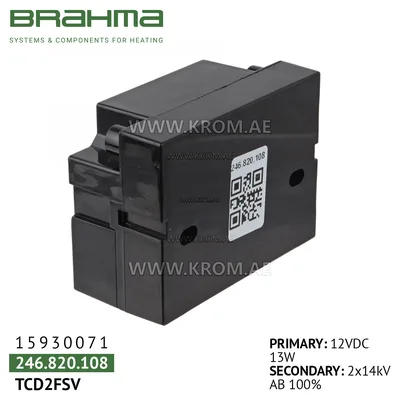

Brahma 15930071 TCD2FSV ignition transformer

BRAHMA TCD2FSV 15930071 ignition transformers are compact devices for gas and liquid fuel burners in various fields, including domestic, commercial and industrial installations. All of them are equipped with a filter and comply with the standards of Directive 2004/108/EC without the need for additional filters. The principle of operation is based on the use of a high-frequency electronic generator, which allows you to create a compact and lightweight device with high ignition power. The BRAHMA TCD2FSV 15930071 electronic circuit and spark transformer are treated with a special compound with high thermal conductivity and protection against temperature fluctuations and overloads during prolonged operation. The built-in varistor also provides protection against power surges in the power supply network. Specifications Built-in EMC filter; The dimensions allow you to replace most transformers from other manufacturers ; The dimensions correspond to the transformers of the TC and TD series manufactured by Brahma; High efficiency and ignition power; Low power consumption; Single or double-pin high voltage output; Various mounting and connecting systems; Built-in short circuit protection; In gas and liquid fuel burners, the safety of ignition transformers depends on the controller. Technical information Number of contacts: 2 Peak output voltage kV: 2*13 Rated output voltage kV: 2*4.1 Peak current mA: 62 Rated current mA: 21 Frequency of output voltage kHz (1): 10 Output voltage frequency kHz (2): 12 VA Energy Consumption: 19 Supply voltage: 230 V 50/60 Hz Duty cycle: 100% Operating temperature: -20 … +60 °C Protection: IP 00 Recommended spark distance: 3-5 mm Max. length of ignition cable: 1.5m Weight: about 250 g. Ignition cable connectors: plug-in Ø4 mm Connections BRAHMA TCD2FSV 15930071 transformers with ignition cable can be supplied with a triangular connector SP1 for connecting a power cable, or with a 6.35x0 connector.8; Cable length and end can be changed on request. The connection of the high-voltage cable is available in 2 versions: connection with an ø4 mm connector or a threaded connection. All connectors, including connectors with cable, are available on request. Installation ATTENTION! HIGH VOLTAGE. Connect and disconnect the transformer only after the power is turned off. The installation is carried out in accordance with national and European standards (e.g. EN60355-1 / EN50165) for electrical safety. The installation must ensure that the valve body is connected to the ground to provide protection against electric shock. - The transformer is installed in any position. Do not place high-voltage cables next to other cables. Ensure the appropriate level of protection for this installation.
