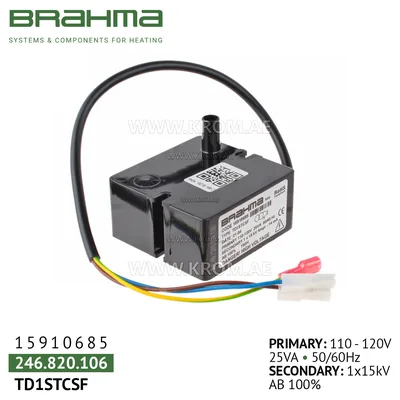

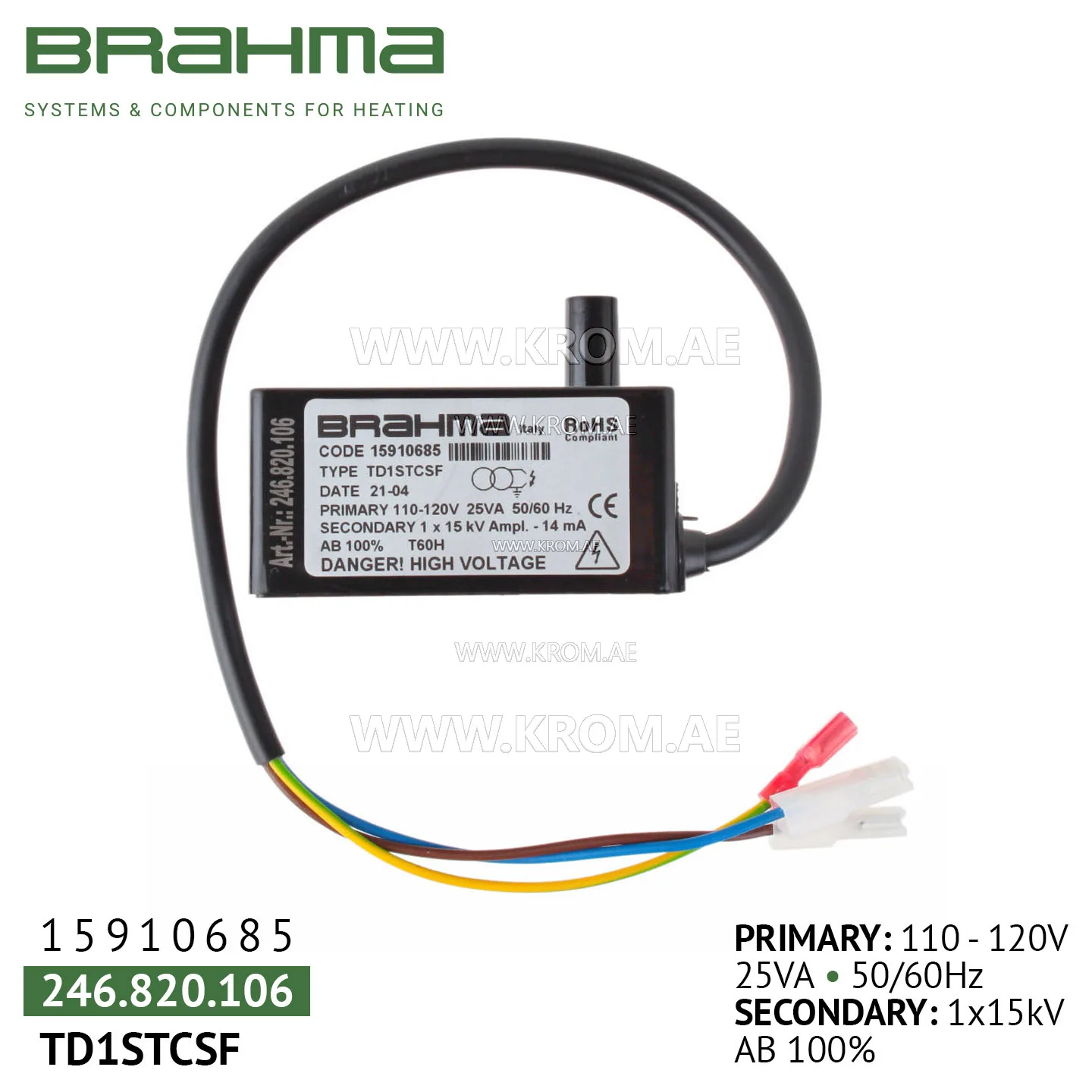

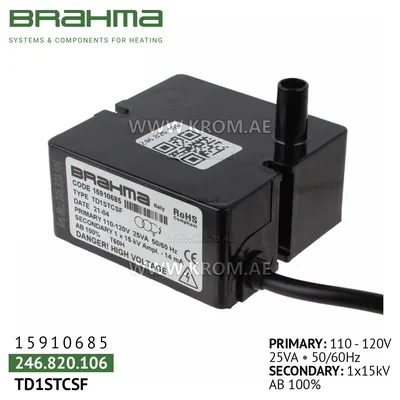

Brahma 15910685 TD1STCSF ignition transformer
The BRAHMA TD1STCSF 15910685 ignition transformers are characterized by extremely compact overall dimensions. All types of BRAHMA TD1STCSF 15910685 ignition units can be supplied with a filter to reduce electromagnetic interference. In this case, the electronic transformers comply with the requirements of Directive 2004/108/EC without the use of additional external filters. BRAHMA TD1STCSF 15910685 transformers also have versions for non-permanent operation (50% duty cycle in 2 minutes). Specifications The possibility of delivery with an integrated EMC filter; 100% duty cycle; Light weight and compact size; High efficiency and ignition power; Low power consumption; Single or double-pin high voltage output; Various mounting and connecting systems; Built-in short circuit protection; In gas and liquid fuel burners, the safety of ignition transformers depends on the controller. Technical information Number of contacts: 1 Peak output voltage kV: 15 Peak current mA: 45 Frequency of output voltage kHz (1): 6 Frequency of output voltage kHz (2): 10 VA Energy Consumption: 25 Ignition cable connectors: plug-in Ø4 mm Supply voltage: 220-240 V 50/60 Hz On request: 110-120 V 50/60 Hz Duty cycle: 100 % Operating temperature: -10 ... +60 °C Protection: IP00 Recommended electrode spacing (spark distance): 3-5 mm Max. length of ignition cable: 1.5 m Standard power cable length: 560mm Weight: about 360 g. Appointment BRAHMA TD1STCSF 15910685 transformers with ignition cable are widely used in gas burners and burners for light and heavy types of liquid fuels. Their use covers a wide range from domestic and commercial installations to industrial enterprises. These transformers provide efficient ignition, ensuring stable operation in various conditions and providing the necessary high power. The principle of operation The principle of operation of BRAHMA TD1STCSF 15910685 transformers is based on the use of a high-frequency electronic generator. The voltage generated by the generator is increased due to the use of a BRAHMA TD1STCSF 15910685 high-voltage transformer with a ferritic core, which allows you to achieve output values up to 15 kV. This mechanism ensures efficient ignition and stable operation of the device, especially in gas burners and systems with light and heavy types of liquid fuels. Permissions BRAHMA TD1STCSF 15910685 transformers comply with the requirements of the "Low Voltage Directive (LVD) 73/23/EEC" directive, as they have an IMQ resolution and comply with the standards EN 61558-1:1997 + A1:1998 +A11:2003 and EN 61558-2-3:2000. This confirmation ensures that these transformers meet safety standards for low voltage use, ensuring reliability and safety in accordance with the specified standards. Construction The principle of operation based on the use of a high-frequency electronic generator made it possible to create a device of compact dimensions and low weight, but with high ignition power. The electronic circuit and the transformer with a ferritic core are treated with a special compound with high thermal conductivity and a special expansion coefficient, which provides protection against temperature fluctuations and overloads caused by prolonged operation. The built-in varistor protects the device from possible power surges in the power supply network. These transformers are supplied in different versions: with different number and position of contacts, types of high voltage connections and power cable, with/without an EMC (electromagnetic) filter.
