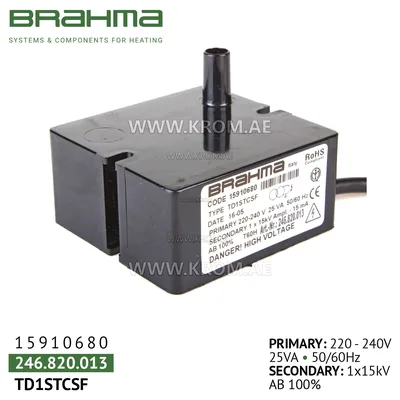

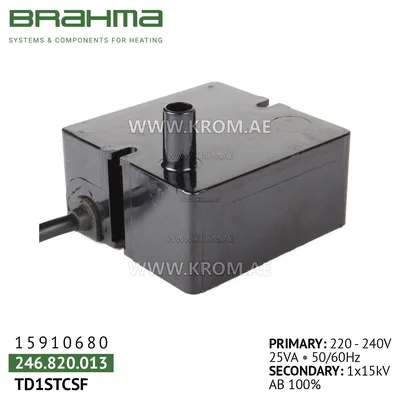

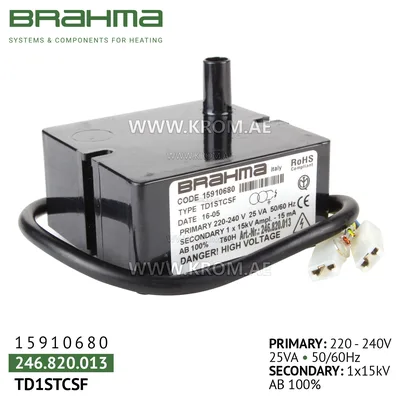

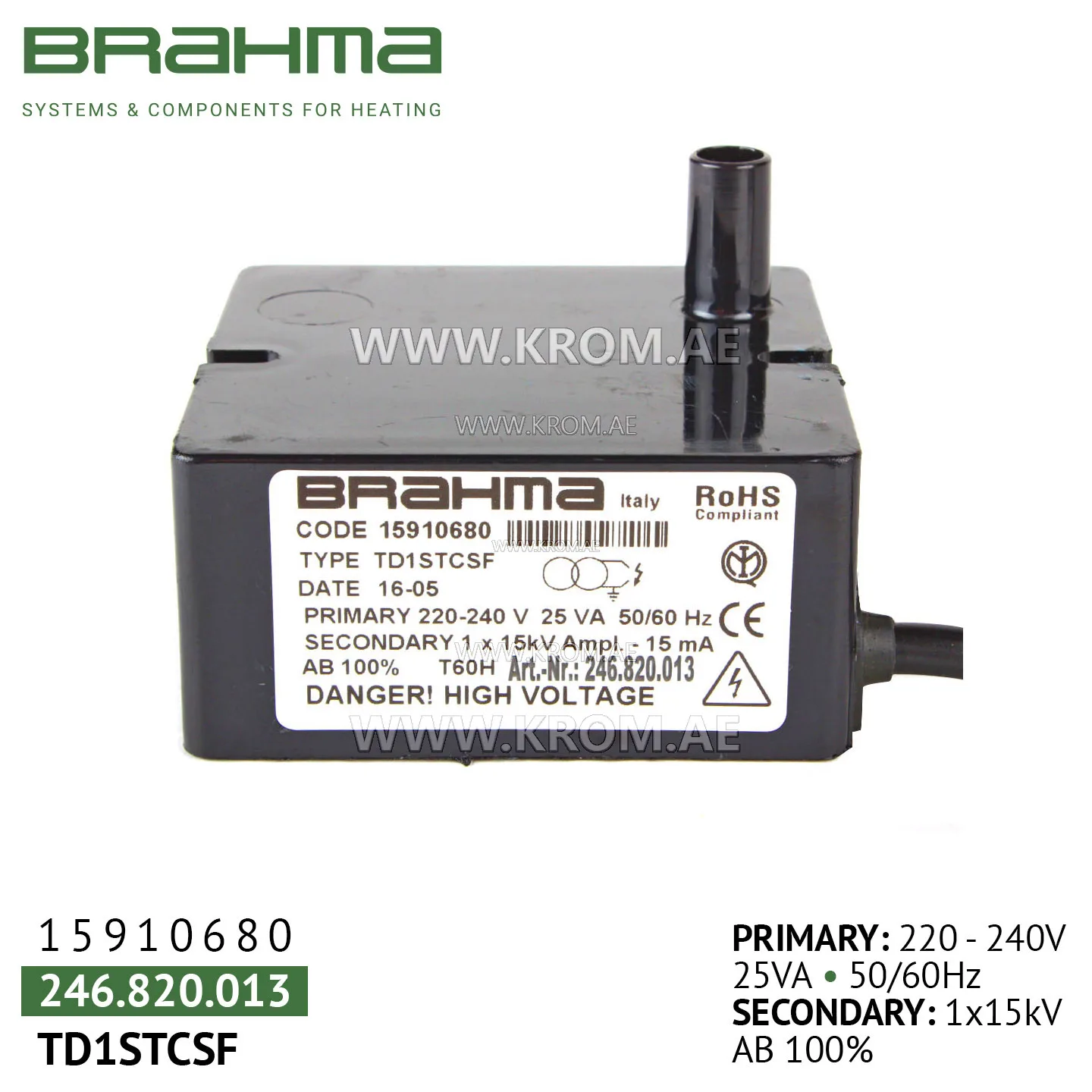

Brahma 15910680 TD1STCSF ignition transformer

The BRAHMA TD1STCSF 15910680 ignition units are characterized by extremely compact dimensions and are widely used in gas burners, as well as burners for light and heavy liquid fuels in home, commercial and industrial installations. They operate on the basis of a high-frequency electronic generator, where the voltage is increased by using a high-voltage transformer with a ferritic core, reaching output values up to 15 kV. BRAHMA TD1STCSF transformer for Master 4110.609 В35CED, В70CED, B100CED, B150CED before 2011 air heaters. All types of BRAHMA TD1STCSF 15910680 transformers with ignition cable can be equipped with a filter to reduce electromagnetic interference. In the presence of such a filter, the electronic transformers comply with the requirements of Directive 2004/108/EC, and no additional external filters are required. The BRAHMA TD1STCSF 15910680 transformers are also available in versions for continuous operation with a 50% duty cycle for 2 minutes. Specifications: Can be supplied with a built-in EMC filter to reduce electromagnetic interference; 100% duty cycle operation, ensuring continuous efficiency; Light weight and compact size for easy installation; High efficiency and ignition power, ensuring reliable and efficient burner start-up; Low power consumption, contributing to energy saving and resource saving; The ability to select a single or two-pin high voltage output, depending on the requirements of a particular application; Various mounting and connection system options to adapt to different configurations; Built-in short circuit protection, ensuring safe operation; In gas and liquid fuel burners, the safety of ignition transformers is controlled by a controller, ensuring reliable and safe operation.
