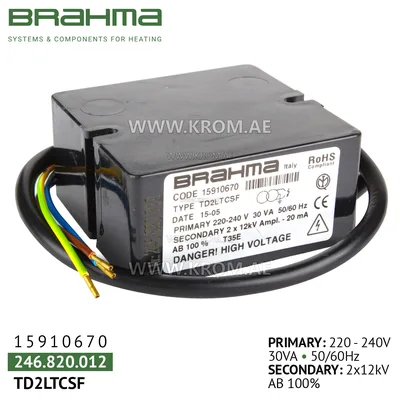

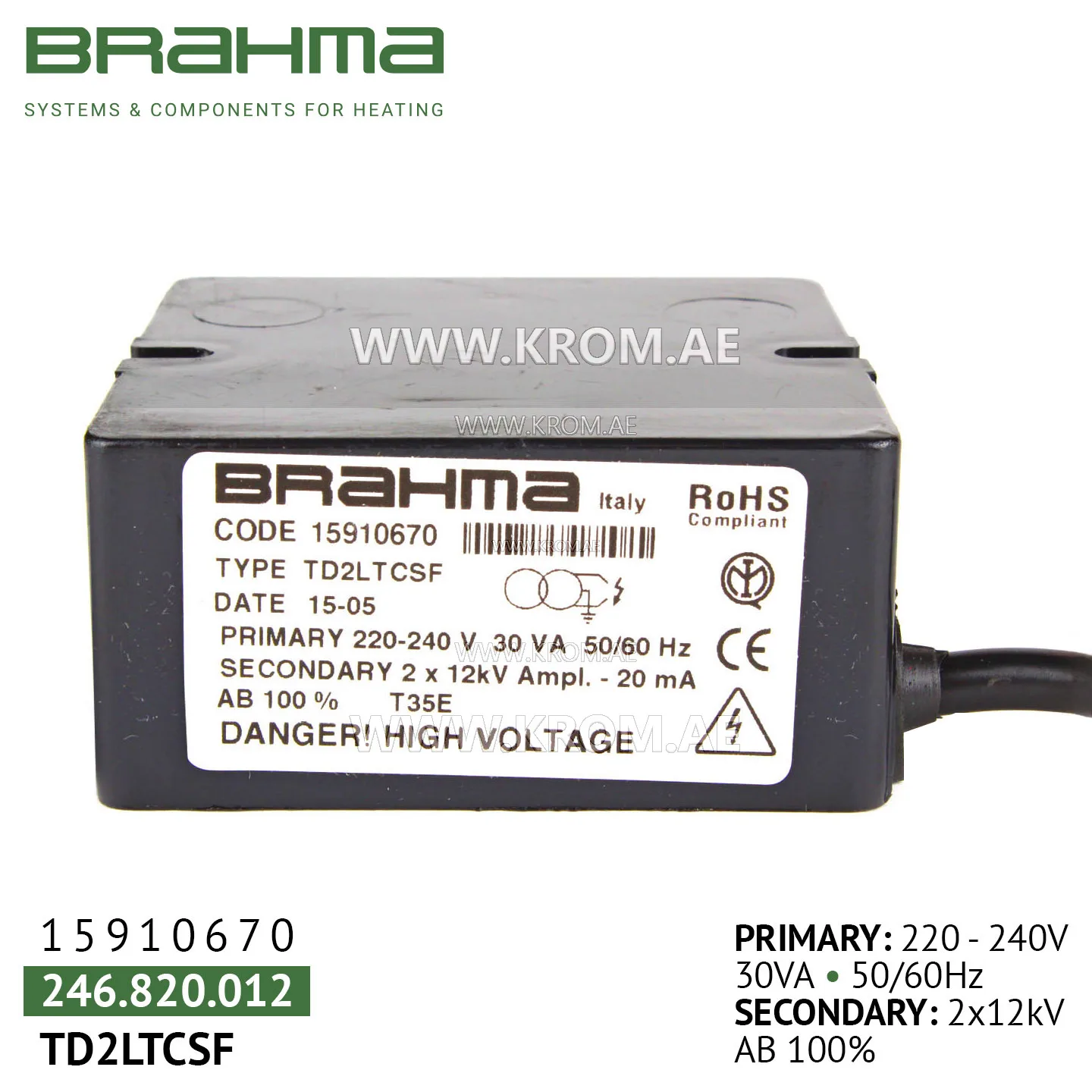

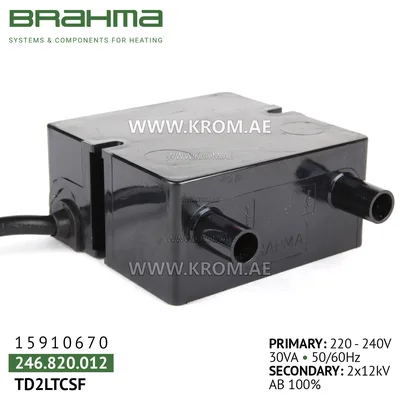

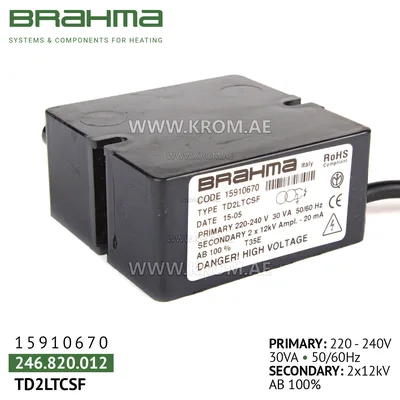

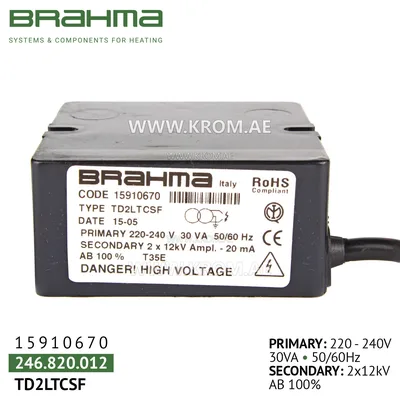

Brahma 15910670 TD2LTCSF ignition transformer

The BRAHMA TD2LTСSF 15910670 ignition transformers are characterized by extremely compact overall dimensions. They are used in gas burners, burners for light and heavy types of liquid fuels in both domestic and commercial as well as industrial installations. The principle of operation is based on a high-frequency electronic generator; the voltage produced by it increases due to the use of an ignition unit with a ferritic core, reaching output values up to 15 kV. All types of BRAHMA TD2LTСSF 15910670 transformers with ignition cable can be supplied with a filter to reduce electromagnetic interference. In this case, the electronic transformers comply with the requirements of Directive 2004/108/EC without the use of additional external filters. BRAHMA TD2LTСSF 15910670 transformers also have versions for non-permanent operation (50% duty cycle in 2 minutes). Specifications: The possibility of delivery with an integrated EMC filter; 100% duty cycle; Light weight and compact size; High efficiency and ignition power; Low power consumption; Single or double-pin high voltage output; Various mounting and connecting systems; Built-in short circuit protection; In gas and liquid fuel burners, the safety of ignition transformers depends on the controller. Permissions: BRAHMA TD2LTСSF 15910670 transformers meet the requirements of the Low Voltage Directive (LVD) 73/23/EEC, because they have an IMQ resolution in accordance with the standards EN 61558-1:1997 + A1:1998 +A11:2003 and EN 61558-2-3:2000. Technical information: Number of contacts: 2; Peak output voltage: 2*12 kV; Peak current: 55 mA; Rated current: 20 mA; Ignition cable connectors: plug-in Ø4 mm; Output voltage frequency (1): 8.5 kHz; Output voltage frequency (2): 12 kHz; Power Consumption: 30 VA.
