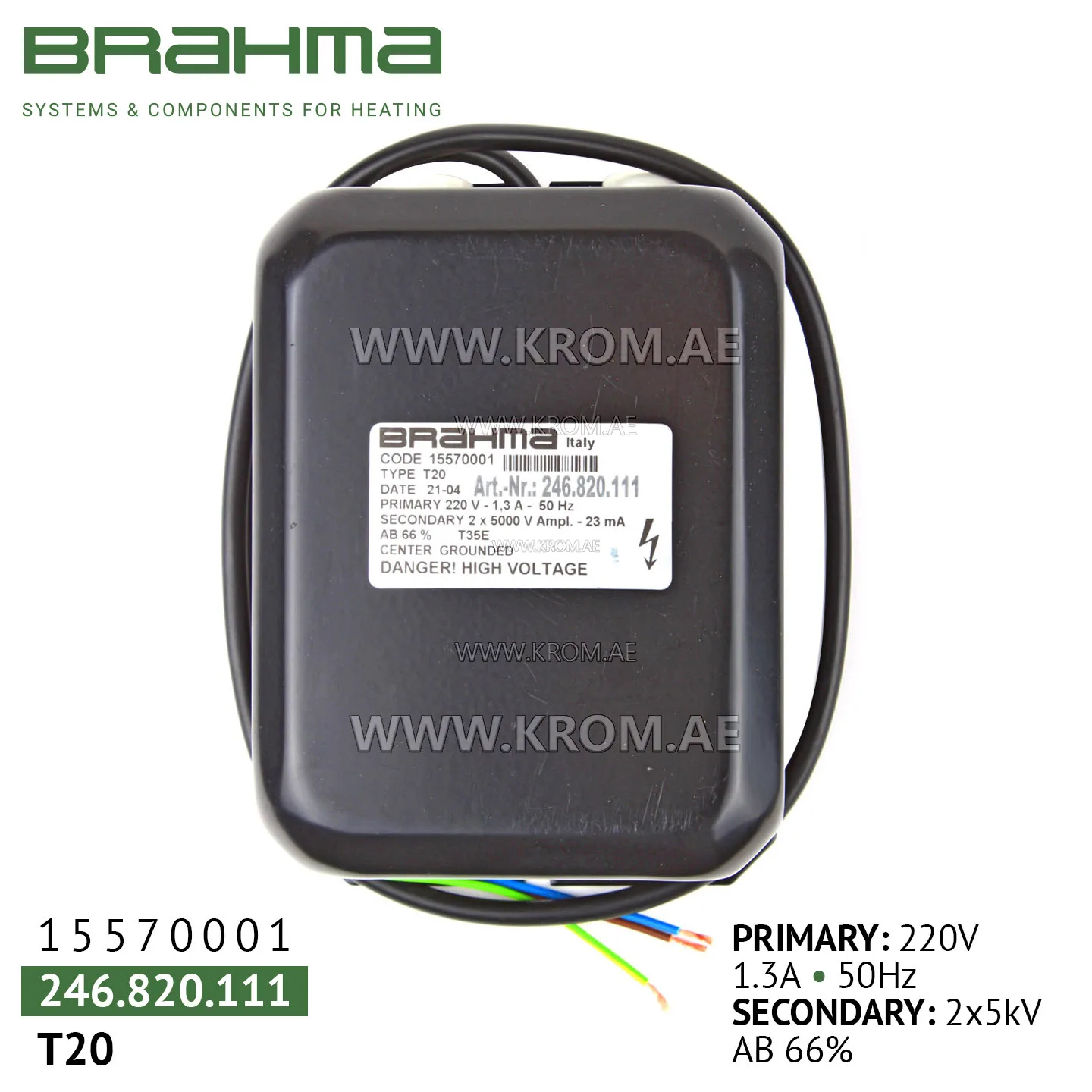

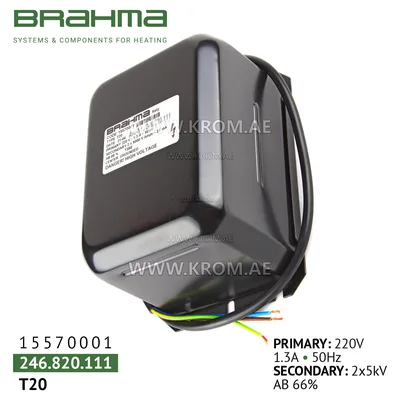

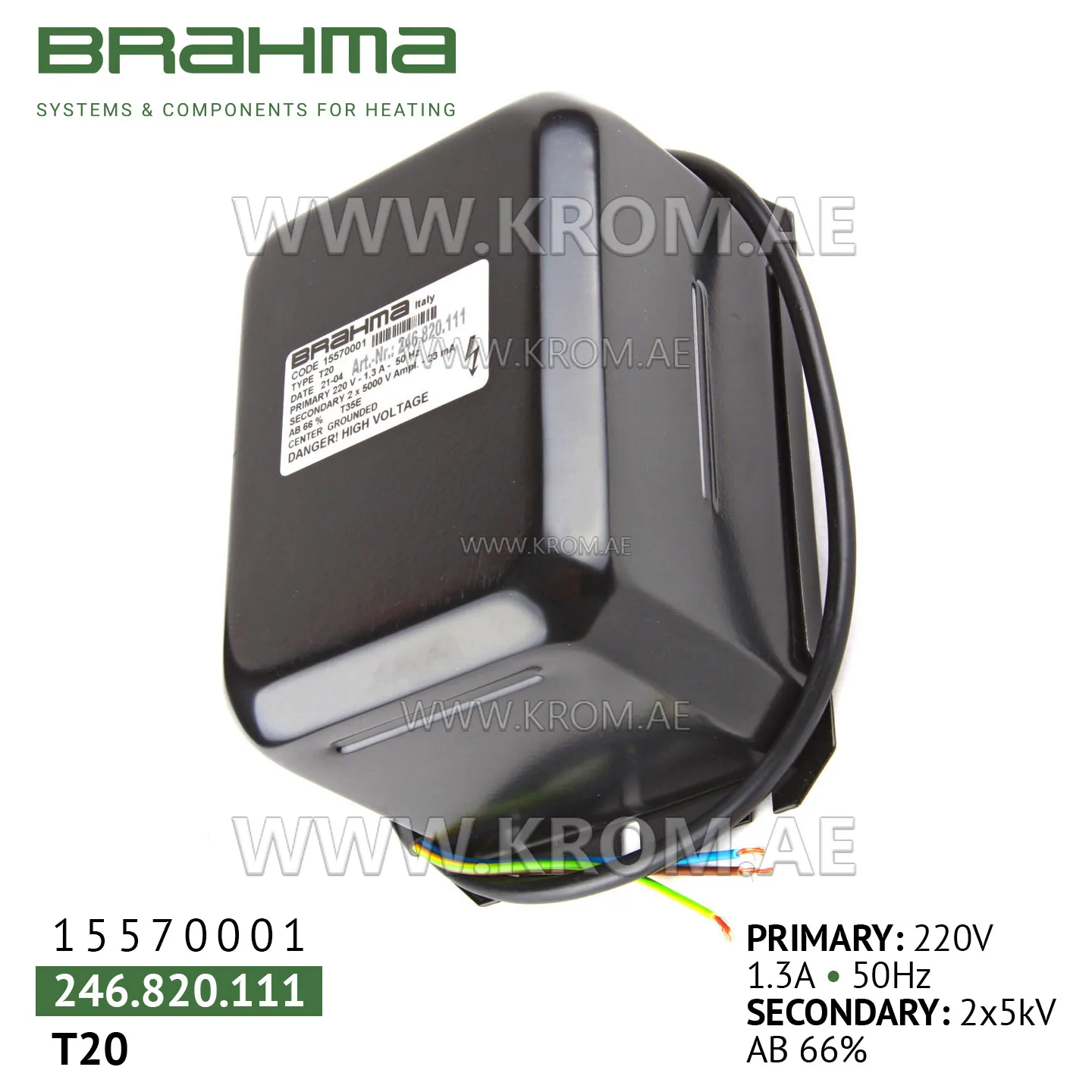

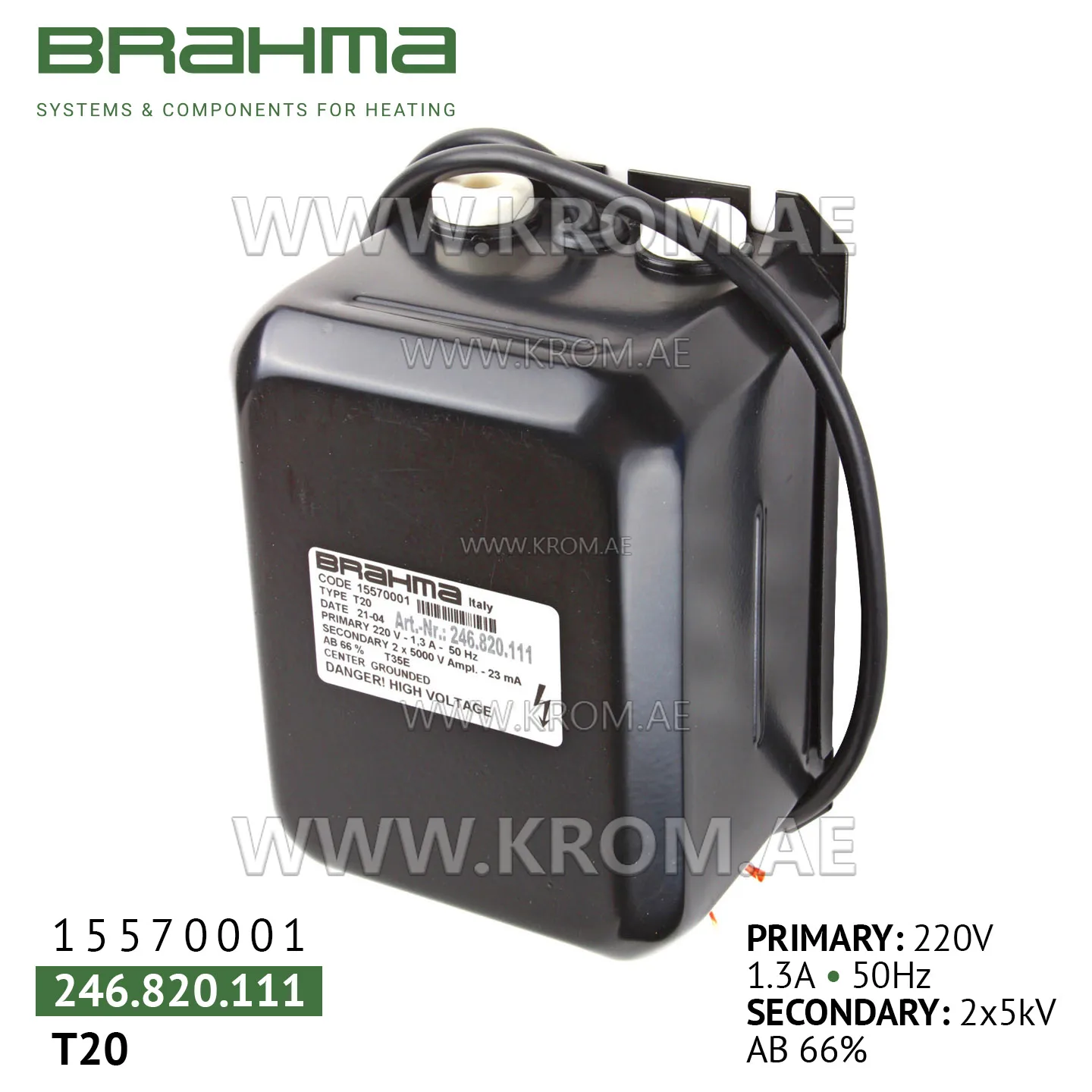

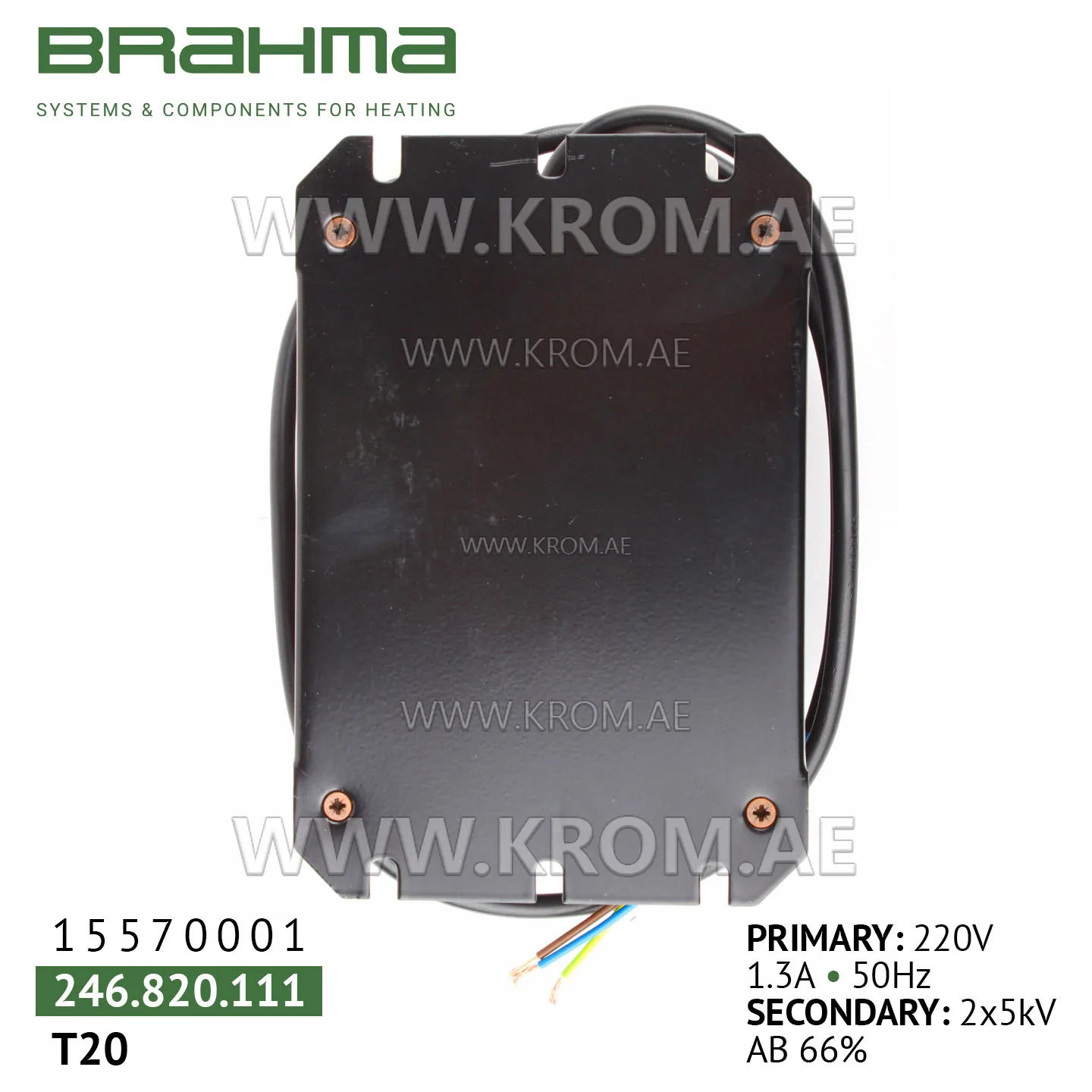

Brahma 15570001 T20 ignition transformer

The ignition units BRAHMA T20 15570001 have the same overall dimensions, but different electrical characteristics and mounting systems. The BRAHMA T20 15570001 transformers are suitable for high thermal power burners or pressure burners for light or heavy oil, also subject to a large number of restarts (steam boilers, kitchen stoves, ...) Features - various connection and mounting systems; - high discharge power; - high efficiency and ignition power. Technical data Power Supply: 220V Current frequency: 50 Hz Current strength: 1.3A Number of outputs: 2 Ignition voltage: 5 kV Duration of ED(DU) operation: 66 % Ignition current: 23 mA Length of the power supply cable: 700 mm Power consumption: 285 VA Dust and moisture protection class: IP 00 Ignition cable connectors: screw Ø2.5 mm Weight: 3.2 kg Dimensions: 10.1x8x13.9 cm Construction The BRAHMA T20 15570001 transformer with ignition cable consists of column type transformers, i.e. ignition transformers equipped with 2 primary windings and 2 secondary windings. All types are insulated with a special separator with a high degree of insulation. High-voltage insulation is achieved using a special type of polyester resin cast in a vacuum. The case is made of pressed metal coated with enamel. Each transformer is indicated by the letter T (transformer), one or more numbers indicating the model, and sometimes some letters referring to a specific mounting system. If the mounting system used is standard, the corresponding letter of recommendation is not indicated in the part description. For example, the part designation T8 refers to a transformer with a standard mounting system, whereas the part designation T8/G corresponds to a transformer T8 with a different mounting system. High-voltage transformers BRAHMA T20 15570001 may have the same electrical characteristics, but different mounting systems, or vice versa.
