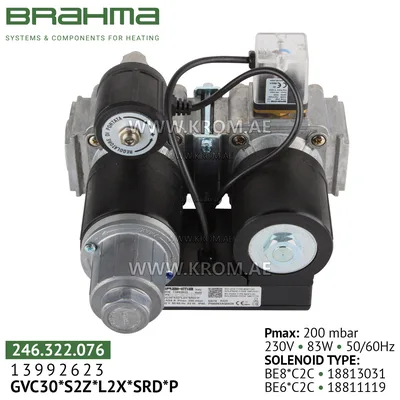

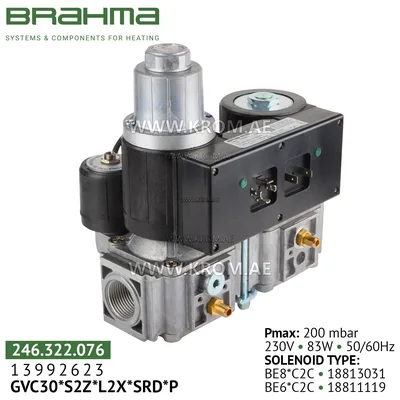

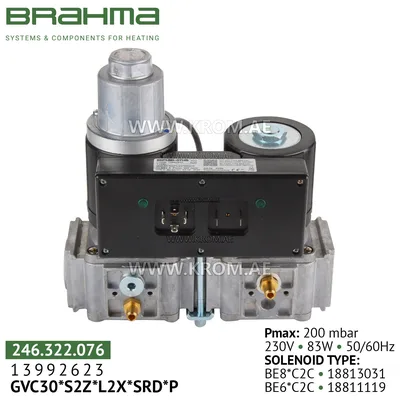

Brahma 13992623 GVC30*S2Z*L2X*SRD*P gas valve

BRAHMA GVC30*S2Z*L2X*SRD*P 13992623 gas valves can be equipped with a bypass valve and/or a gas pressure sensor with a fixed or adjustable setting value, as well as an inlet pressure regulator to adjust the gas pressure and keep it constant. The electrical connections between the system components are made using a printed circuit board placed in a plastic case. The valve system is electrically connected to the control unit using a four-pin MPM connector, providing a very simple connection in any application. The presence of voltage is indicated by a signal LED, useful during installation and maintenance. Technical specifications Maximum overpressure: 200 mbar Input connection: Rp 1" Output connection: Rp 1" Power supply: 230 V Ambient operating temperature: -10 to +60 °C Maximum opening time: 1 sec Maximum closing time: 1 sec Power: 83W Solenoid valves V1 and V2: Class A Dust and moisture protection class: IP 40 Connection type: DIN plug Weight: 0.592 kg Dimensions: 18.7 x 22 x 22.5 cm Installation Comply with relevant national and European standards (e.g. EN60335-1) regarding electrical safety. Assemble the BRAHMA GVC30*S2Z*L2X*SRD*P 13992623 gas solenoid valve for installation so that the arrow on the valve body points in the same direction as the fuel flow. When assembling the BRAHMA GVC30*S2Z*L2X*SRD*P 13992623 gas regulator on the installation pipeline, avoid tightening the shell, always use a hexagonal wrench on the valve body. Make sure that no foreign objects have entered the body of the BRAHMA GVC30*S2Z*L2X*SRD*P 13992623 gas valve. Ensure that the maximum fuel supply pressure never exceeds the value indicated on the product label.
