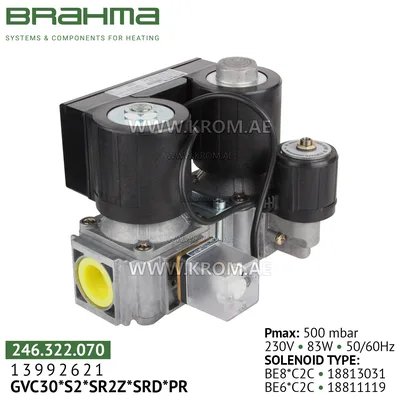

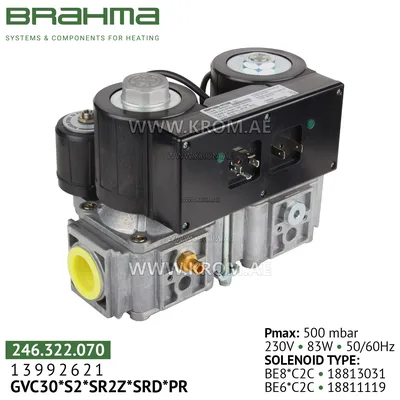

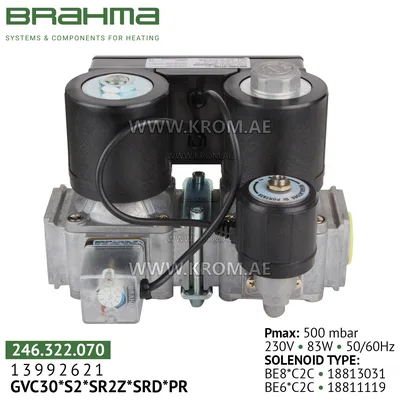

Brahma 13992621 GVC30*S2*SR2Z*SRD*PR gas valve
BRAHMA GVC30*S2*SR2Z*SRD*PR 13992621 gas valves provide a reliable and efficient solution for regulating gas flow in various applications. Features 1. Bypass valve and pressure sensor: - BRAHMA GVC30*S2*SR2Z*SRD*PR 13992621 valves can be equipped with a bypass valve for additional control over the gas flow. - A gas pressure sensor with a fixed or adjustable setting value provides accurate pressure measurement for optimal system operation. 2. Inlet pressure regulator: - The presence of an input pressure regulator allows you to precisely adjust and maintain a constant gas pressure, which is a key element of the efficient operation of the installation. 3. Electrical connections: - The use of a printed circuit board in a plastic case ensures a reliable electrical connection between the system components. 4. Connection system: - The valve system is electrically connected to the control unit using a four-pin MPM connector, providing easy and convenient connection in various applications. 5. Voltage indication: - The presence of voltage is supplied by a signal LED, which is useful during installation and maintenance. Technical specifications Maximum overpressure: 350 mbar Input connection: Rp 1" Output connection: Rp 1" Power supply: 230 V Operating ambient temperature: -10 to +60 °C Maximum opening time: 1 sec Maximum closing time: 1 sec Power: 83W Solenoid valves V1 and V2: Class A Dust and moisture protection class: IP 40 Connection type: DIN plug Dimensions: 18.7 x 22 x 22.5 cm Installation 1. Comply with relevant national and European standards (e.g. EN60335-1) regarding electrical safety. 2. Assemble the BRAHMA GVC30*S2*SR2Z*SRD*PR 13992621 gas solenoid valve for installation so that the arrow on the valve body points in the same direction as the fuel flow. 3. When assembling the BRAHMA GVC30*S2*SR2Z*SRD*PR 13992621 gas regulator on the installation pipeline, avoid tightening the shell, always use a hexagonal wrench on the valve body. 4. Make sure that no foreign objects have entered the body of the BRAHMA GVC30*S2*SR2Z*SRD*PR 13992621 gas valve. 5. Ensure that the maximum fuel supply pressure never exceeds the value indicated on the product label.
