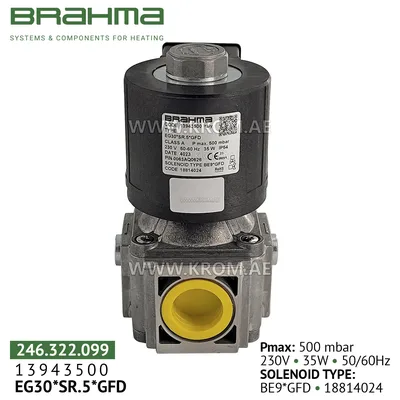

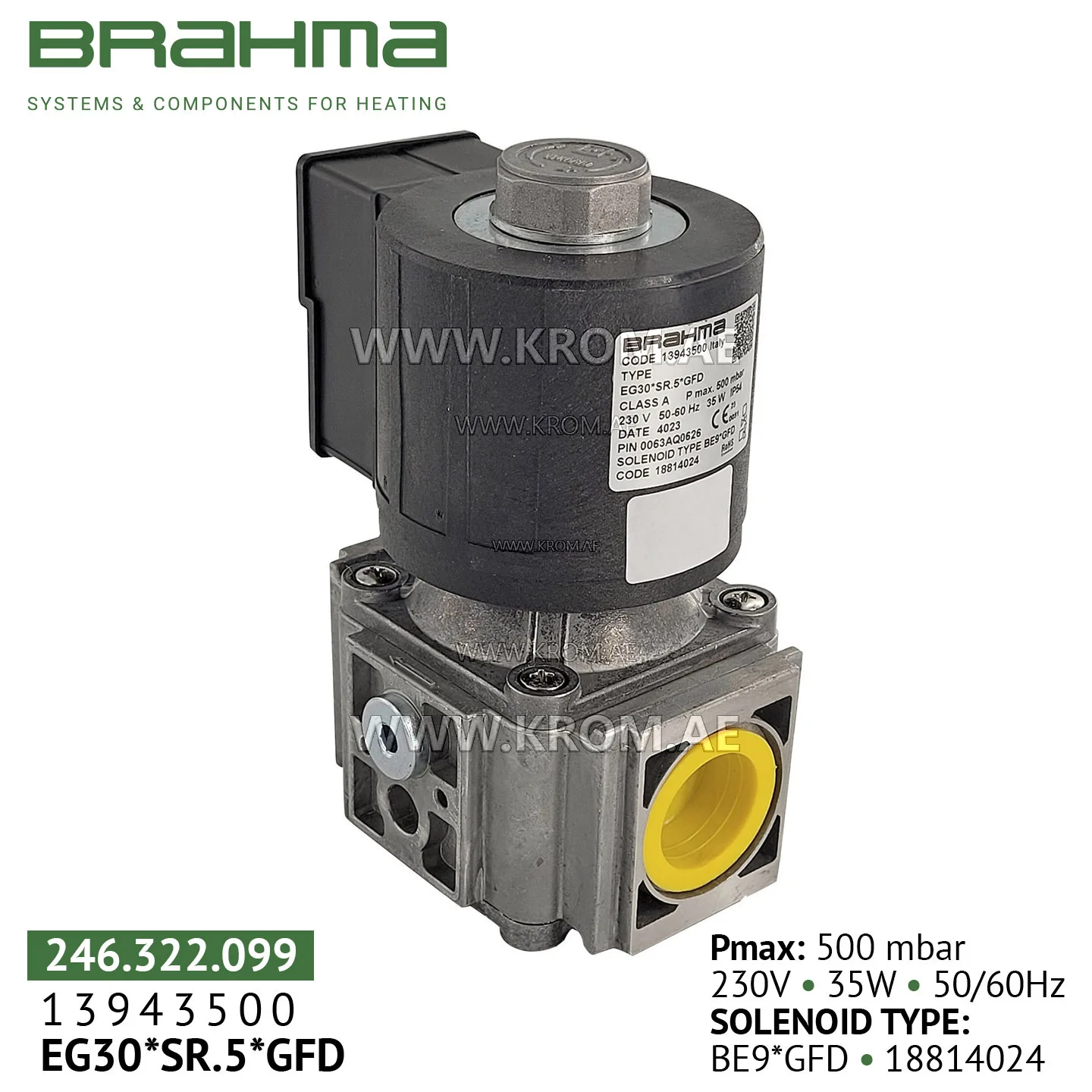

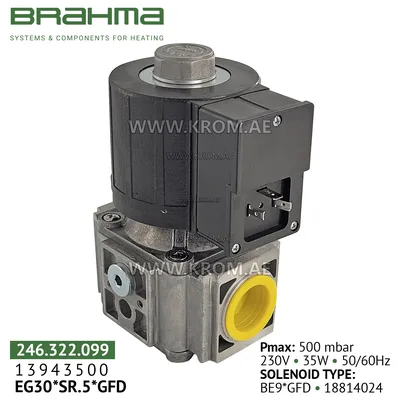

Brahma 13943500 EG30*SR.5*GFD gas valve

Brahma EG30*SR.5*GFD 13943500 gas valves are suitable for civil and industrial use. Technical specifications Class: A Group: 2 Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Degree of protection: GMO IP54 Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Working pressure: 350 mbar Hole diameter: 30mm Weight: 2800 g Voltage: 35 V Installation 1. When installing the Brahma EG30*SR.5*GFD 13943500 valve note that the arrow on the valve body indicates the direction of fuel flow. 2. When mounting to the mounting pipeline, avoid twisting the shell. 3. It is important to prevent foreign objects from entering the Brahma EG30*SR.5*GFD 13943500 valve body. 4. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the valve label.
