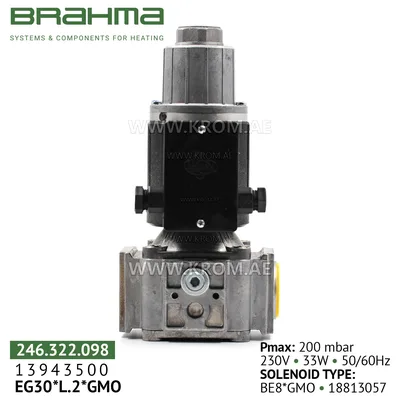

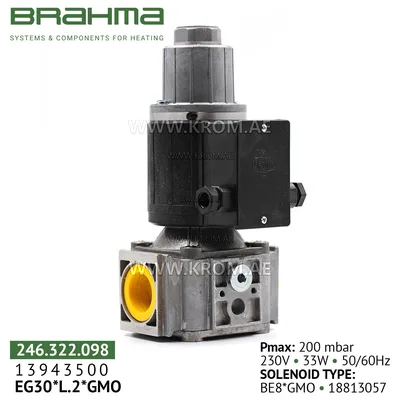

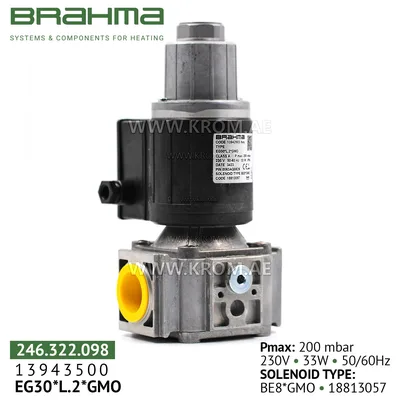

Brahma 13942503 EG30*L2*GMO gas valve

Brahma EG30*L2*GMO 13942503 valves are normally closed type electromagnetic devices designed for civil and industrial use. Specifications Opening modes: Brahma EG30*L2*GMO 13942503 gas valves provide a choice between fast or slow opening, as well as flow control. This provides flexibility and adaptability to the specific requirements of the application. Compatibility and connection: All valve versions can be connected by suitable mounting brackets equipped with bypass solenoid valves and upstream and downstream pressure plugs. This provides convenience during installation and integration into the system. Technical specifications Class: A Group: 2 Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Degree of protection: GMO IP54 Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Working pressure: 200 mbar Hole diameter: 30mm Weight: 2600 g Voltage: 33 V
