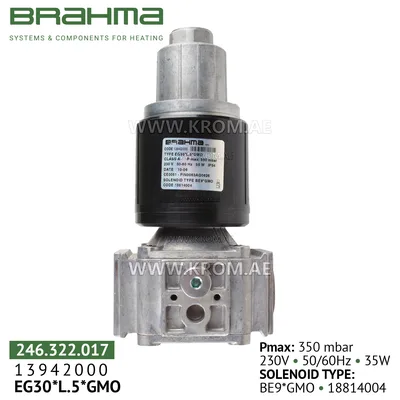

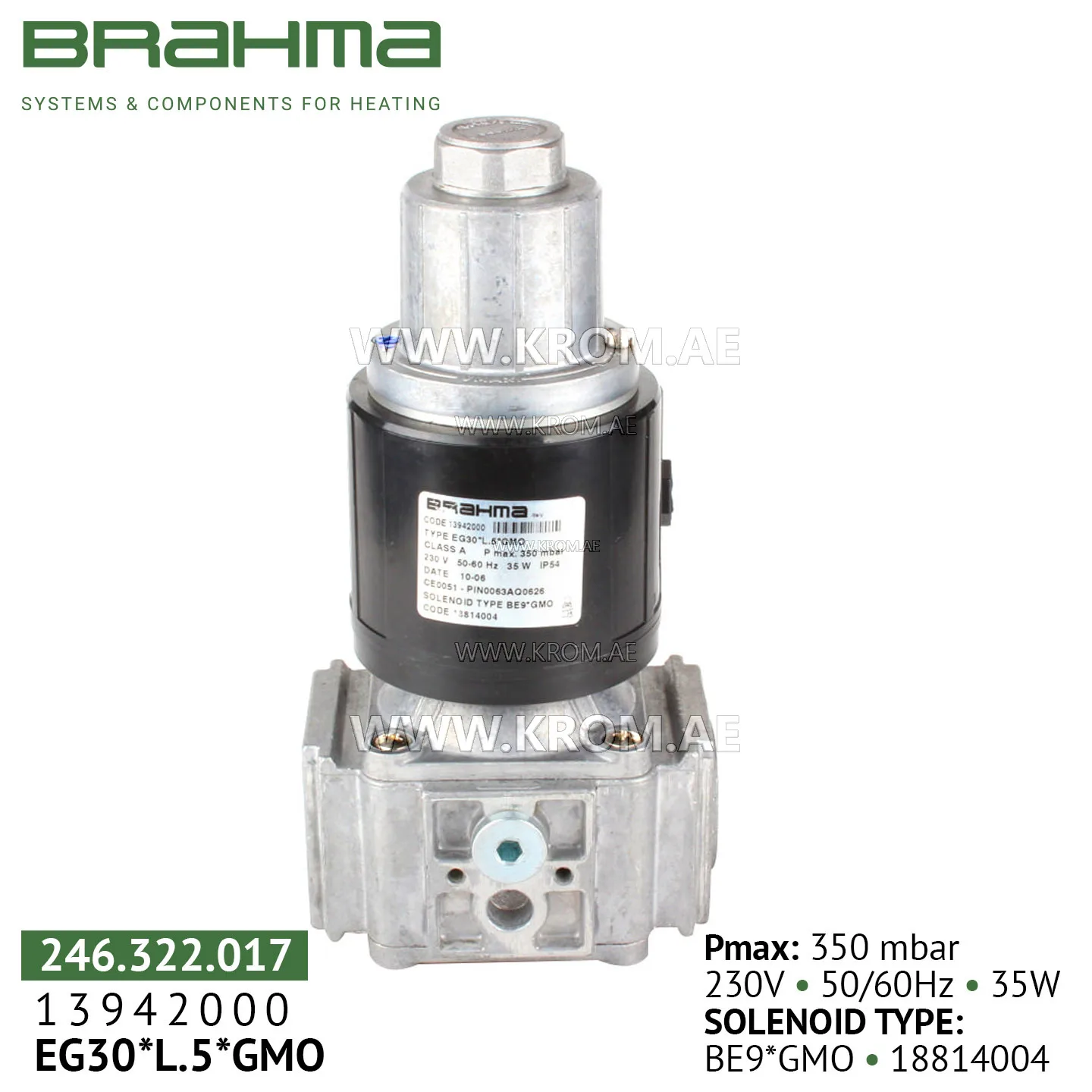

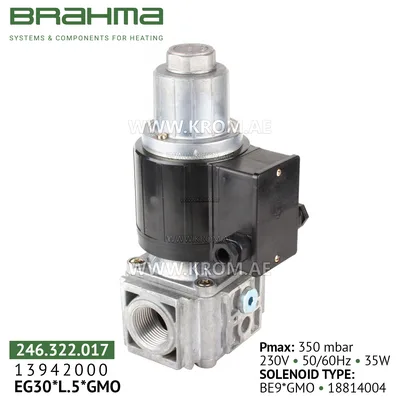

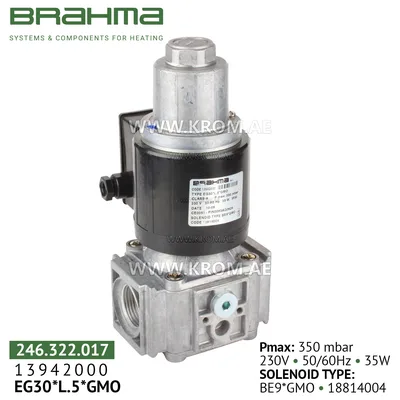

Brahma 13942000 EG30*L.5*GMO gas valve

Brahma EG30*L.5*GMO 13942000 gas valves are of the normally closed type, suitable for civil and industrial applications, powered by alternating or direct current and include an internal rectification circuit, which makes operation as silent as possible. It is possible to install a Brahma EG30*L.5*GMO 13942000 compact gas unit or a slow-opening valve with flow control and initial flow control during quick opening. All versions can be connected by suitable mounting brackets equipped with bypass solenoid valves and upstream and downstream pressure plugs. Brahma EG30*L.5*GMO 13942000 gas control units conforming to the EN 161 standard have a CE type certificate in accordance with European Directives 90/396 and 93/68. Technical specifications Class: A Group: 2 Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Degree of protection: GMO IP54 Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Working pressure: 350 mbar Hole diameter: 30mm Weight: 3050 g Voltage: 33 V Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the Brahma EG30*L.5*GMO 13942000 valve at the installation location so that the arrow on the valve body indicates the direction of fuel flow. When installing the Brahma EG30*L.5*GMO 13942000 gas valve to the mounting pipeline, avoid twisting the shell and always use a hex key to attach to the valve body. Make sure that no foreign objects have entered the valve body of the Brahma EG30*L.5*GMO 13942000. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label.
