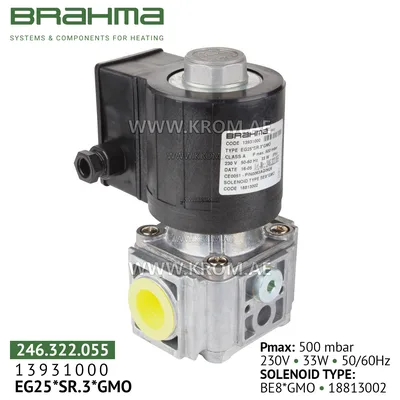

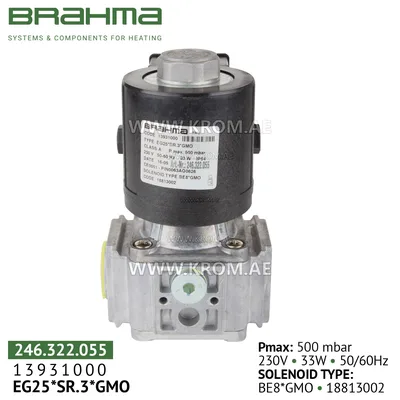

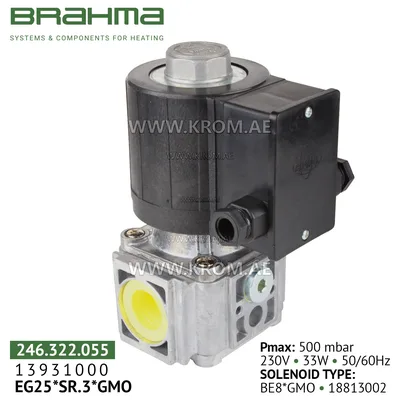

Brahma 13931000 EG25*SR.3*GMO gas valve

Brahma EG25*SR.3*GMO 13931000 are electromagnetic gas valves designed for a wide range of applications in the civil and industrial sectors. Providing silent operation thanks to the internal rectification circuit, these valves combine reliability and efficiency. Features 1. Type and Application: Brahma EG25*SR.3*GMO 13931000 normally closed electromagnetic gas valves designed for use with alternating or direct current. 2. Opening adjustment: Provide a choice between fast or slow opening with gas flow adjustment. 3. Installation and connection: Brahma EG25*SR.3*GMO 13931000 gas solenoid valves can be easily connected to suitable mounting brackets, provided with bypass solenoid valves and pressure plugs. 4. Standards and certification: Brahma EG25*SR.3*GMO 13931000 gas control units comply with the EN 161 standard and have a CE certificate according to European Directives 90/396 and 93/68. These valves represent a state-of-the-art solution for efficient and safe gas flow control while maintaining high standards of quality and compliance. Flow adjustment After removing the top guard, turn it counterclockwise and turn the screw clockwise. To reduce the flow rate, turn in the opposite direction to increase it. Technical specifications Class: A Group: 2 Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Degree of protection: GMO IP54 Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Working pressure: 500 mbar Hole diameter: 25 mm Weight: 2180 g Voltage: 33 V Type of opening: Quick-opening valve Winding type: The power is supplied by alternating current, but the Brahma EG25*SR gas solenoid valve.3*GMO 13931000 operates on direct current thanks to the built-in rectifier bridge Connection Type: Terminal block connection Installation Comply with applicable national and European standards, such as EN60335-1, regarding electrical safety. When installing the Brahma EG25*SR.3*GMO 13931000 valve to the installation site, ensure the correct direction of fuel flow by following the arrow on the valve body. When mounting to the mounting pipeline, avoid twisting the shell and use a hex wrench to attach to the valve body. Make sure that the Brahma EG25*SR.3*GMO 13931000 gas valve body is installed no foreign objects were hit. Also make sure that the maximum fuel inlet pressure never exceeds the values indicated on the label.
