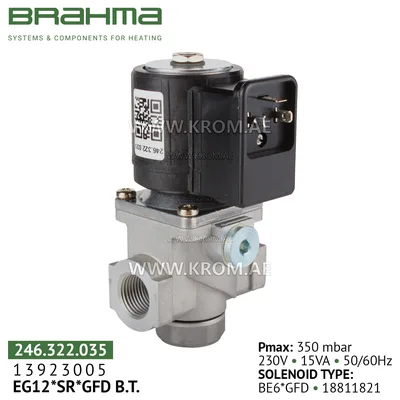

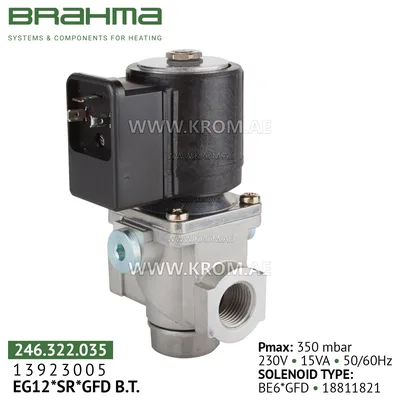

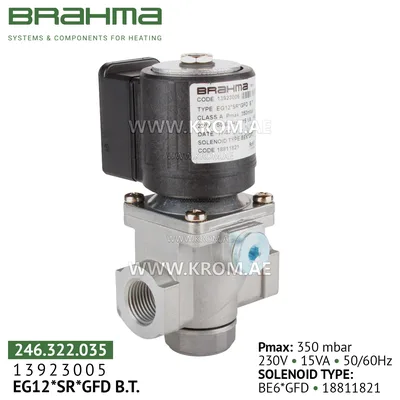

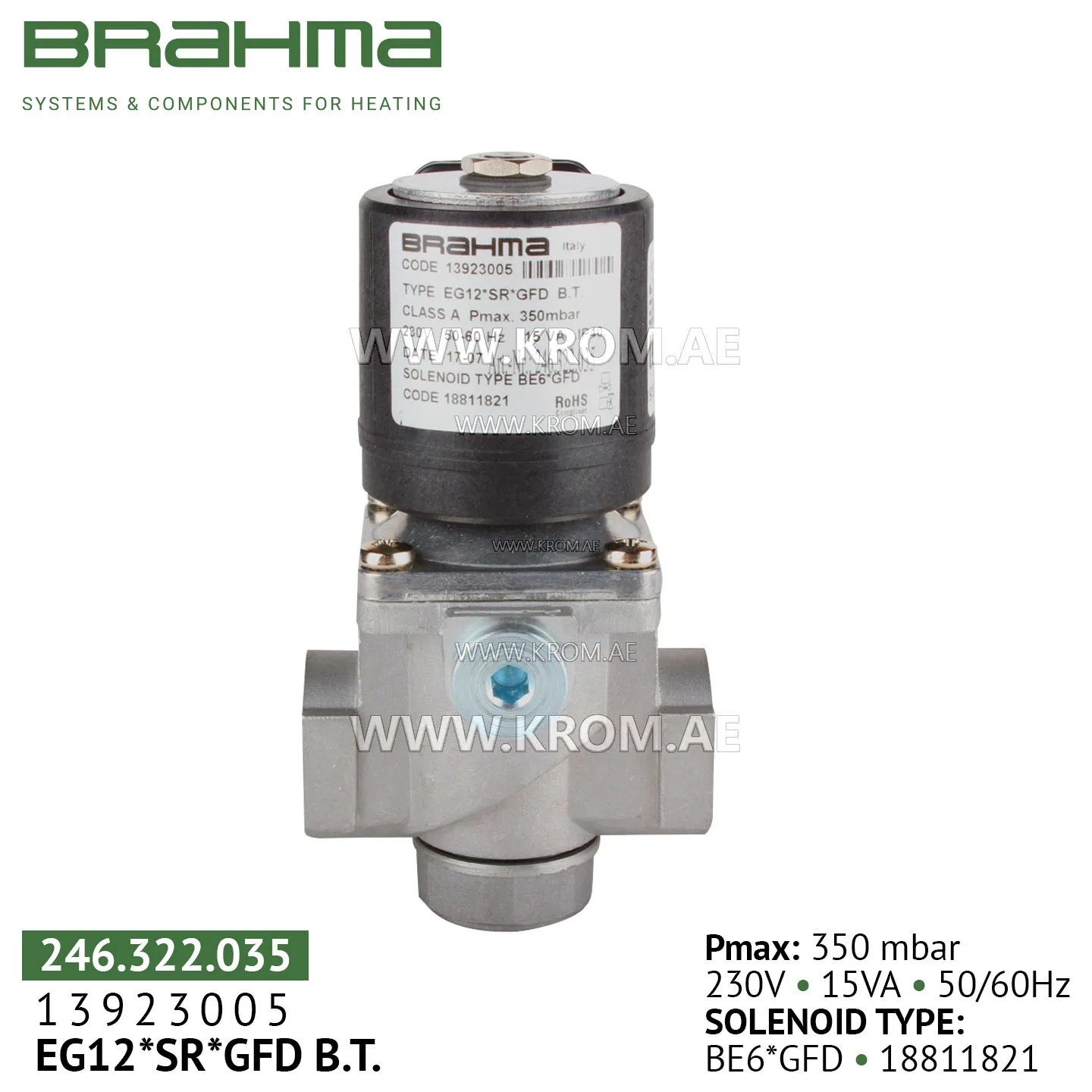

Brahma 13923005 EG12*SR*GFD gas valve
Brahma EG12*SR*GFD 13923005 gas valves are normally closed, suitable for civil and industrial use, operate from alternating or direct current, equipped with a mesh filter at the inlet, preventing the ingress of dirt with a thickness of more than 1 mm. Brahma EG12*SR*GFD 13923005 compact gas units are also equipped with a DC power coil, ensuring silent operation. It is possible to install Brahma EG12*SR*GFD 13923005 valves with fast or slow opening function, flow control and initial flow during fast opening. Adjustment plugs and pressure plugs can be installed at the inlet (all) or at the outlet (with the exception of flow control plugs). Technical specifications Flow control: Flow control equipment Class: A Group: 2 Power supply voltage: 230 VAC / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Gas flow: 7.5 m3/h Working pressure: 500 mbar Nozzle diameter: 15 mm Weight: 800 g Consumption: 20 VA Type of opening: Fast, silent opening valve Winding type: The power is supplied by alternating current, but the valve operates on direct current due to the built-in rectifier bridge Connection type: Quick-start connection for DIN43650-IP65 plug (GFD IP40) Flow control After removing the bottom guard, turn it counterclockwise, turn the nut clockwise to reduce the flow rate; turn in the opposite direction to increase it. Installation 1. Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. 2. Install the valve at the installation location so that the arrow on the gas control unit body Brahma EG12*SR*GFD 13923005 indicates the direction of fuel flow. 3. When mounting the valve to the mounting pipeline, avoid twisting the shell and always use a hex key to install it into the valve body. 4. Make sure that no foreign objects have entered the body of the Brahma EG12*SR*GFD 13923005 gas solenoid valve. 5. Make sure that the max. fuel inlet pressure never exceeds the value indicated on the label.
