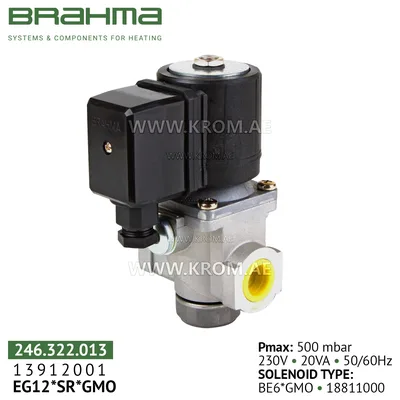

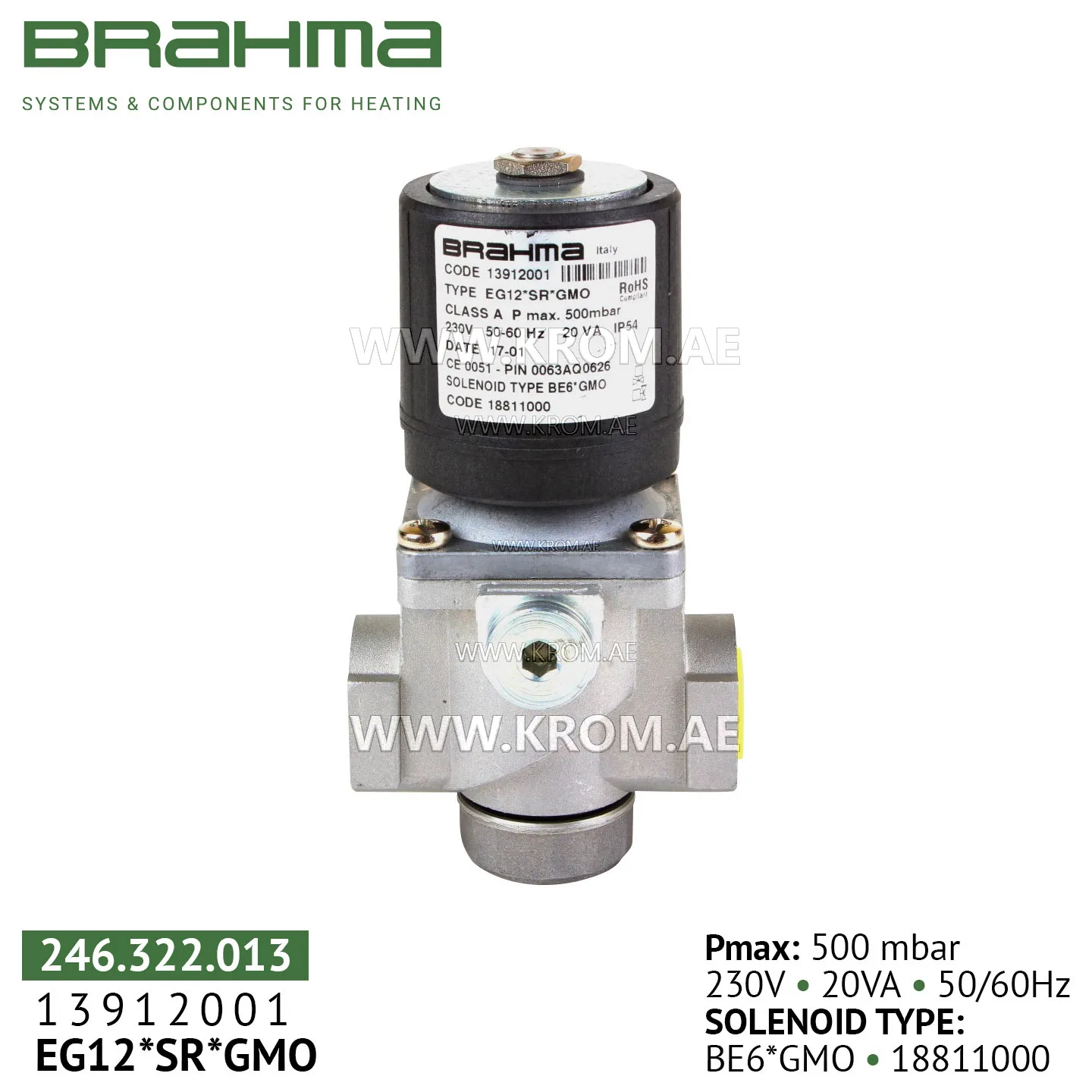

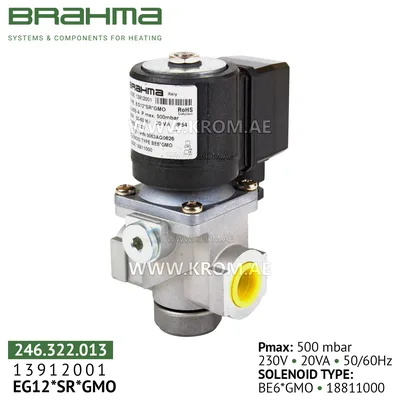

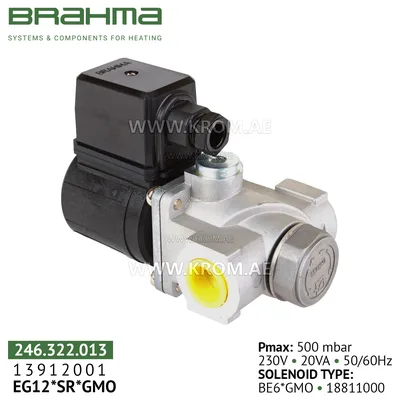

Brahma 13912001 EG12*SR*GMO gas valve
Brahma EG12*SR*GMO 13912001 gas valves are normal closed type devices designed for use in both the civil and industrial sectors. They operate with both alternating and direct current, while having a mesh filter at the inlet, which prevents the penetration of particles larger than 1 mm. Brahma EG12*SR*GMO 13912001 valves are equipped with a coil for direct current supply, which ensures quiet operation. It is possible to install a valve with a quick-opening function or a valve with a slow opening, which is regulated by a special hydraulic shock absorber. At the same time, adjustment plugs are provided to control the flow rate and initial flow during rapid opening, as well as pressure plugs at the inlet (all) or outlet (with the exception of flow control plugs). Technical specifications Gas flow: 7.5 m3/h Working pressure: 500 mbar Nozzle diameter: 15 mm Weight: 800 g Class: A Group: 2 Power supply voltage: 230 VAC / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Consumption: 20 VA Type of opening: Fast, silent opening valve Winding type: The power is supplied by alternating current, but the valve operates on direct current due to the built-in rectifier bridge Connection type: Terminal block connection-IP40 Flow control: Flow control equipment Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the valve at the installation location so that the arrow on the gas control unit body Brahma EG12*SR*GMO 13912001 indicates the direction of fuel flow. When mounting the valve to the mounting pipe, avoid twisting the shell and always use a hex wrench to install it into the valve body. Make sure that no foreign objects have entered the body of the Brahma EG12*SR*GMO 13912001 gas solenoid valve. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label. Standards Brahma EG12*SR*GMO 13912001 gas control blocks conforming to the EN161 standard have a CE type certificate (CE registration number 63AQ0626) in accordance with European Directives 90/396 and 93/68.
