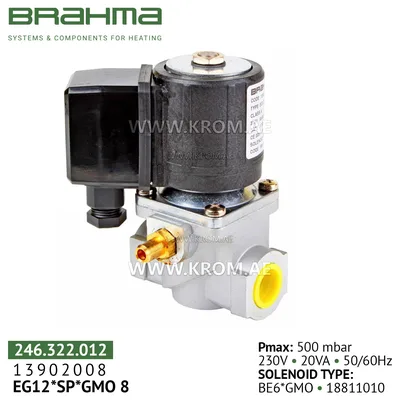

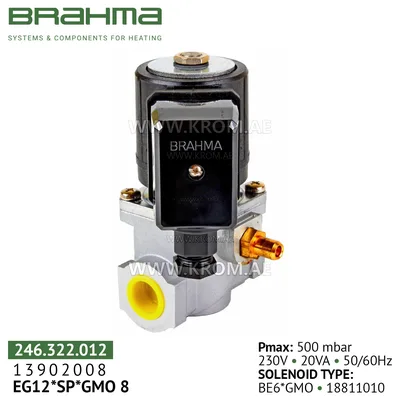

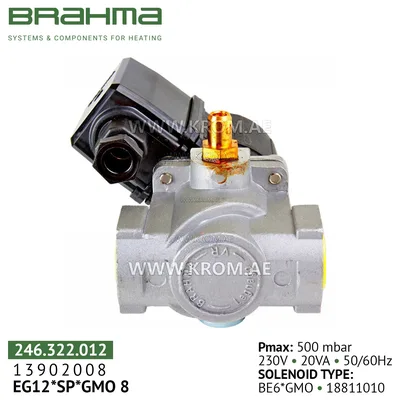

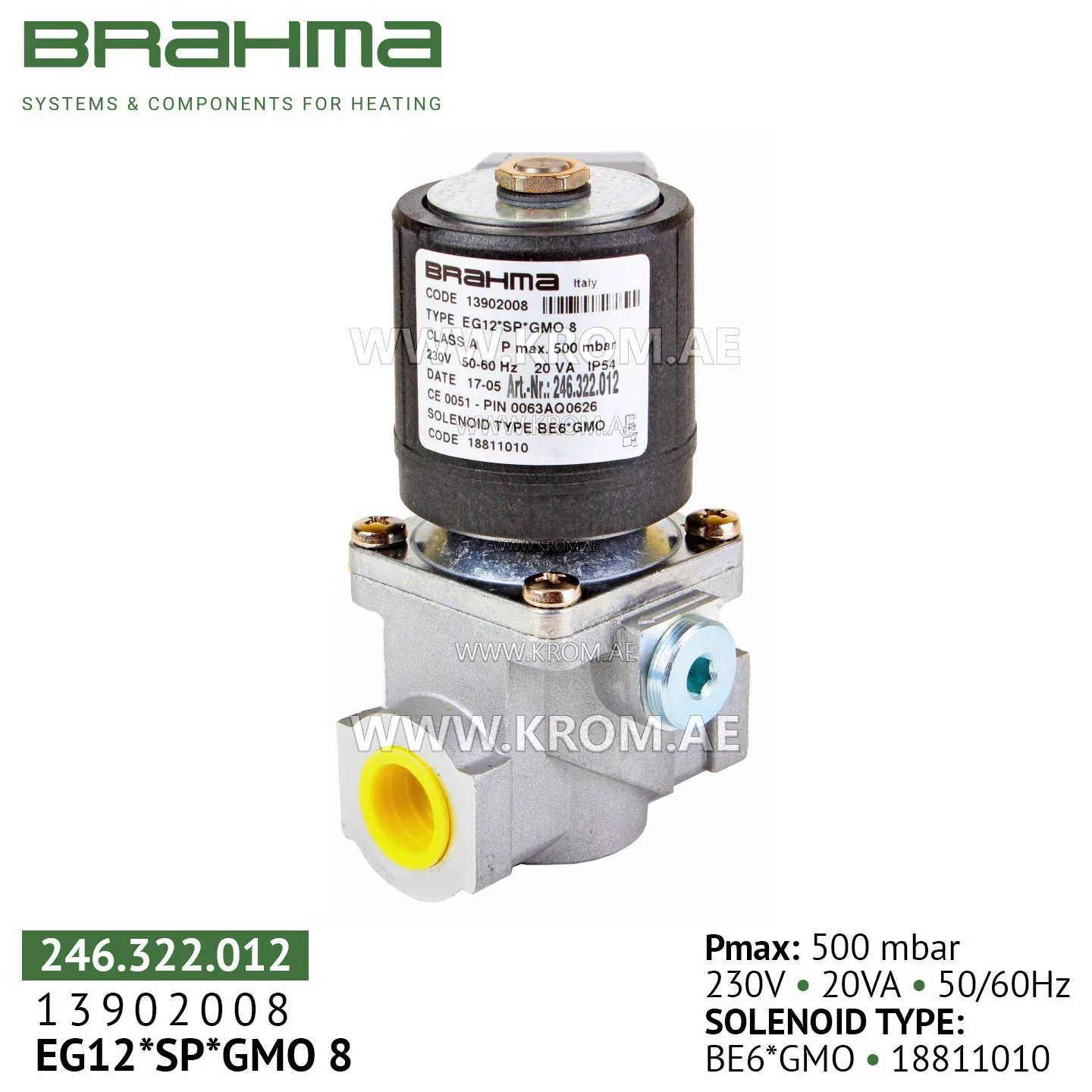

Brahma 13902008 EG12*SP*GMO8 gas valve

Brahma EG12*SP*GMO8 13902008 gas valves are normally closed type devices designed for both civil and industrial use. They can be powered by alternating or direct current and are equipped with a mesh filter at the inlet, which prevents dirt with a thickness of more than 1 mm from entering. Brahma EG12*SP*GMO8 13902008 gas control blocks are equipped with a direct current supply coil, thereby ensuring silent operation. It is possible to install the Brahma EG12*SP*GMO8 13902008 valve with the function of fast opening or slow opening (obtained using a special hydraulic shock absorber). The adjustment of the flow rate and the initial flow of the quick opening is carried out using adjustment plugs, as well as pressure plugs at the inlet (all) or outlet (with the exception of flow control plugs). Brahma EG12*SP*GMO8 13902008 gas solenoid valves comply with the EN161 standard and have a CE type certificate (CE registration number 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Working pressure: 500 mbar Nozzle diameter: 15 mm Weight: 800 g Consumption: 20 VA Type of opening: Fast, silent opening valve Winding type: The power is supplied by alternating current, but the valve operates on direct current due to the built-in rectifier bridge Connection type: Terminal block connection-IP40 Pressure plug: Valve with pressure plug size G1/4” Class: A Group: 2 Power supply voltage: 230 VAC / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Gas flow: 7.5 m3/h Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the valve at the installation location so that the arrow on the valve body Brahma EG12*SP*GMO8 13902008 indicates the direction of fuel flow. When mounting the valve to the mounting pipe, avoid twisting the shell and always use a hex wrench to install it into the valve body. Make sure that no foreign objects have entered the body of the Brahma EG12*SP*GMO8 13902008 gas valve. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label.
