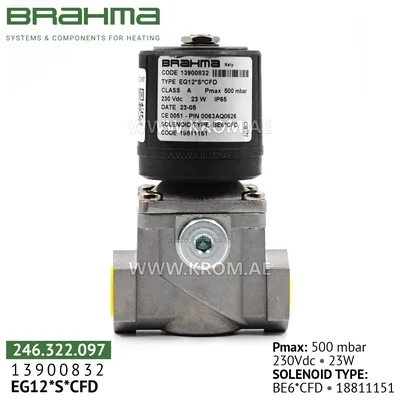

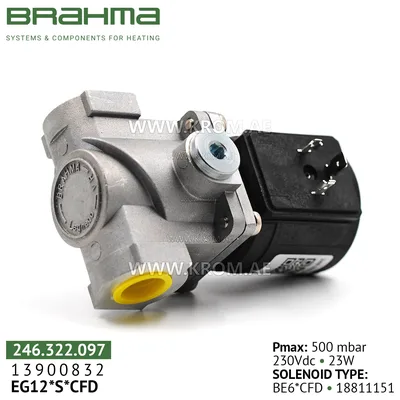

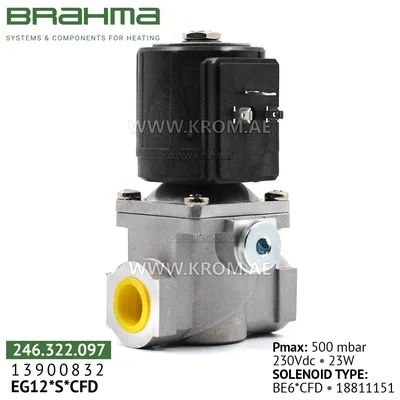

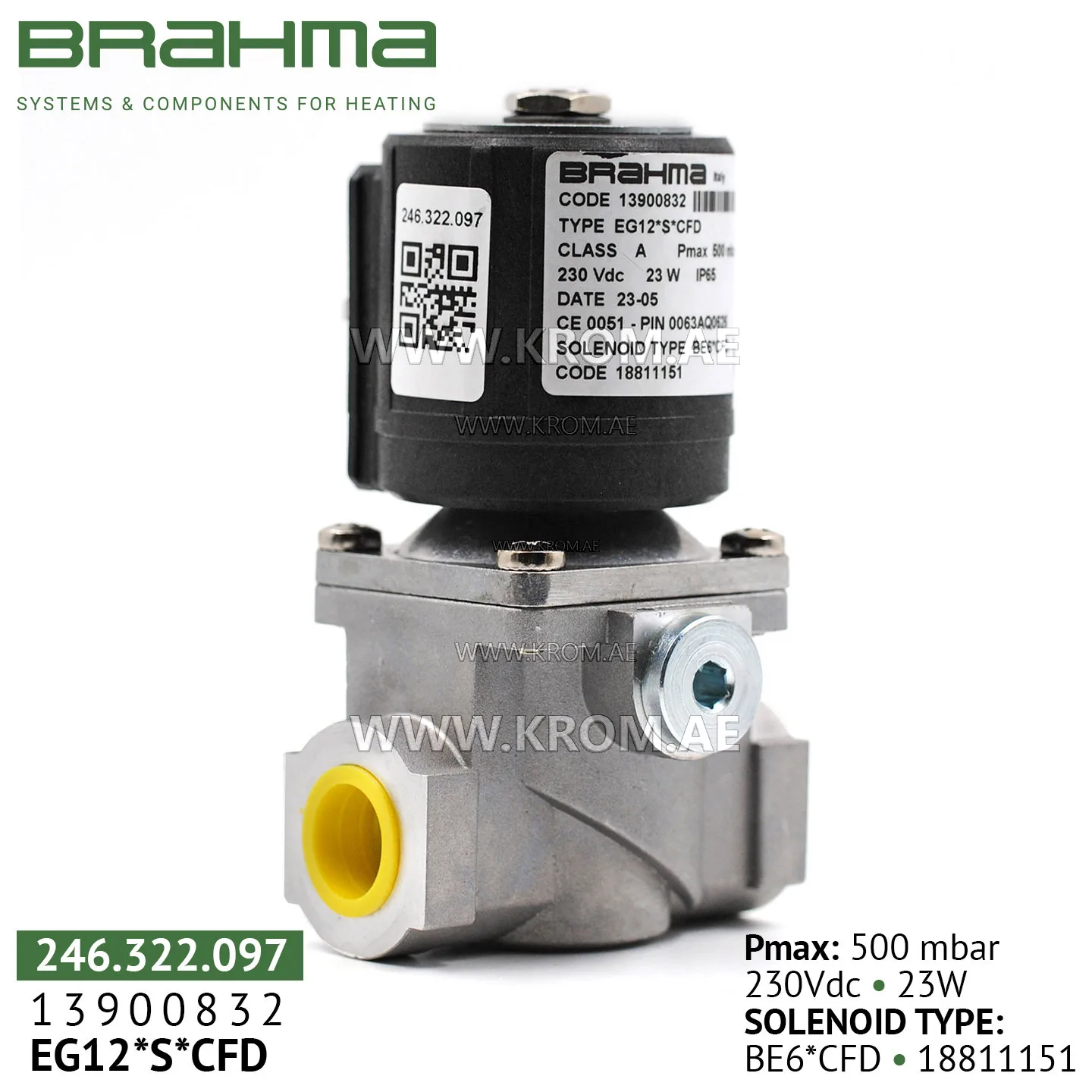

Brahma 13900832 EG12*S*CFD gas valve

Brahma EG12*S*CFD 13900832 gas solenoid valves have a normally closed type, are suitable for civil and industrial applications, are powered by alternating or direct current and are equipped with a mesh filter at the inlet, preventing dirt from entering with a thickness of more than 1 mm. Brahma EG12*S*CFD 13900832 gas valves have a direct current supply coil, which allows you to perform actions as silently as possible. It is possible to install a Brahma EG12*S*CFD 13900832 compact gas unit or a slow-opening valve (obtained using a special hydraulic shock absorber) with flow control and an initial flow of quick-opening adjustment plugs and pressure plugs at the inlet (all) or outlet (except for flow control plugs). Brahma EG12*S*CFD 13900832 gas control blocks conforming to the EN161 standard have a CE type certificate (CE registration number 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Class: A Group: 2 Power supply voltage: 230 VAC / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Gas flow: 7.5 m3/h Working pressure: 500 mbar Nozzle diameter: 15 mm Weight: 800 g Consumption: 20 VA Type of opening: Fast, silent opening valve Winding type: DC power supply Connection type: Quick-on connection for DIN43650-IP65 plug (GFD IP40) Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the valve at the installation location so that the arrow on the valve body Brahma EG12*S*CFD 13900832 indicates the direction of fuel flow. When mounting the valve to the mounting pipe, avoid twisting the shell and always use a hex wrench to install it into the valve body. Make sure that no foreign objects have entered the body of the Brahma EG12*S*CFD 13900832 gas valve. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label.
