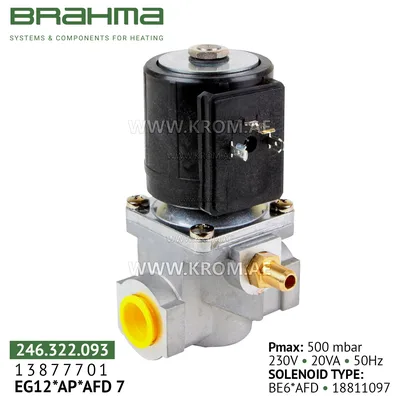

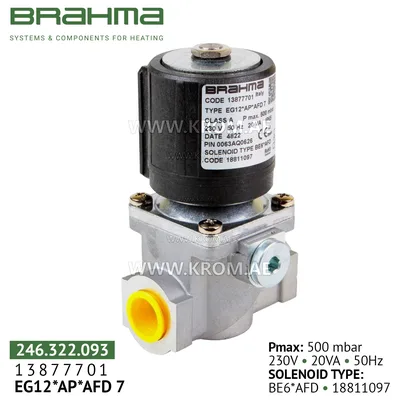

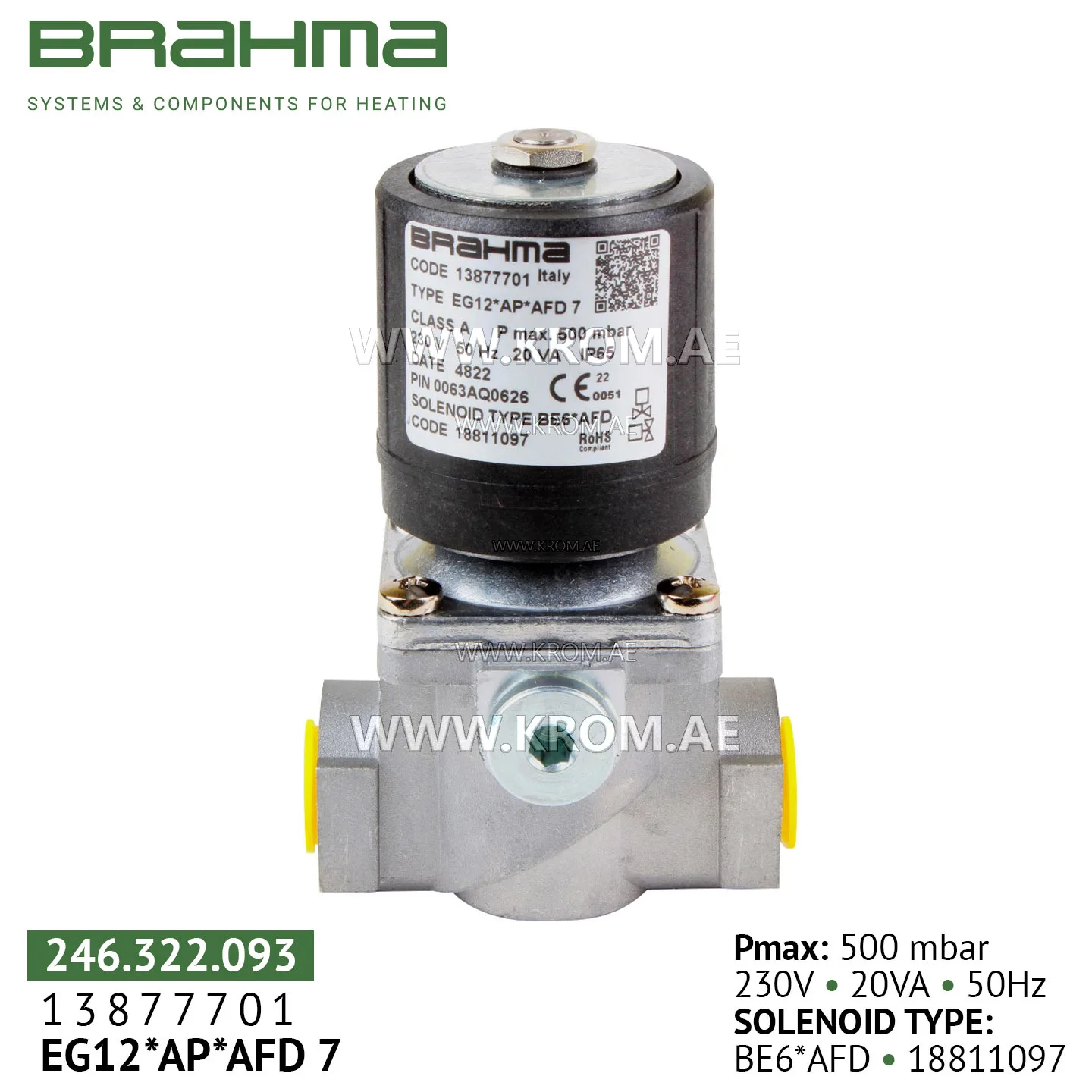

Brahma 13877701 EG12*AP*AFD 7 gas valve

Brahma EG12*AP*AFD7 13877701 gas valves are widely used in both the civil and industrial sectors. They can operate with alternating or direct current and are equipped with a mesh filter at the inlet, preventing the penetration of dirt with a thickness of more than 1 mm. Features Universal application Flexibility in energy supply Filtration system Silent operation Variable opening modes Parameter adjustment Technical specifications Class: A Group: 2 Power supply voltage: 230 VAC / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: 1 s Opening time: 1 sec Installation: vertical and horizontal Body: die-cast aluminum Core mounting: PG9 Gas flow: 7.5 m3/h Working pressure: 500 mbar Nozzle diameter: 15 mm Weight: 800 g Consumption: 20 VA Type of opening: Quick-opening valve Winding type: AC power supply Connection type: Quick-start connection for DIN43650-IP65 plug (GFD IP40) Installation When installing the Brahma EG12*AP*AFD7 13877701 gas valve, electrical safety must be observed in accordance with applicable national and European standards such as EN60335-1. Place the Brahma Brahma EG12*AP*AFD7 13877701 valve so that the arrow on its body indicates the direction of fuel flow, and avoid twisting the shell when mounting to the mounting pipeline. To install the Brahma EG12*AP*AFD7 13877701 gas control block in the housing, use a hex key. Make sure that no foreign objects have entered the gas valve body, and make sure that the maximum pressure at the fuel inlet does not exceed the value indicated on the label.
