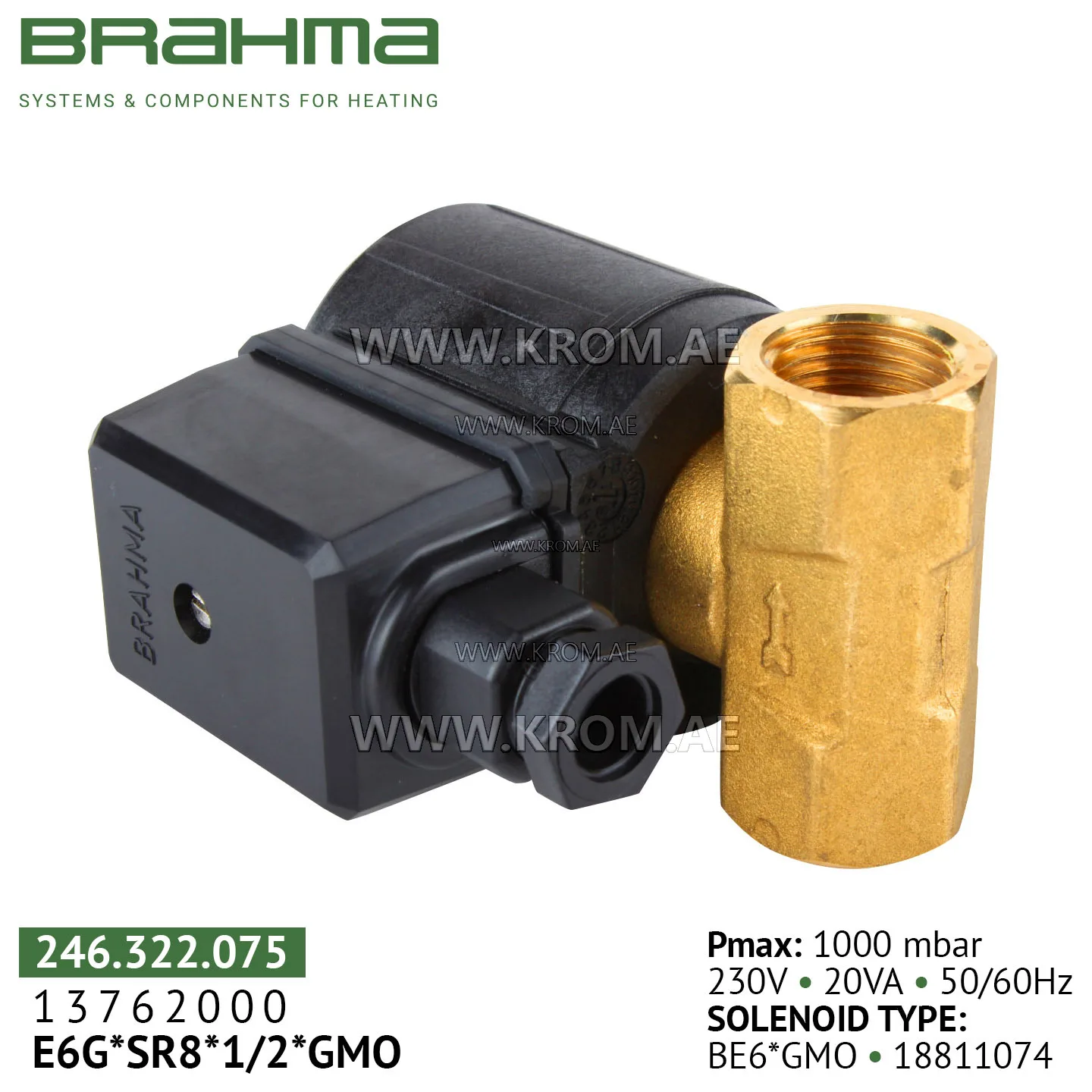

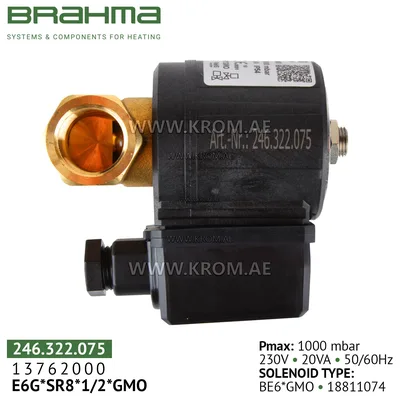

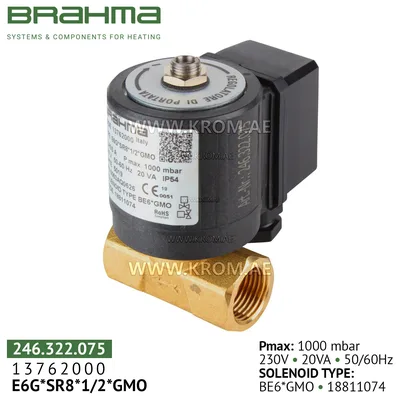

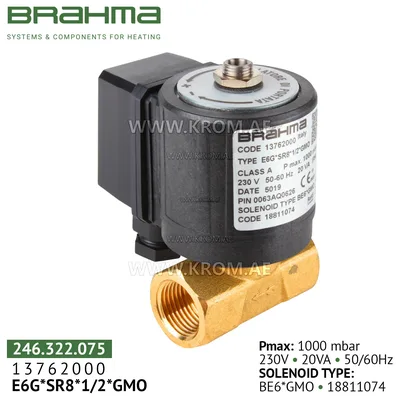

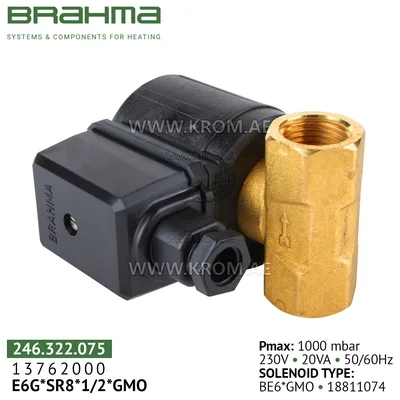

Brahma 13762000 E6G*SR8*1/2*GMO gas valve

Brahma E6G*SR8*1/2*GMO 13762000 gas control units are normally closed type gas electromagnetic devices designed for use in both domestic and industrial installations. Brahma E6G*SR8*1/2*GMO 13762000 valves are capable of operating on both direct and alternating current. These valves are divided into two groups depending on the nozzle diameter, which can be 8 or 10 mm. Brahma E6G*SR8*1/2*GMO 13762000 gas solenoid valves comply with the EN161 standard and have a CE certificate (Reg. N° 63AQ0626) in accordance with European Directives 90/396 and 93/68. This certificate confirms their compliance with high standards and electrical safety requirements in accordance with European standards. Technical specifications Valve class: A Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60° Closing time: 1sec Opening time: 1sec (for versions with fast opening) Installation: Vertical and horizontal Body Material: Brass Power supply type: Alternating current, but the valve is controlled by a DC signal due to the built-in bridge rectifier circuit Connection type: Terminal block connection - IP54 Type of opening: Quick opening, silent Flow settings: The valve has the ability to adjust the flow rate Setting up the flow rate Rotate clockwise to reduce gas flow, counterclockwise to increase gas flow through the Brahma E6G*SR8*1/2*GMO 13762000 gas valve.
