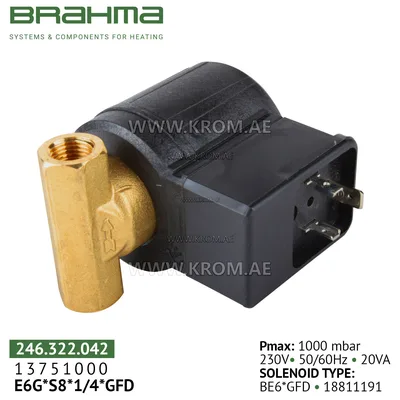

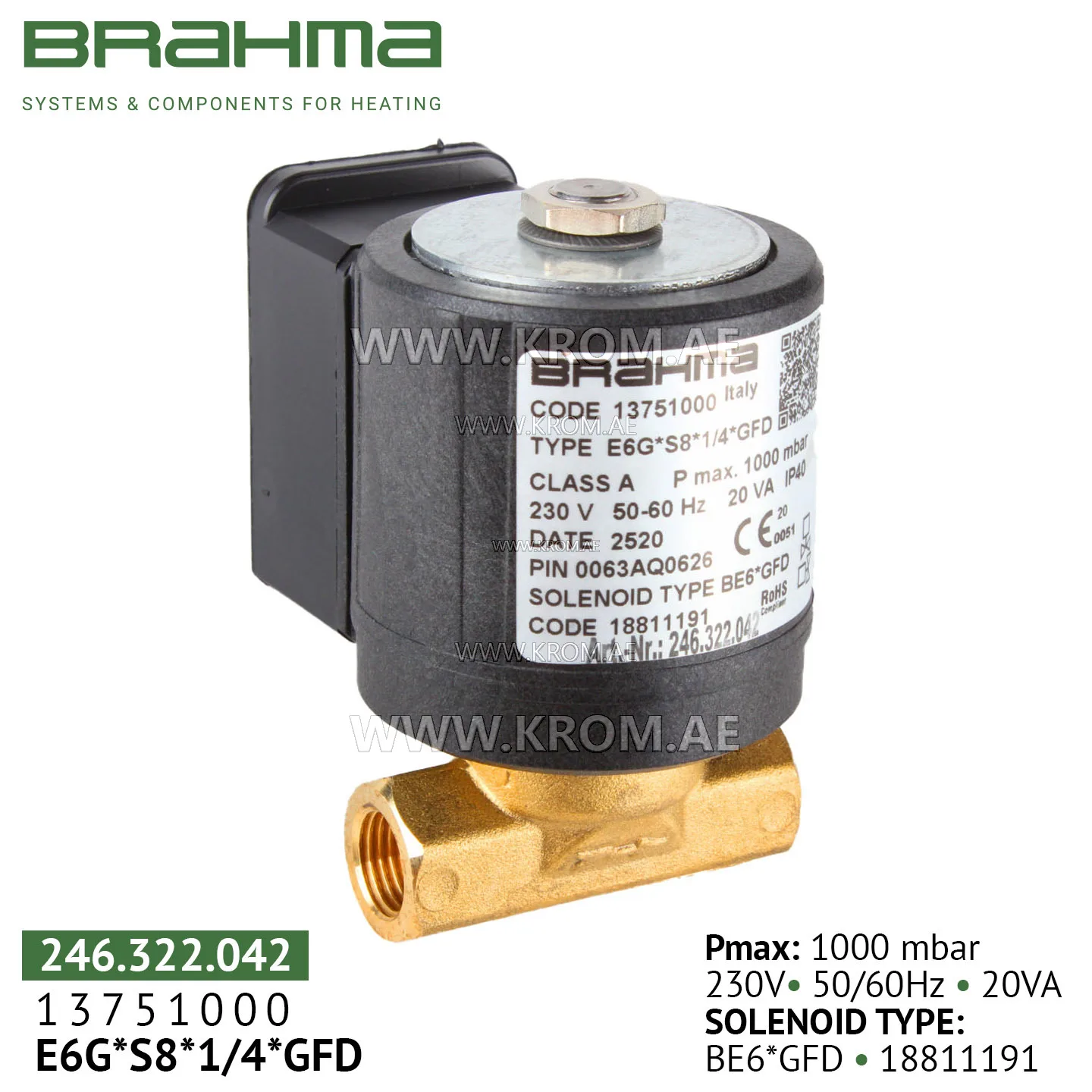

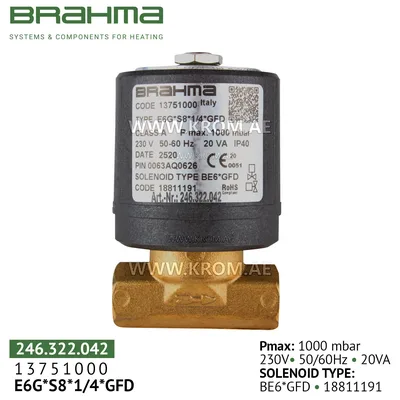

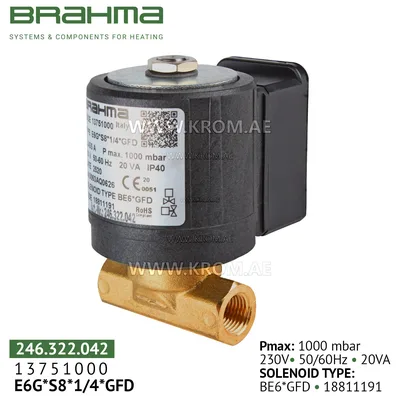

Brahma 13751000 E6G*S8*1/4*GFD gas valve

Brahma E6G*S8*1/4*GFD 13751000 gas control units are normally closed type gas electromagnetic devices designed for use in both domestic and industrial installations. These valves can operate on both direct and alternating current. They are divided into two groups depending on the nozzle diameter, which can be 8 or 10 mm. Certification Brahma E6G*S8*1/4*GFD 13751000 gas valves comply with EN161, have a CE certificate (Reg. N° 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Valve class: A Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60° Closing time: 1sec Opening time: 1sec (for versions with fast opening) Installation: Vertical and horizontal Body Material: Brass Working pressure: 0-1000 mbar Nozzle diameter: 8mm Weight: 700 g Consumption: 20 VA Natural gas consumption: 2 m3/h Power supply type: Alternating current, but the valve is controlled by a DC signal due to the built-in bridge rectifier circuit Connection type: Quick-release connection for DIN43650 - IP65 (GFD IP40) Type of opening: Quick opening, silent Installation The installation is carried out in accordance with national and European standards (e.g. EN 60335-1) for electrical safety. Install the Brahma E6G*S8*1/4*GFD 13751000 gas control block so that the arrow on the valve body coincides with the flow direction. During the installation of the Brahma E6G*S8*1/4*GFD 13751000 compact gas unit on the pipeline, avoid displacement of the protective shell and always use a hex key of the appropriate size. Make sure that no foreign objects have entered the valve. Make sure that the inlet pressure of the Brahma E6G*S8*1/4*GFD 13751000 gas solenoid valve does not exceed the pressure indicated on the valve.
