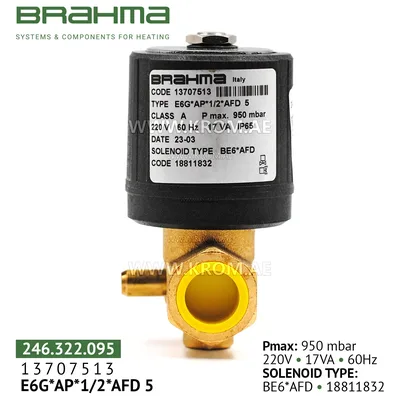

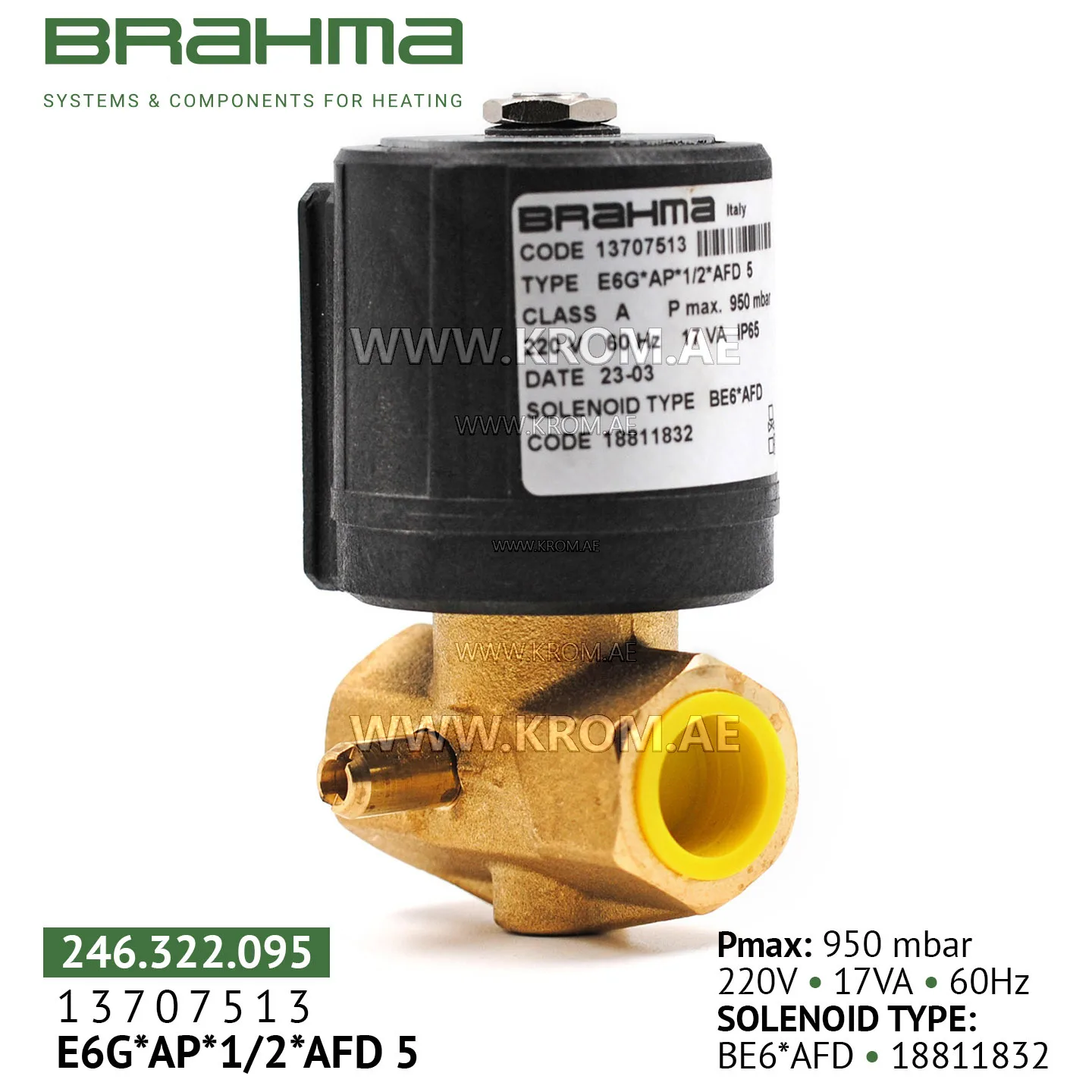

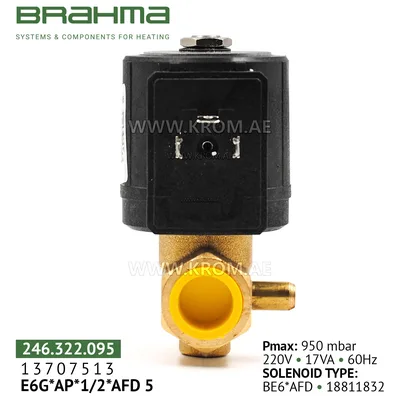

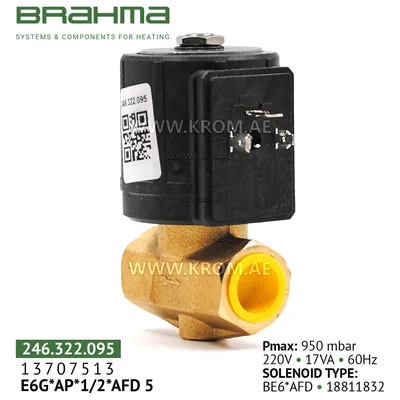

Brahma 13707513 E6G*A P*1/2*AFD5 gas valve

Brahma E6G*A P*1/2*AFD5 13707513 gas solenoid valves are normally closed, used in domestic and industrial installations, operate on direct and alternating current. They are certified according to EN161 and have a CE certificate (Reg. N° 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Valve class: A Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60° Closing time: 1sec Opening time: 1sec (for versions with fast opening) Installation: Vertical and horizontal Body Material: Brass Power supply type: Alternating current Type of opening: Quick opening Connection type: Quick-release connection for DIN43650 - IP65 (GFD IP40) Pressure take-off: Brahma E6G*A P*1/2*AFD5 13707513 valve has a pressure take-off point connection G1/4” Installation 1. The installation is carried out in accordance with national and European standards (e.g. EN 60335-1) for electrical safety. 2. Install the Brahma E6G*A P*1/2*AFD5 13707513 gas solenoid valve so that the arrow on the valve body coincides with the flow direction. 3. During the installation of the Brahma E6G*A P*1/2*AFD5 13707513 gas control unit on the pipeline, avoid displacement of the protective shell and always use a hex key of the appropriate size. 4. Make sure that no foreign objects have entered the valve. 5. Make sure that the inlet pressure of the Brahma E6G*A P*1/2*AFD5 13707513 gas control block does not exceed the pressure indicated on the valve.
