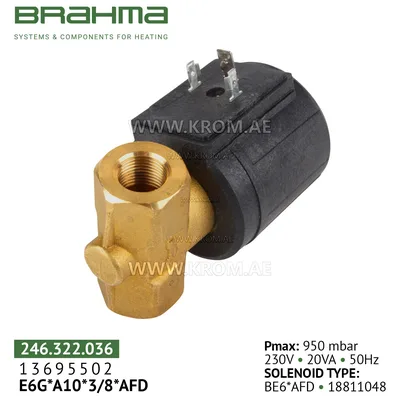

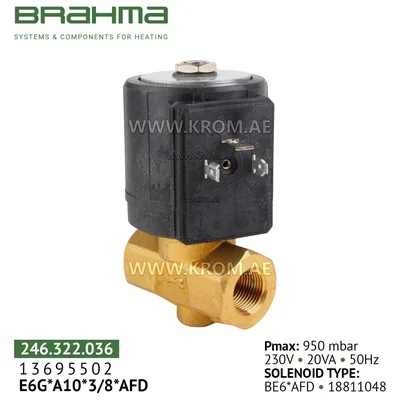

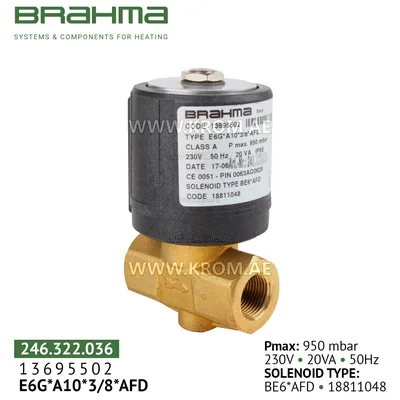

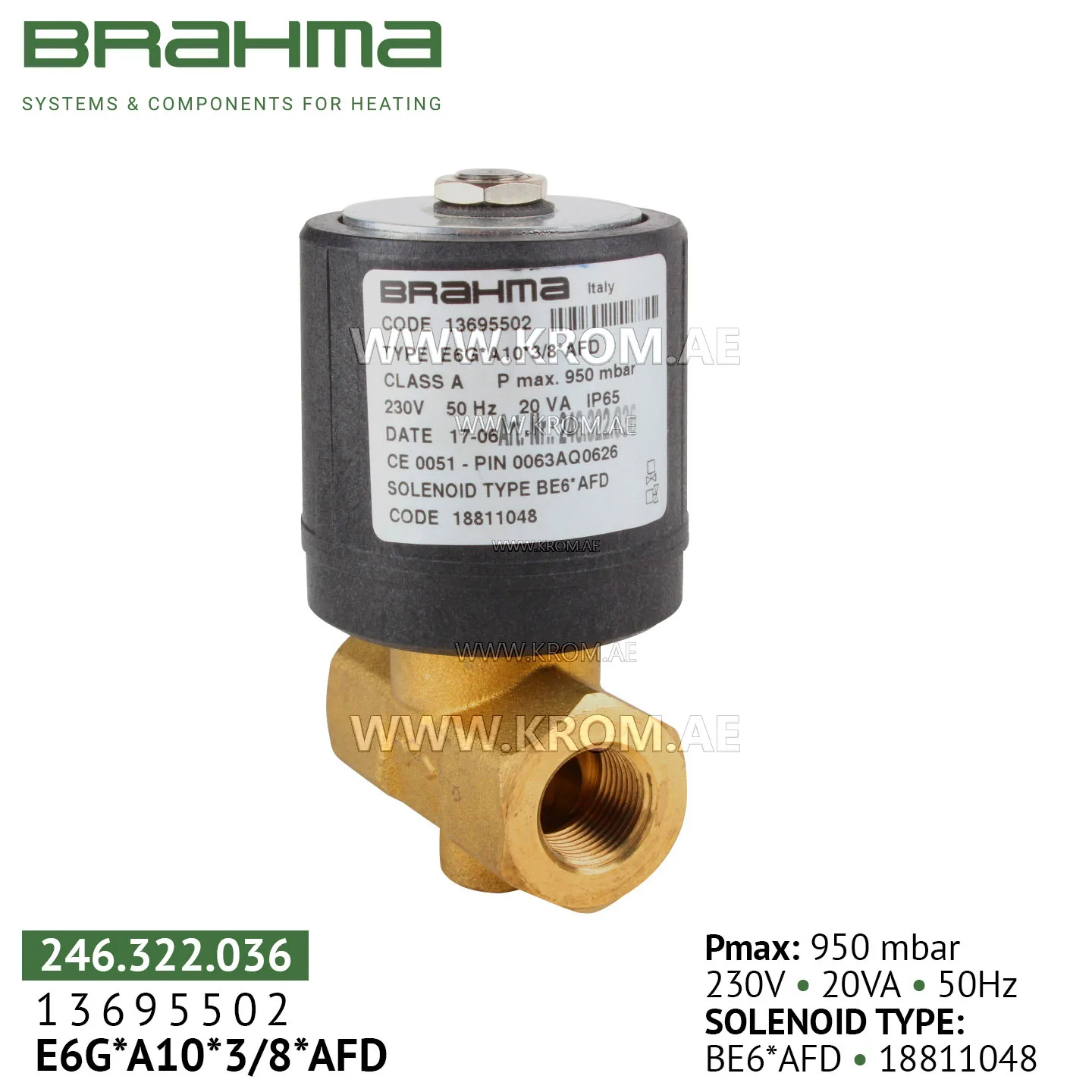

Brahma 13695502 E6G*A10*3/8*AFD gas valve

Brahma E6G*A10*3/8*AFD 13695502 valves are normally closed, used in domestic and industrial installations, operate on direct and alternating current. They are divided into two groups: with a nozzle diameter of 8 or 10 mm. Brahma E6G*A10*3/8*AFD 13695502 compact gas units comply with EN161, have a CE certificate (Reg. N° 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Valve class: A Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60° Closing time: 1sec Opening time: 1sec (for versions with fast opening) Installation: Vertical and horizontal Body Material: Brass Working pressure: 0-950 mbar Nozzle diameter: 10 mm Weight: 700 g Consumption: 20 VA Natural gas consumption: 3.9 m3/h Pressure sampling control point: + Power supply type: Alternating current Connection Type: Quick-release connection for DIN43650 - IP65 (GFD IP40) Installation The installation is carried out in accordance with national and European standards (e.g. EN 60335-1) for electrical safety. Install the Brahma E6G*A10*3/8*AFD 13695502 gas control block so that the arrow on the valve body coincides with the flow direction. During the installation of the Brahma E6G*A10*3/8*AFD 13695502 gas valve on the pipeline, avoid displacement of the protective shell and always use a hex key of the appropriate size. Make sure that no foreign objects have entered the valve. Make sure that the inlet pressure of the Brahma E6G*A10*3/8*AFD 13695502 gas solenoid valve does not exceed the pressure indicated on the valve.
