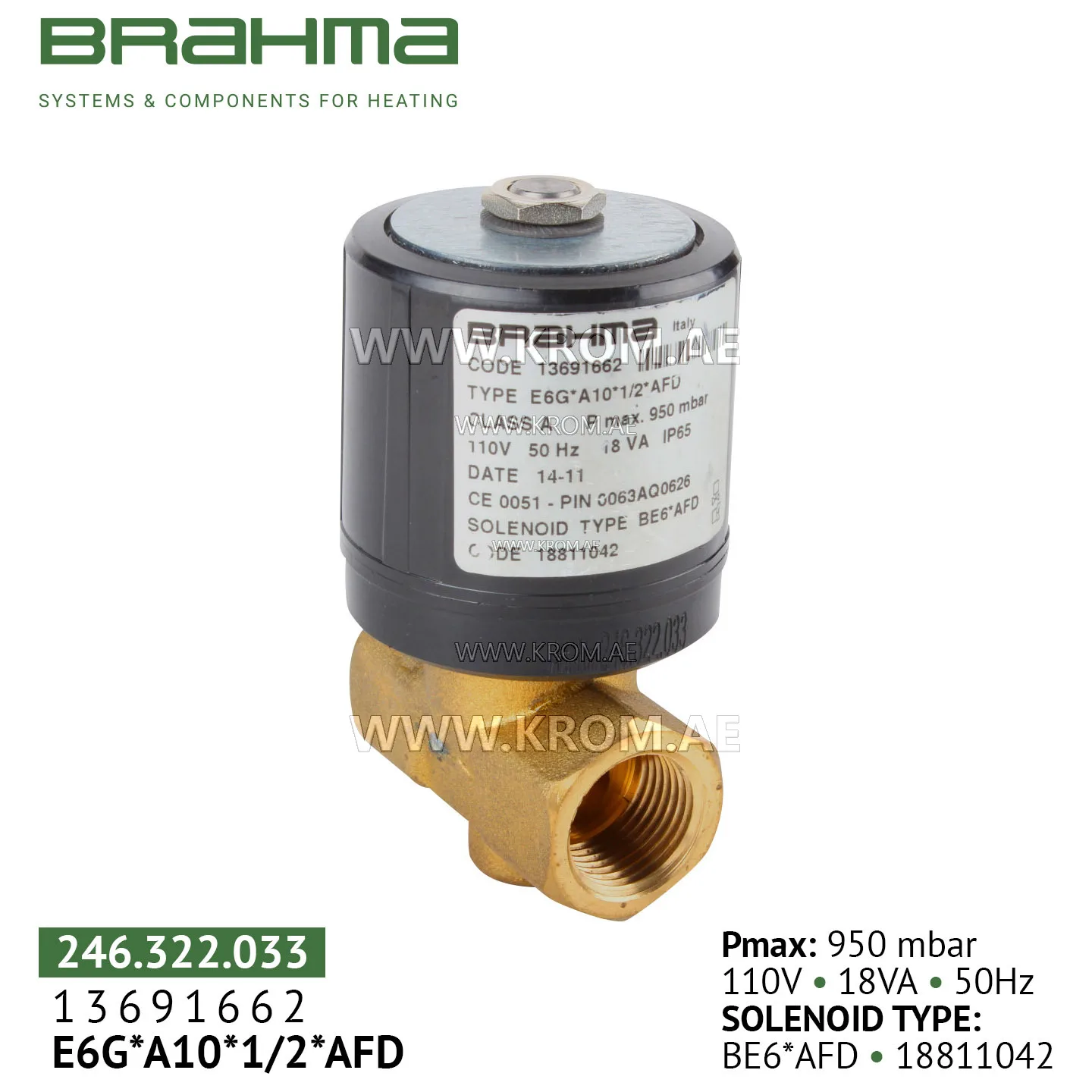

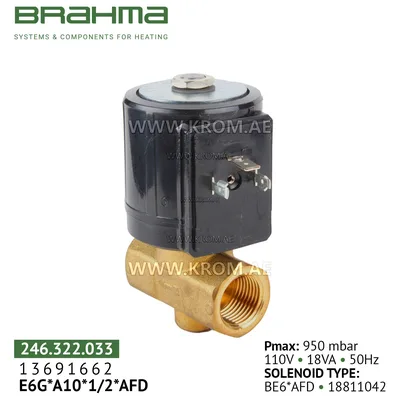

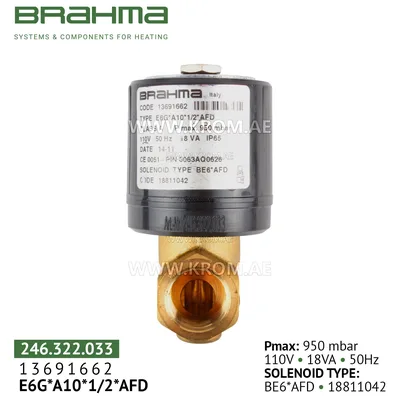

Brahma 13691662 E6G*A10*1/2*AFD gas valve

Brahma E6G*A10*1/2*AFD 13691662 compact gas units are used in domestic and industrial installations. It is worth noting that the Brahma E6G*A10*1/2*AFD 13691662 gas valves operate on direct and alternating current. They can be divided into two groups: with a nozzle diameter of 8 or 10 mm. Technical specifications Valve class: A Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60° Closing time: 1sec Opening time: 1sec (for versions with fast opening) Installation: Vertical and horizontal Body Material: Brass Working pressure: 0-950 mbar Nozzle diameter: 10 mm Weight: 700 g Consumption: 20 VA Natural gas consumption: 3.9 m3/h Pressure sampling control point: + Power supply type: Alternating current Connection type: Quick-release connection for DIN43650 - IP65 (GFD IP40) Opening type: Quick opening Certification Brahma E6G*A10*1/2*AFD 13691662 gas solenoid valves comply with EN161, have a CE certificate (Reg. N° 63AQ0626) in accordance with European Directives 90/396 and 93/68.
