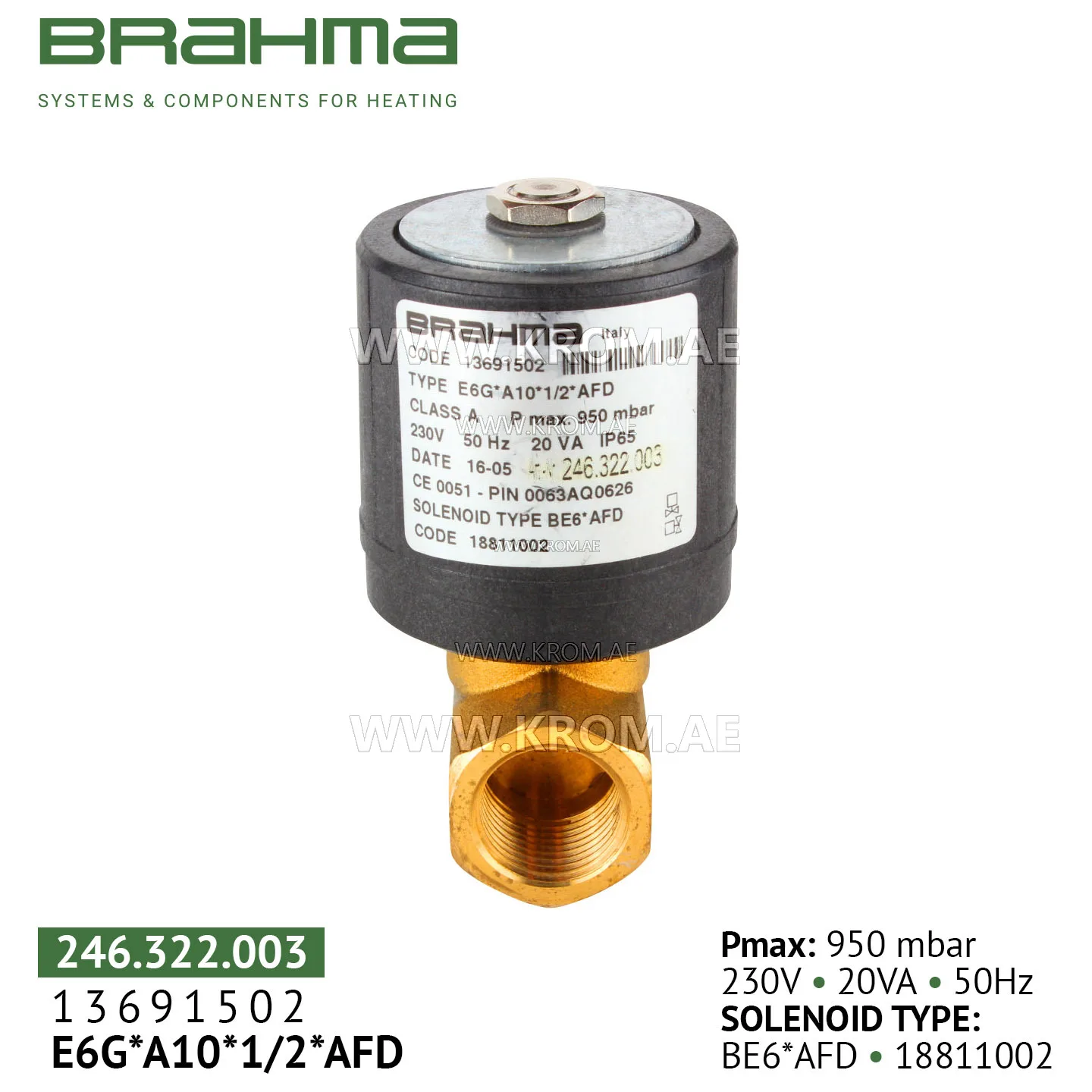

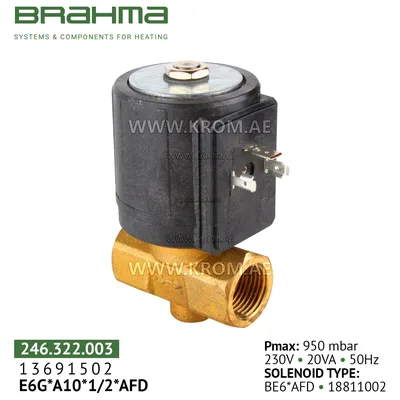

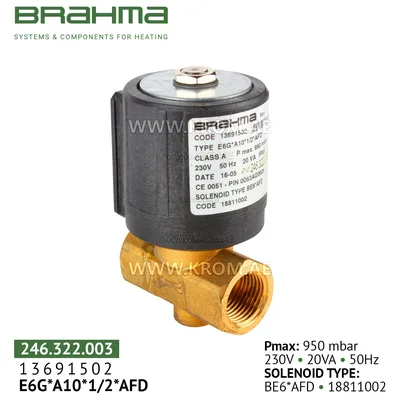

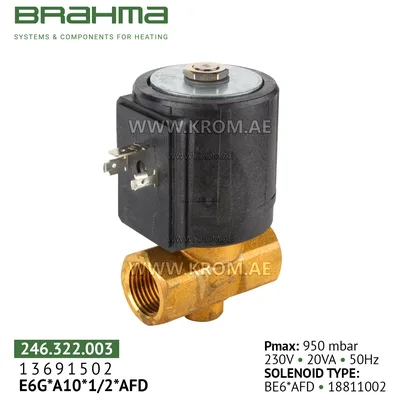

Brahma 13691502 E6G*A10*1/2*AFD gas valve

Brahma E6G*A10*1/2*AFD 13691502 valves are normally closed, used in domestic and industrial installations, operate on direct and alternating current. They are divided into two groups: with a nozzle diameter of 8 or 10 mm. Brahma E6G*A10*1/2*AFD 13691502 gas solenoid valves comply with EN161, have a CE certificate (Reg. N° 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Valve class: A Supply voltage: 230 V / 50-60 Hz Operating temperature: -10°C / +60° Closing time: 1sec Opening time: 1sec (for versions with fast opening) Installation: Vertical and horizontal Body Material: Brass Working pressure: 0-950 mbar Nozzle diameter: 10 mm Weight: 700 g Consumption: 20 VA Natural gas consumption: 3.9 m3/h Pressure sampling control point: + Power supply type: Alternating current Connection type: Quick-release connection for DIN43650 - IP65 (GFD IP40) Installation The installation is carried out in accordance with national and European standards (e.g. EN 60335-1) for electrical safety. Install the Brahma E6G*A10*1/2*AFD 13691502 gas control unit so that the arrow on the valve body matches the flow direction. When installing the Brahma E6G*A10*1/2*AFD 13691502 gas control block on the pipeline, avoid dislodging the protective shell and always use an appropriately sized hex wrench. Make sure that no foreign objects have entered the valve. Make sure that the inlet pressure of the Brahma E6G*A10*1/2*AFD 13691502 compact gas unit does not exceed the pressure indicated on the valve.
