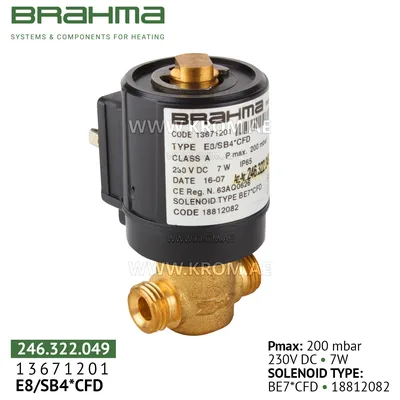

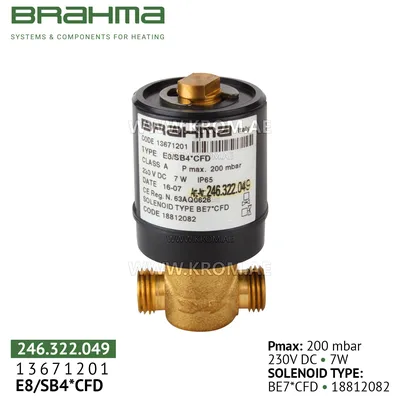

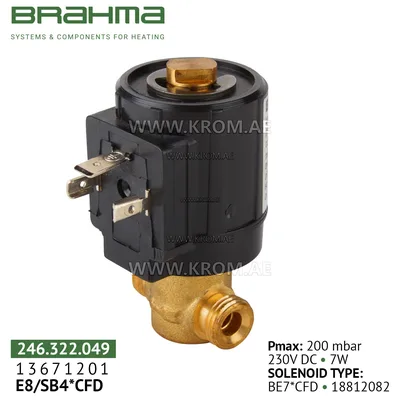

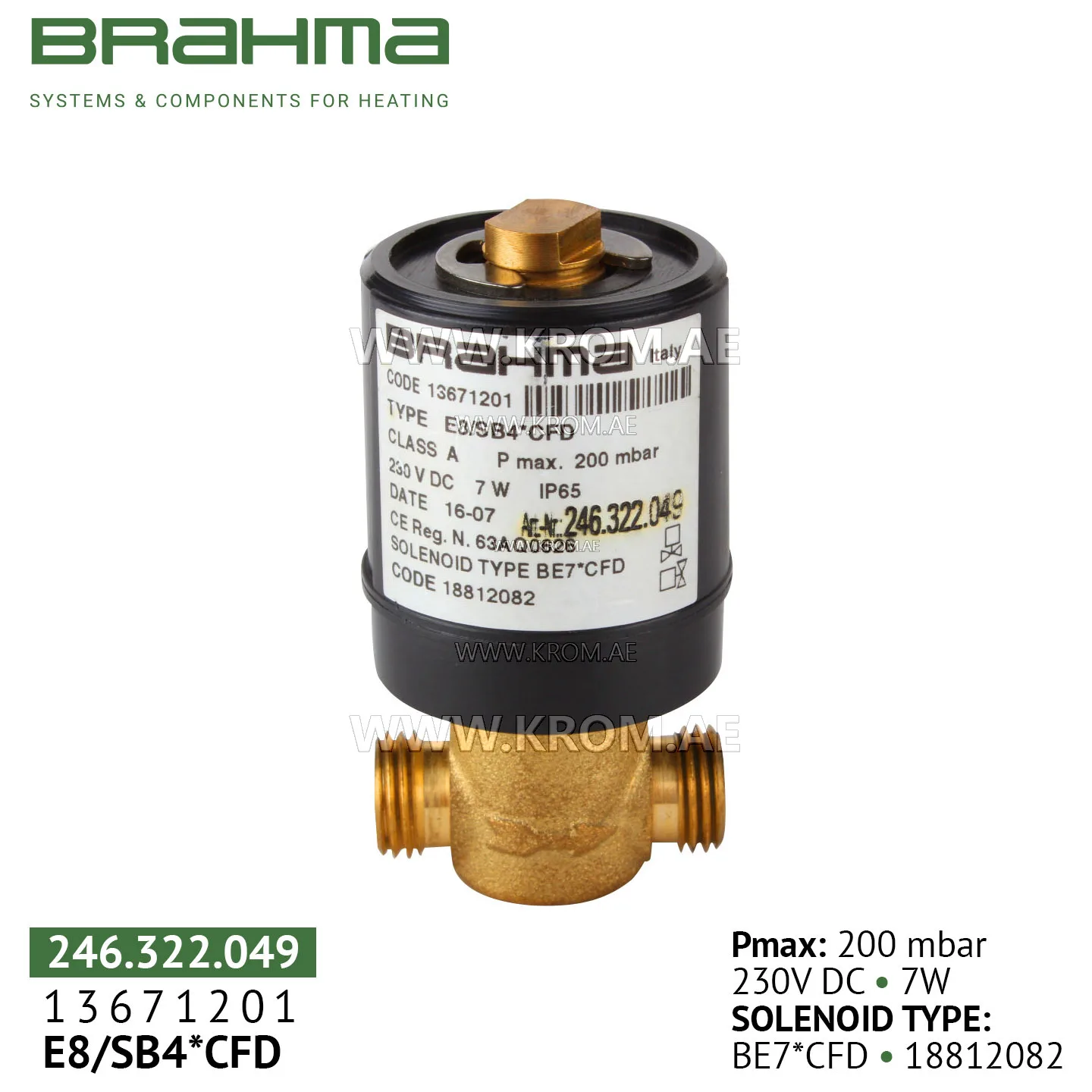

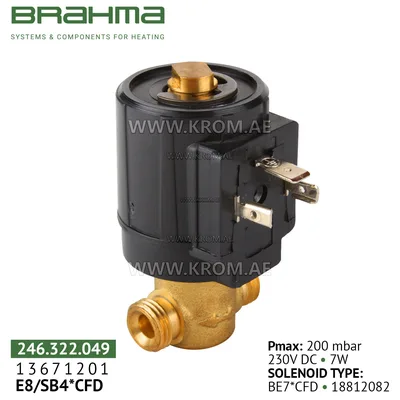

Brahma 13671201 E8/SB4*CFD gas valve

Brahma E8/SB4*CFD 13671201 compact gas units are of a normally closed type and are suitable for civil and industrial applications. Standards and certification Brahma E8/SB4*CFD 13671201 gas control block conforming to the EN161 standard have a CE type certificate (CE Reg.  No. 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Class: A Group: 2 Supply voltage (1): 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: <= 1 sec Opening time: <= 1 sec Installation: vertical and horizontal Body: die-cast brass Operating pressure (mbar): 0-200 Hole diameter (mm): 4 Weight of joints (g): +-235 The ability to set the pressure measurement point: no Connection: G1/4” M Connection type: Quick-on connection for DIN43650-IP65 plug Winding type: DC power supply. Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the Brahma E8/SB4*CFD 13671201 valve at the installation location so that the arrow on the valve body indicates the direction of fuel flow. When installing the Brahma E8/SB4*CFD 13671201 gas valve to the mounting pipeline, avoid twisting the shell and always use a hex key to install it into the valve body. Make sure that no foreign objects have entered the body of the Brahma E8/SB4*CFD 13671201 gas solenoid valve. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label.
