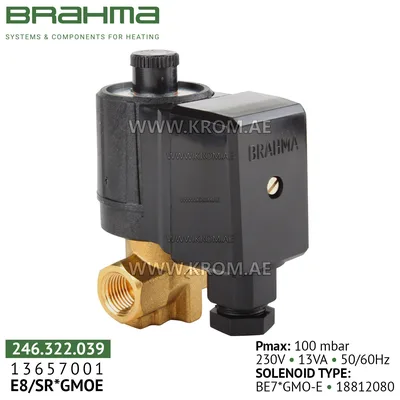

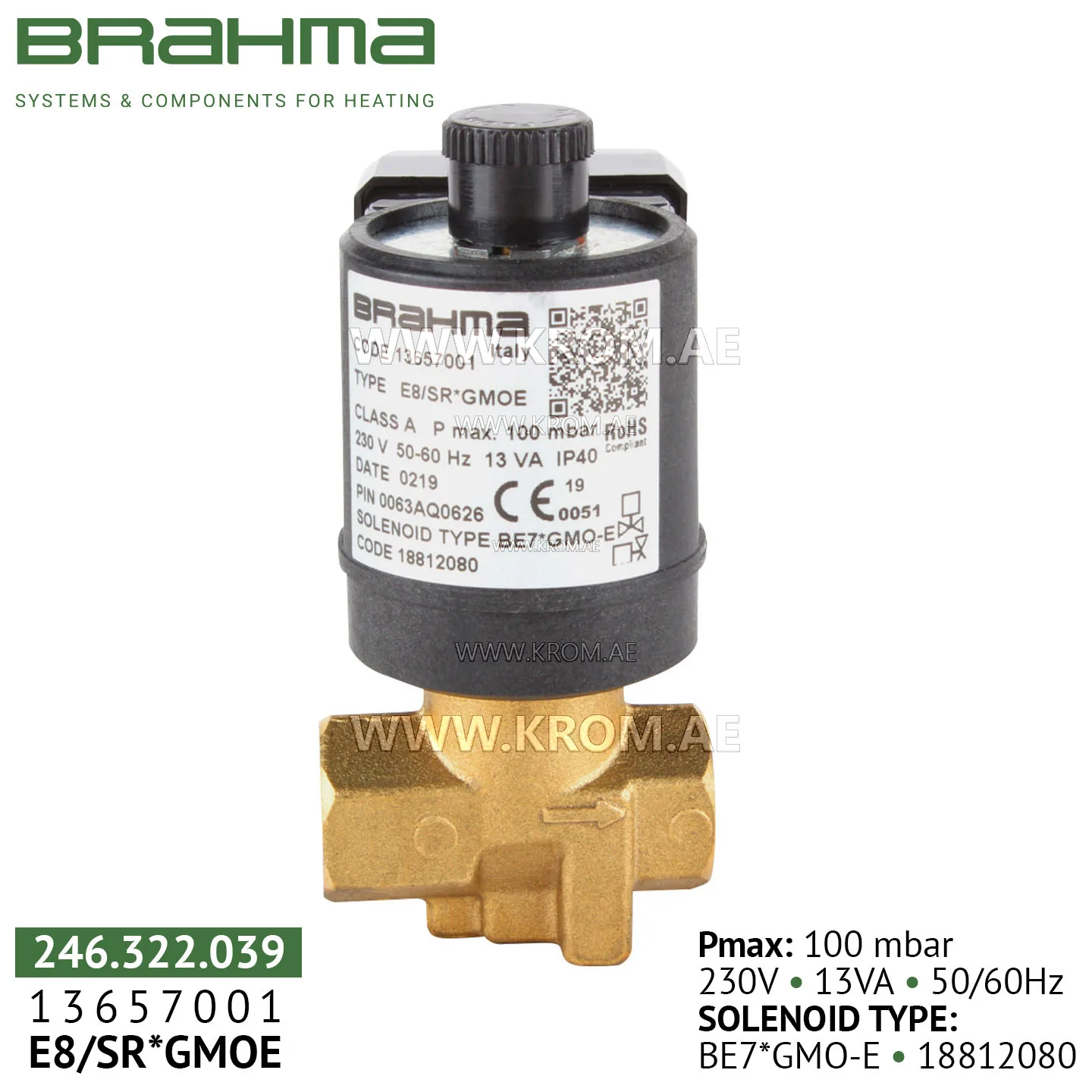

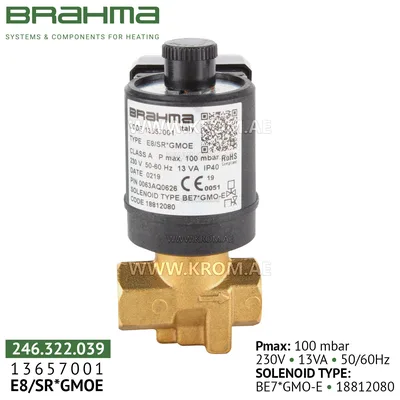

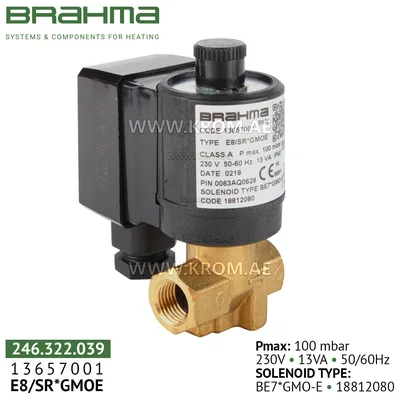

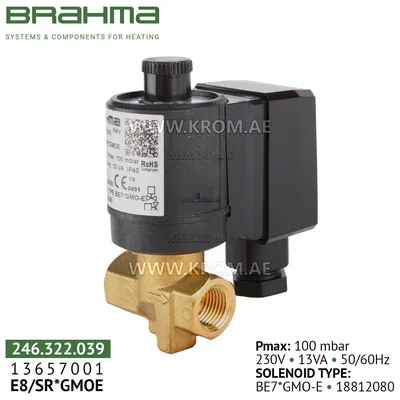

Brahma 13657001 E8/SR*GMOE gas valve
Brahma E8/SR*GMOE 13657001 are series gas regulators with 1/8” and 1/4” connections and operating pressure up to 1 bar. The Brahma E8/SR*GMOE 13657001 gas solenoid valve is equipped with flow control equipment. General provisions 1. Valve Type: Brahma E8/SRGMOE 13657001 gas solenoid valves belong to the series with 1/8” and 1/4” connections. 2. Operating pressure: The valves are capable of operating at pressures up to 1 bar. 3. Type of operation: Brahma E8/SRGMOE 13657001 gas control block are a normally closed type. 4. Scope of application: Suitable for civil and industrial applications. 5. Power supply: The valves can be powered by alternating or direct current. 6. Compliance with standards: Brahma E8/SRGMOE 13657001 gas control unit comply with the EN161. 7 standard. Certification: They have a CE type certificate (CE Reg. No. 63AQ0626) in accordance with European Directives 90/396 and 93/68. Technical specifications Class: A Group: 2 Supply voltage (1): 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: <= 1 sec Opening time: <= 1 sec Installation: vertical and horizontal Body: die-cast brass Operating pressure (mbar): 0-100 Hole diameter (mm): 6 Connection weight (g): 290 The ability to set the pressure measurement point: yes Connection: 1/4" F Connection type: IP40 terminal block connection Winding type: the power is supplied by alternating current, but the valve operates on direct current due to the built-in rectifier bridge Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the Brahma E8/SR*GMOE 13657001 compact gas unit at the installation location so that the arrow on the valve body indicates the direction of fuel flow. When installing the Brahma E8/SR*GMOE 13657001 valve to the mounting pipeline, avoid twisting the shell and always use a hex key to install it into the valve body. Make sure that no foreign objects have entered the body of the Brahma E8/SR*GMOE 13657001 gas solenoid valve. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label.
