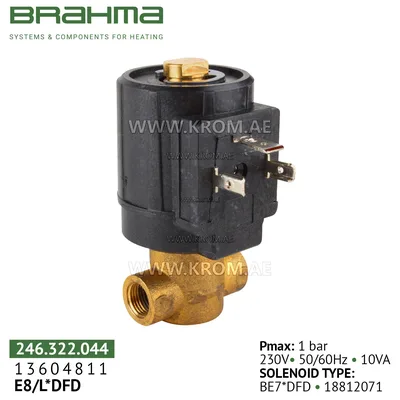

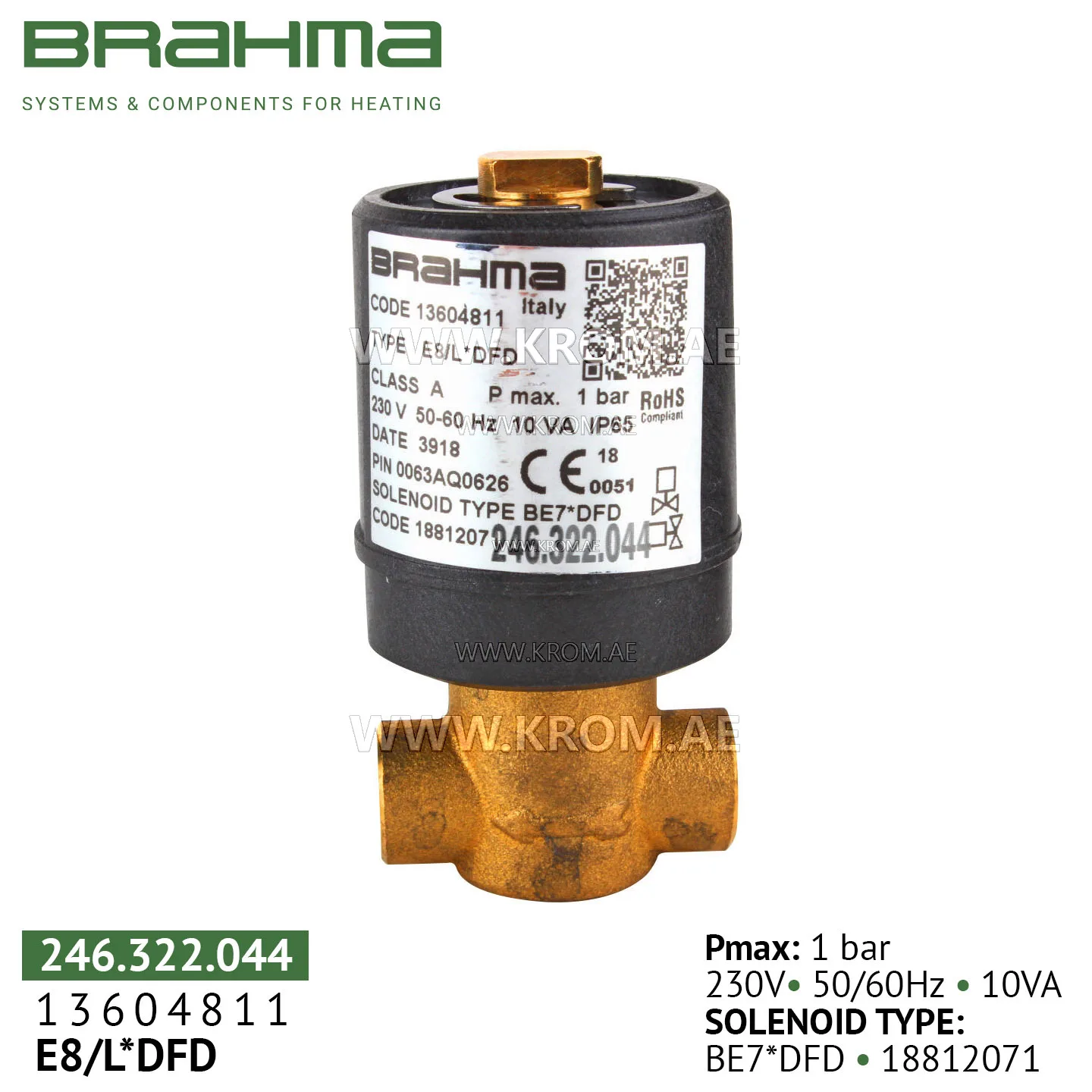

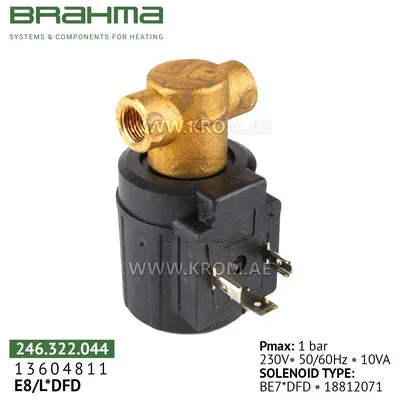

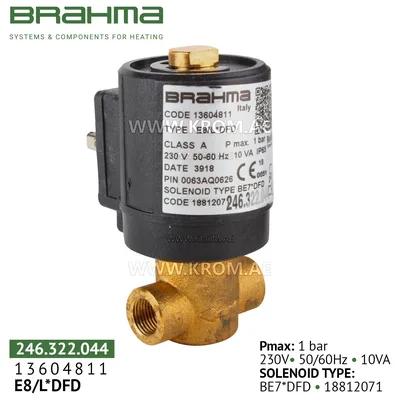

Brahma 13604811 E8/L*DFD gas valve

Brahma E8/L*DFD 13604811 are compact gas units from the series, equipped with 1/8” and 1/4” connections, capable of operating at operating pressure up to 1 bar. These gas valves have the characteristic of normal closing and are adapted for use in both the civil and industrial sectors. They can be powered by alternating current or direct current, depending on the needs. Brahma E8/L*DFD 13604811 gas solenoid valves conforming to the EN161 standard have received a CE type certificate (CE Reg.  No. 63AQ0626) in accordance with European Directives 90/396 and 93/68. This certificate confirms their compliance with high standards and electrical safety requirements in accordance with European standards. Technical specifications Class: A Group: 2 Supply voltage (1): 230 V / 50-60 Hz Operating temperature: -10°C / +60°C Closing time: <= 1 sec Opening time: <= 1 sec Installation: vertical and horizontal Body: die-cast brass Operating pressure (mbar): 0-1000 Hole diameter (mm): 4 Weight of joints (g): +-220 The ability to set the pressure measurement point: no Connection: G1/8” F Connection type: Quick-on connection for DIN43650-IP65 plug Winding type: the power is supplied by alternating current, but the valve operates on direct current thanks to two built-in diodes. Installation Comply with applicable national and European standards (e.g. EN60335-1) regarding electrical safety. Install the Brahma E8/L*DFD 13604811 gas control unit at the installation location so that the arrow on the valve body indicates the direction of fuel flow. When installing the Brahma E8/L*DFD 13604811 gas control block to the mounting pipeline, avoid twisting the shell and always use a hex key to install it into the valve body. Make sure that no foreign objects have entered the housing of the Brahma E8/L*DFD 13604811 gas regulator. Make sure that the maximum fuel inlet pressure never exceeds the value indicated on the label.
