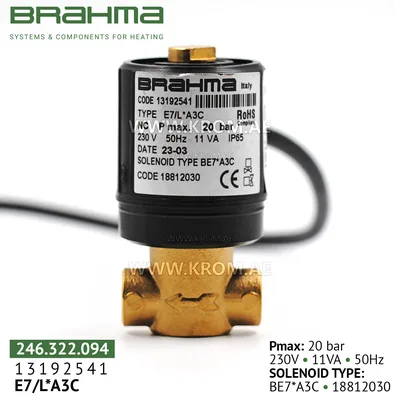

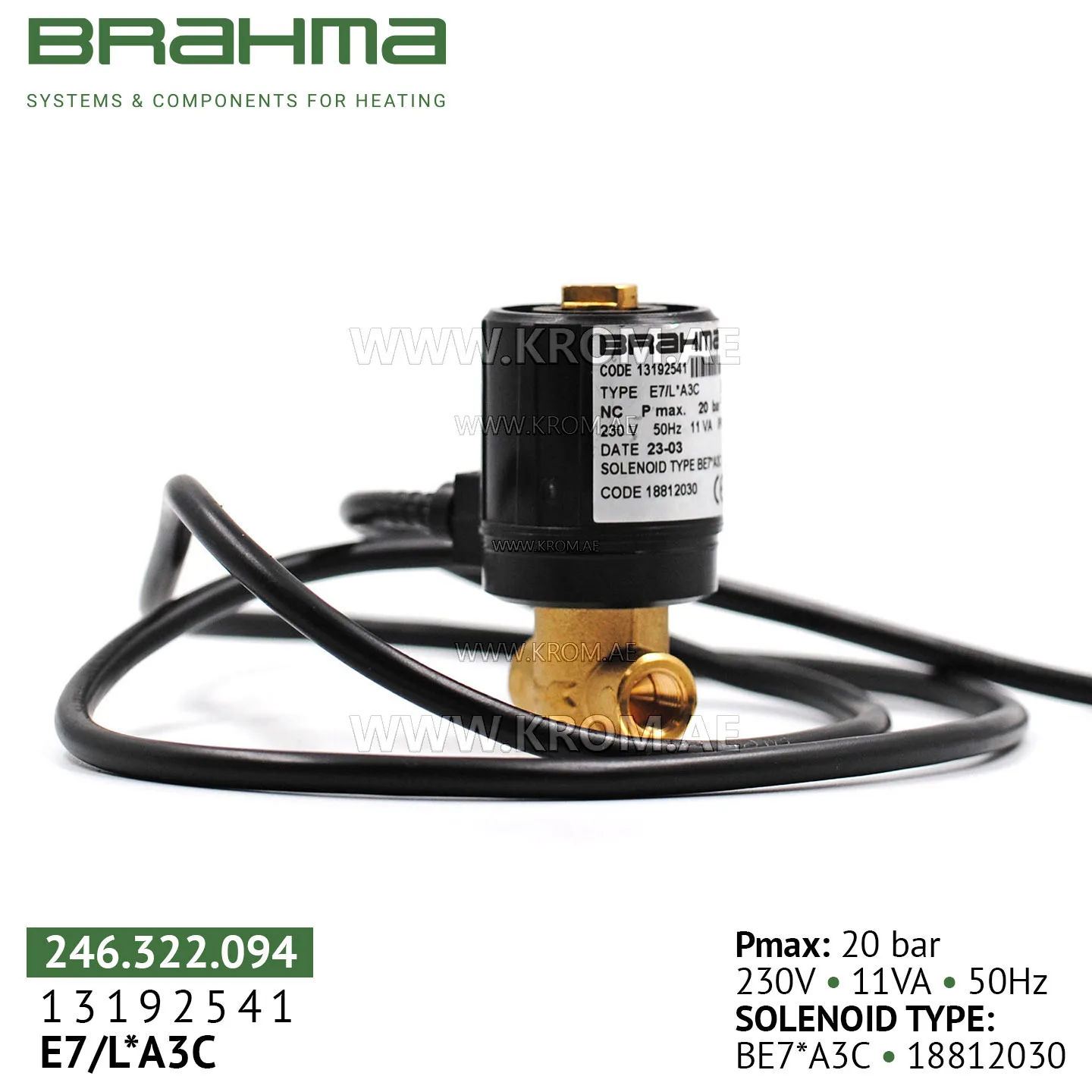

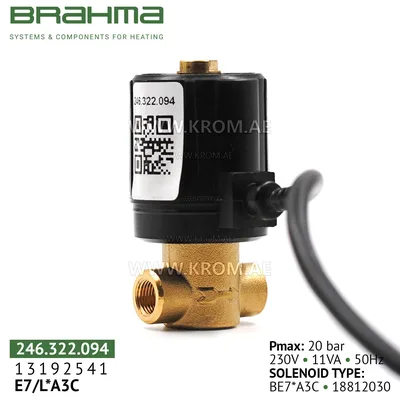

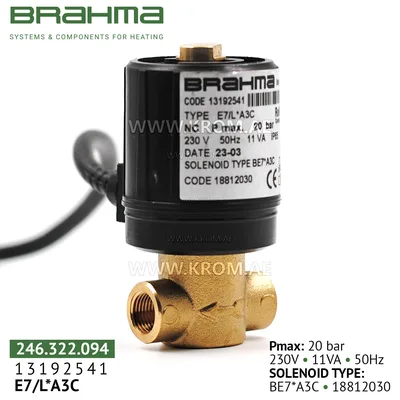

Brahma 13192541 E7/L*A3C oil valve

Brahma E7/L*A3C 13192541 oil valves are designed to work with light types of liquid fuels. Brahma E7/L*A3C 13192541 magnetic valves, which are of the normally closed type and have a quick response, are used in various household and industrial installations, operating on both direct and alternating current. Their delivery in various versions ensures ease of assembly and eliminates the need for multiple fittings, which ultimately increases the reliability of the entire structure. Technical information Supply voltage: 230 V / 50 Hz Operating pressure: 0-20 bar (nozzle ø1.5 mm) Ambient temperature: 0 - 60 °C Maximum fuel temperature: 80 °C Opening and closing time: <= 1 sec Power Consumption: 11 VA Consumption: 0.055 m3/h Weight: 230 g Installation position: any Body: Brass Input: G1/8”F Output: G1/8”F Winding type: AC Connection: quick-release connection for DIN 43650-IP 65
