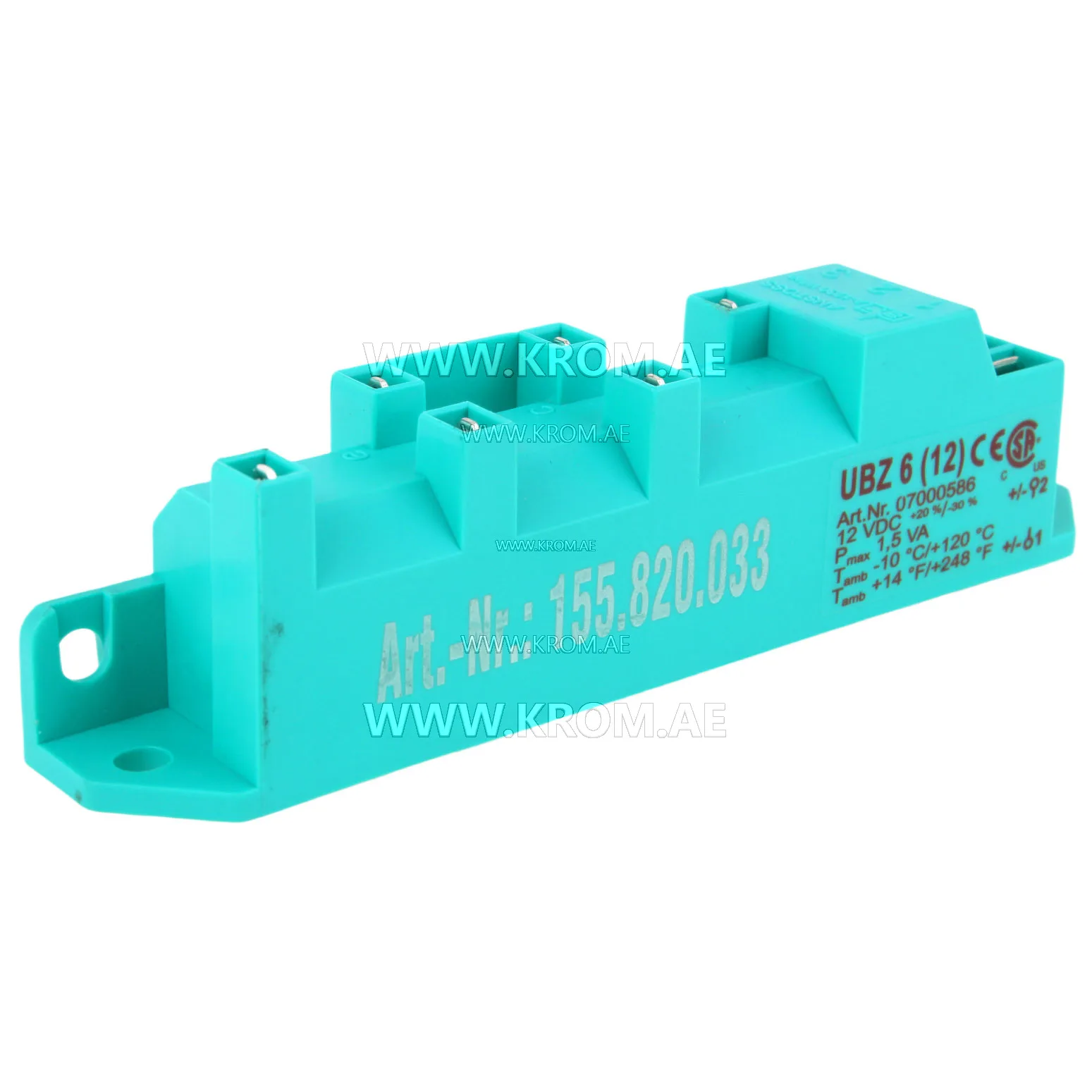

Anstoss UBZ 6 (12) 07000586 ignition transformer

Anstoss UBZ 6 (12) 07000586 ignition transformer. Catalogue article 155.820.033, manufacturer codes 07000586 and 155.820.033. This is a component from the Anstoss range of ignition transformers. An ignition transformer of this type steps mains voltage up to the level that produces a spark at the electrode gap. It is energised only during the ignition period, under command from the burner control. The transformer works together with the ignition electrode and the high-voltage ignition cable. Parts of this class are selected by secondary voltage and current, primary voltage (230 V is common, but 110 V and 24 V also exist), duty cycle, mounting and terminal type, and the cable connector pattern. The ignition cable must be silicone-insulated to withstand high voltage and heat; a hardened or cracked cable can leak the spark to earth and simulate a faulty transformer, so inspect the cable before replacing the transformer. When sourcing a replacement for a burner of this class, confirm the primary voltage and the secondary output rating from the existing transformer or the burner manual. Check the mounting dimensions and the connector pattern to ensure a direct mechanical and electrical fit.
