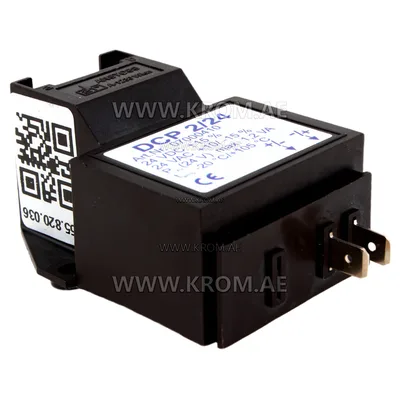

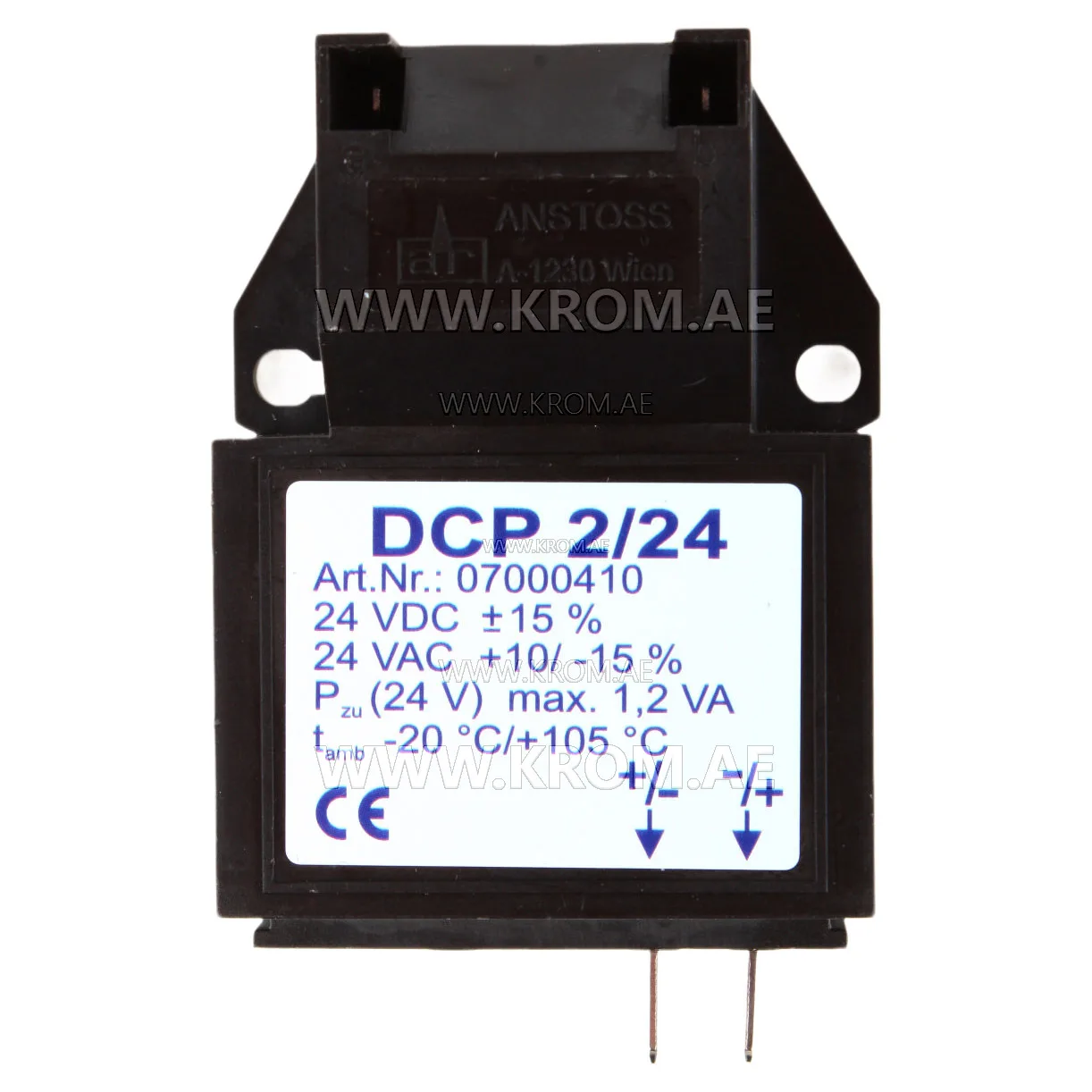

Anstoss DCP 2/24 07000410 ignition transformer

The Anstoss DCP 2/24 07000410 is an ignition transformer, a component listed in the ignition transformers category. Ignition transformers of this type step up the mains voltage to a high level that produces a spark across the gap of the ignition electrode. They are energised only during the ignition period, under command from the burner control. When the control signals the start sequence, the transformer delivers high-voltage pulses to the electrode; once flame is established, the control cuts power to the transformer. Parts like this are selected primarily by secondary voltage and current, primary voltage (230 V is common, but 110 V and 24 V also exist), duty cycle, and physical mounting and terminal type. The cable connector pattern must match the existing wiring. Ignition cables are silicone‑insulated to withstand high voltage and heat; a cracked or hardened cable can leak the spark to earth and mimic a faulty transformer. When replacing an ignition transformer of this class, check that the primary supply matches the burner’s control circuit and that the electrode gap and insulation are sound – a weak spark may be due to cable condition rather than the transformer itself. The specific article carries the manufacturer codes 07000410 and 155.820.036.
