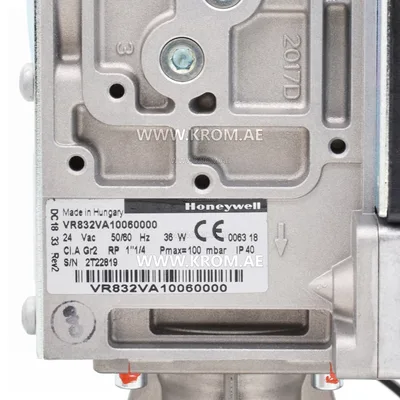

ACV 537D8022 kit gas valve with venturi for HM201 Honeywell VR832VA10060000

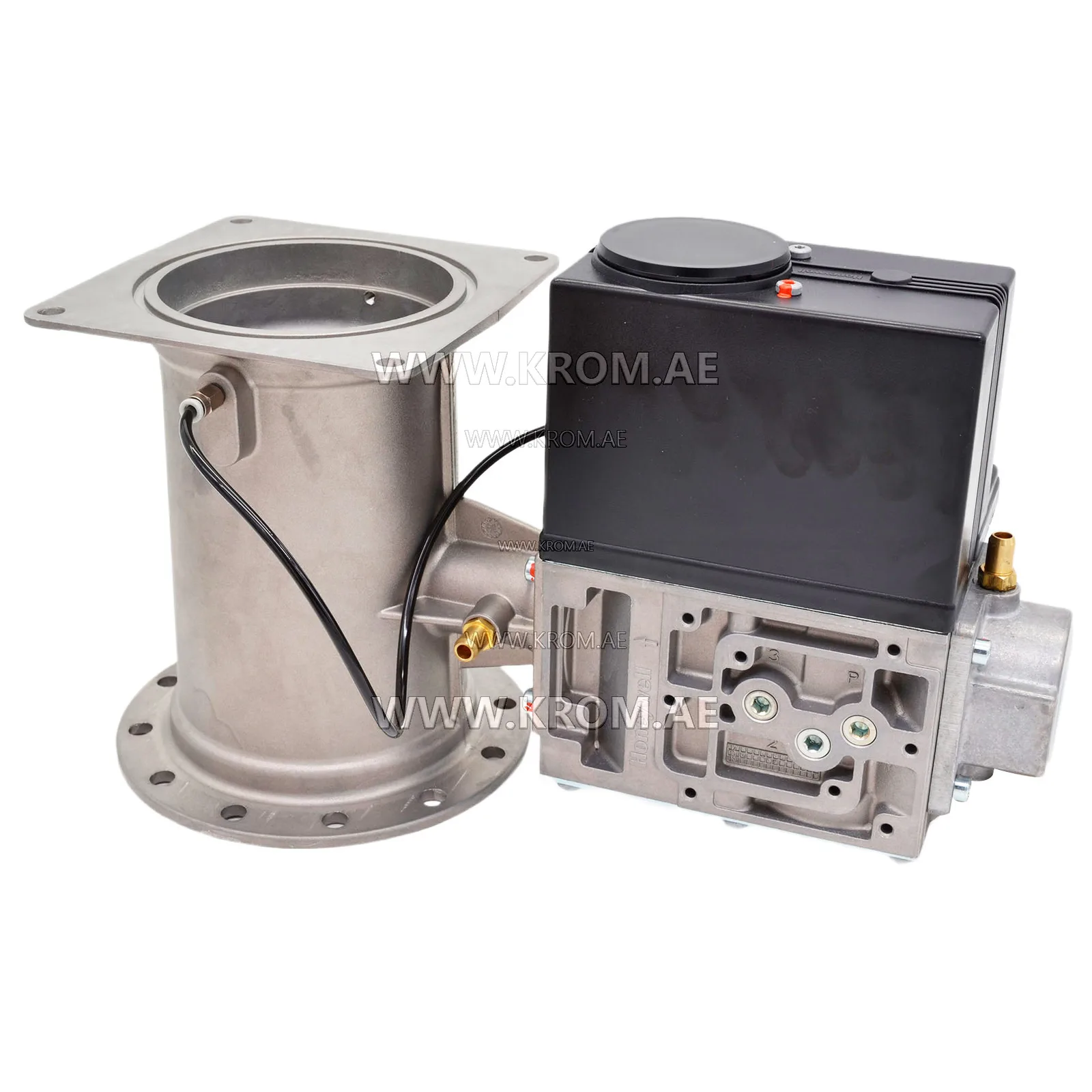

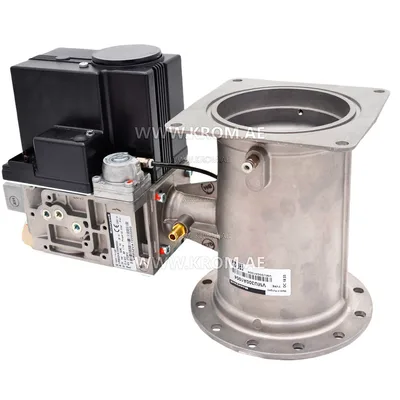

This kit comprises a gas valve and a venturi, intended for use in premix burner systems. In such systems, the gas valve serves as both a shut-off and metering device, opening on command from the burner control only when the gas pressure switch confirms acceptable supply pressure. The venturi, located downstream of the valve, draws gas into the air stream from the fan, creating a combustible mixture. The pneumatic gas/air link between the valve and the fan ensures that the gas flow rate follows the air flow, maintaining the correct ratio across the modulation range. When selecting a replacement gas valve for a premix burner, the key parameters are the connection size, coil voltage, and the valve family or series. The coil voltage must match the burner control output; common values are 230 V or 24 V AC/DC. The valve may be a single solenoid (on/off) or include a modulating servo regulator. In kits that include a venturi, the venturi size is matched to the burner output range. Typical failure modes for such valves include coil burnout, seat leakage allowing gas to pass when closed, drifting outlet pressure due to debris or wear in the servo regulator, and seized regulator parts. On many gas valves, the coil can be replaced separately without changing the valve body, which can be a cost-effective repair if the valve body is intact. Always verify the manufacturer code and series marking on the existing valve before ordering, as physical dimensions and electrical connections vary between series.
