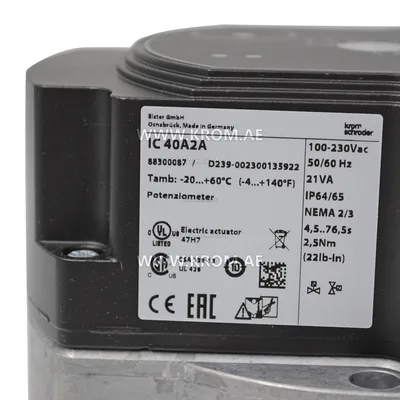

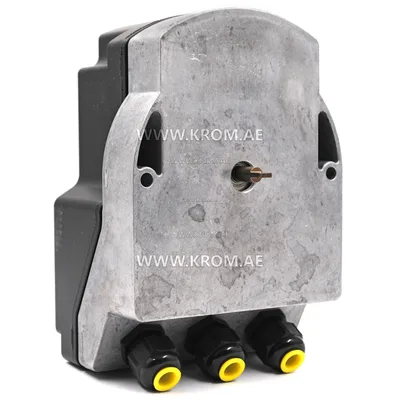

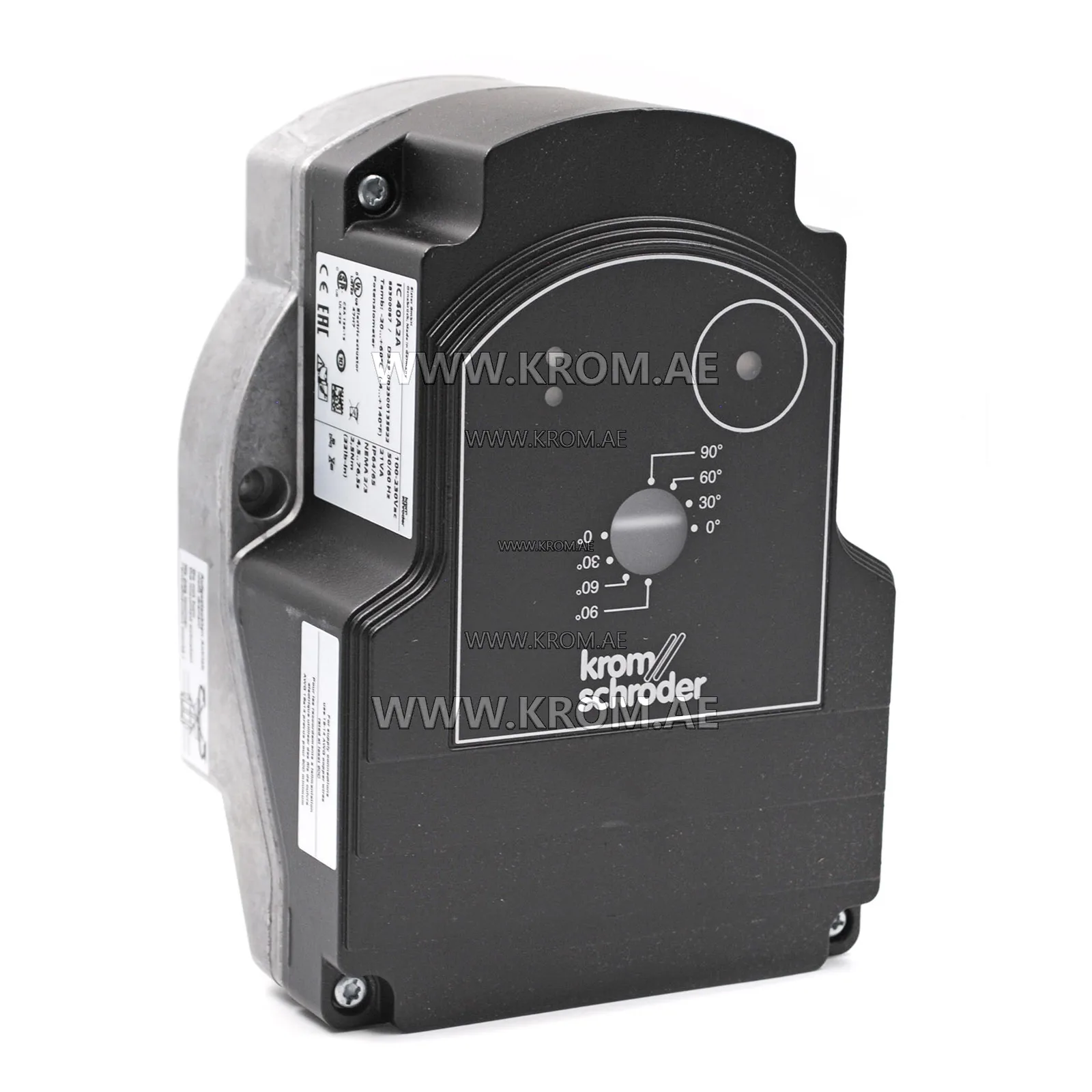

Siłownik Kromschroeder IC40-A2A (88300087)

Kromschroeder IC 40A2A 88300087 actuator excels in providing precise rotary motion ranging from 0° to 90°, serving a wide range of applications. Teamed with the control component, it facilitates gas and air volume adjustments in various equipment and flue gas systems. Configuration and activation of Krom schroder IC 40A2A 88300087 servo motor are streamlined through BCSoft programming software. Additionally, when paired with the butterfly valve BV.. (IB..), Kromschroeder IC 40A2A 88300087 servo motor achieves control ratios of up to 10:1, ideal for regulating gas, cold air, hot air, and flue gas. Similarly, in collaboration with the linear flow control VFC (IFC), Kromschroder IC 40A2A 88300087 servo motor delivers precise control ratios of up to 25:1, ensuring accurate regulation of gas and cold air. Kromschroeder 88300087 IC 40A2A servomotor technical data Series 40, programmable via an optical interface Torque: 2 Nm 4 – 20 mA analogue input and digital inputs Parameter set 68026, operating mode 21, 2-point operation, running time: 7.5 s Weight: 2 kg Mains voltage: 100 – 230 V AC, ±10%, 50/60 Hz, the actuator automatically adjusts to the respective mains voltage Switch-on peak current: max. 8 A for max. 10 ms Screw terminals using the elevator principles for cables up to 4 mm2 (single core cables) and for cables up to 2.5 mm2 with wire end ferrules Angle of rotation: 0 – 90°, setting accuracy < 0.05° Holding torque = torque as long as mains voltage is applied 2 digital inputs: 24 V DC or 100 – 230 V AC each Current requirement of digital inputs: 3 mA ± 1.5 mA 1 analogue input (optional): 4 – 20 mA (internal load impedance: max. 500 Ω at 20 mA) Potentiometer (optional): 1 kΩ ± 20%, linearity tolerance: ± 2%, max. capacity: 0.25 W, conductive plastic element 2 digital outputs: Signaling contacts designed as relay change-over contacts Contact current of digital outputs: min. 5 mA (resistive) and max. 2 A The relay contacts can be connected to 100 – 230 V AC or 24 V DC If the contacts have been connected with a voltage > 24 V and a current > 0.1 A once, the gold plating on the contacts will have been burnt through. This contact can then only be connected with this power rating or higher power rating Enclosure: IP 65 Safety class: I Duty cycle: 100% Electrical connection: Line entrance: 3 x M20 plastic cable glands Ambient temperature: -20 to +60°C, no condensation permitted Storage temperature: -20 to +40°C
