Siłownik Honeywell MT4001B1034

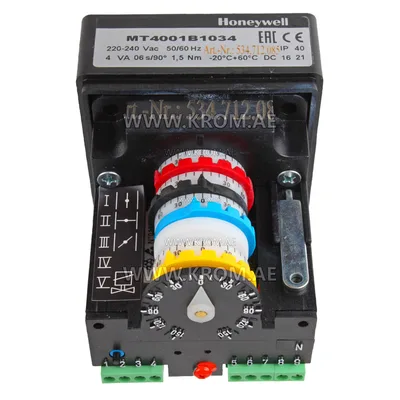

Honeywell MT4001B1034 (M221/4) High-speed air damper actuator 1.5 Nm for small and medium power gas burners. Honeywell MT4001B1034 is an electromechanical actuator designed for automatic control of the air damper in small and medium power gas burners. The device provides rapid opening and closing of the damper (6 seconds for 90°), as well as intermediate positioning for two-stage operation "low flame - high flame". Technical specifications: Parameter Value; Part numbers MT4001B1034, M221/4, 534.712.085; Manufacturer Honeywell / Satronic (USA/Europe); Actuator type Synchronous motor with gearbox; Supply voltage 220-240 V AC, 50/60 Hz; Torque 1.5-3 Nm (depending on source); Opening time for 90° 6 seconds; Power consumption 4 VA; Max. rotation angle 0-160 degrees; Shaft type Round with flat surface; Rotation direction Left (counterclockwise); Adjustment elements Cam shaft with cams and microswitches; Adjustment tool Included (cam adjustment step 2°); Connection type Two-wire (thermostat / ignition controller); Cable entries PG9; Protection class IP40; Operating temperature -15°C to +60°C; Compatibility Full-featured ignition controllers, two-wire thermostats; Compatibility and application: The MT4001B1034 actuator is intended for controlling the air damper in gaseous fuel combustion systems. It is compatible with two-wire thermostats and full-featured ignition controllers from Honeywell and other manufacturers. Key advantages: Fast response: Full opening time of the damper for 90° is only 6 seconds, ensuring rapid burner startup. Two-stage...
