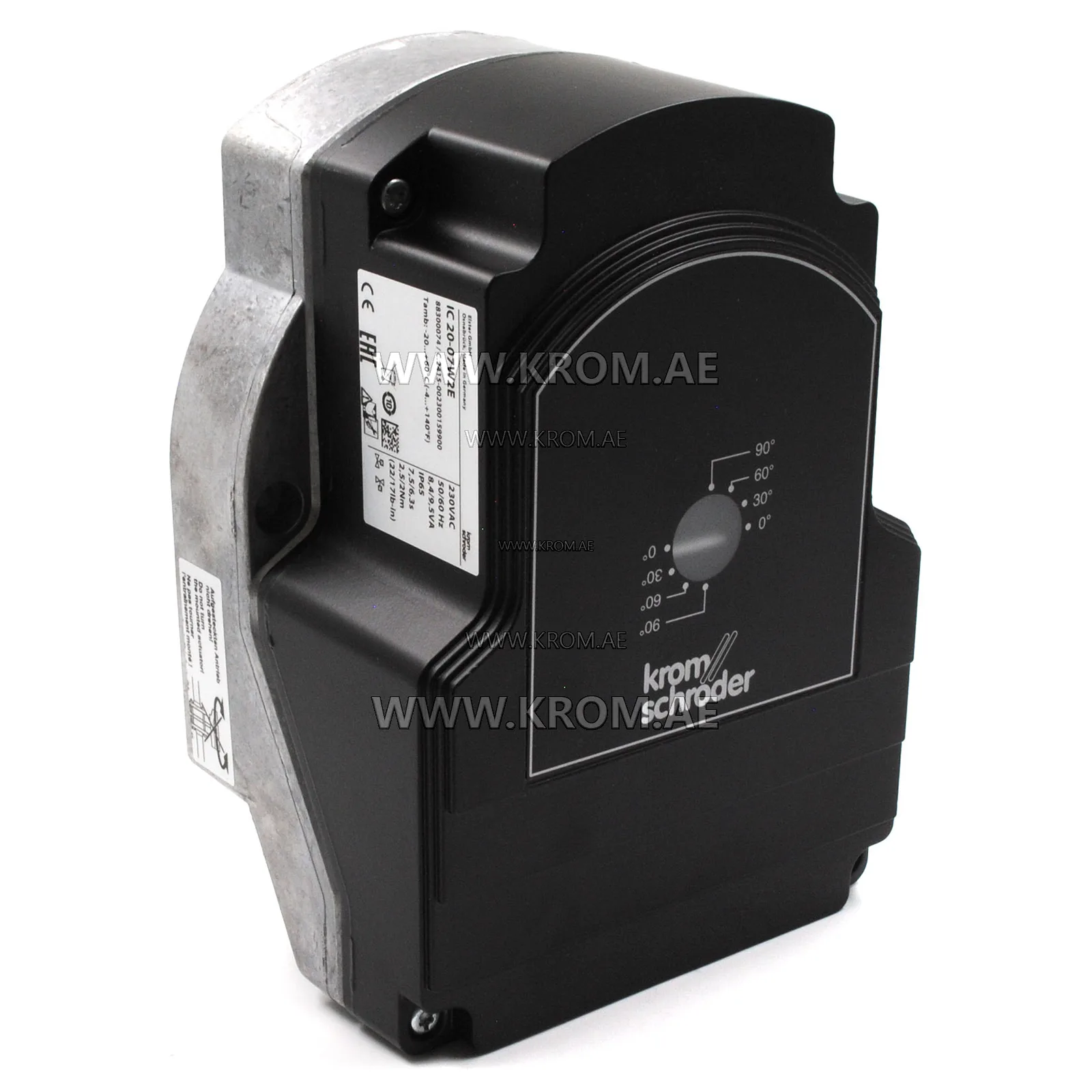

Attuatore Kromschroeder IC20-07W2E (88300074)

Kromschroeder IC 20-07W2E 88300074 servomotor is engineered for precise and controlled rotary movement within the range of 0° to 90°. In the event of voltage disconnection, Kromschroder IC 20-07W2E 88300074 actuator halts at its present position, ensuring stability and reliability in operation. Kromschroder IC 20-07W2E 88300074 actuator application Kromschroeder IC 20-07W2E 88300074 servo motor, when paired with a control element, is engineered to regulate gas and air volumes across various appliances and flue gas lines. Furthermore, Kromschroeder 88300074 IC 20-07W2E actuator, in conjunction with the butterfly valve BV.. (IB..), is tailored to achieve control ratios of up to 10:1 for gas, cold and hot air, as well as flue gas. Similarly, Kromschroder 88300074 IC 20-07W2E servomotor, working with the linear flow control VFC (IFC), is designed to attain control ratios of up to 25:1 for gas and cold air. Kromschroder IC 20-07W2E 88300074 servo motor technical data Screw terminals using the elevator principles for cables up to 4 mm2 (single core cables) and for cables up to 2.5 mm2 with wire end ferrules Angle of rotation: 0 – 90°, adjustable Holding torque = torque Safety class: I Duty cycle: 100% Line entrance: 3 x M20 plastic cable glands Ambient temperature: -20 to +60°C, no condensation permitted Storage temperature: -20 to +40°C Resistance of the feedback potentiometer: 1 kΩ, max. 0.5 W Series 20, with voltage-free limit switches Running time: 07 s/90° Mains voltage: 230 V AC, 50/60 Hz Torque: 2 Nm Continuous control Weight: 1,95 kg Certification Kromschroeder 88300074 IC 20-07W2E servo motor 2014/35/EU 2014/30/EU DIN EN 60730-1
