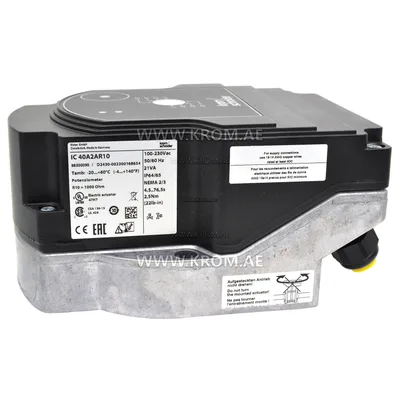

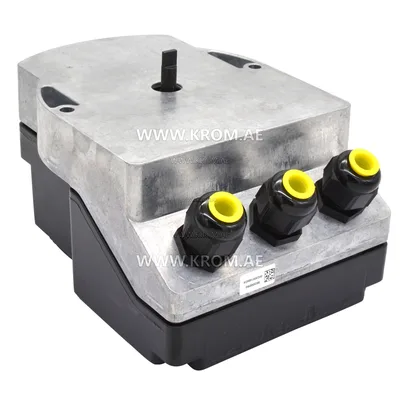

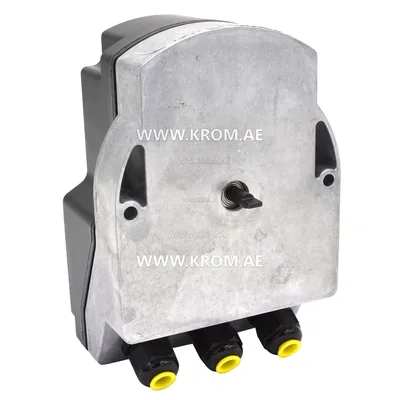

Kromschroeder-Stellantrieb „IC40A2AR10“ (88300090)

Kromschroder IC 40A2AR10 88300090 servomotor enables precise rotary movement from 0° to 90° for various applications, allowing for controlled gas and air adjustment. Configuration is done through BCSoft software. Paired with the BV.. (IB..) butterfly valve, it achieves control ratios up to 10:1 for gas, cold air, hot air, and flue gas. Combined with the VFC (IFC) linear flow control, it offers ratios up to 25:1 for gas and cold air regulation. Kromschroeder 88300090 IC 40A2AR10 actuator technical data Series 40, programmable via an optical interface Torque: 2 Nm 4 – 20 mA analogue input and digital inputs Feedback potentiometer: 1000 Ohm Parameter set 68026, operating mode 21, 2-point operation, running time: 7.5 s Weight: 2 kg Mains voltage: 100 – 230 V AC, ±10%, 50/60 Hz, the actuator automatically adjusts to the respective mains voltage Switch-on peak current: max. 8 A for max. 10 ms Screw terminals using the elevator principles for cables up to 4 mm2 (single core cables) and for cables up to 2.5 mm2 with wire end ferrules Angle of rotation: 0 – 90°, setting accuracy < 0.05° Holding torque = torque as long as mains voltage is applied 2 digital inputs: 24 V DC or 100 – 230 V AC each Current requirement of digital inputs: 3 mA ± 1.5 mA 1 analogue input (optional): 4 – 20 mA (internal load impedance: max. 500 Ω at 20 mA) Potentiometer (optional): 1 kΩ ± 20%, linearity tolerance: ± 2%, max. capacity: 0.25 W, conductive plastic element 2 digital outputs: Signaling contacts designed as relay change-over contacts Contact current of digital outputs: min. 5 mA (resistive) and max. 2 A The relay contacts can be connected to 100 – 230 V AC or 24 V DC If the contacts have been connected with a voltage > 24 V and a current > 0.1 A once, the gold plating on the contacts will have been burnt through. This contact can then only be connected with this power rating or higher power rating Enclosure: IP 65 Safety class: I Duty cycle: 100% Electrical connection: Line entrance: 3 x M20 plastic cable glands Ambient temperature: -20 to +60°C, no condensation permitted Storage temperature: -20 to +40°C Krom schroder IC 40A2AR10 88300090 servomotor certification 2014/35/EU 2014/30/EU DIN EN 60730
