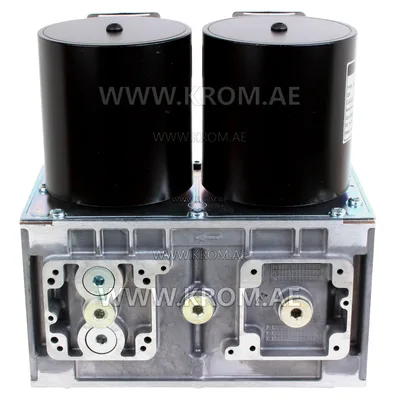

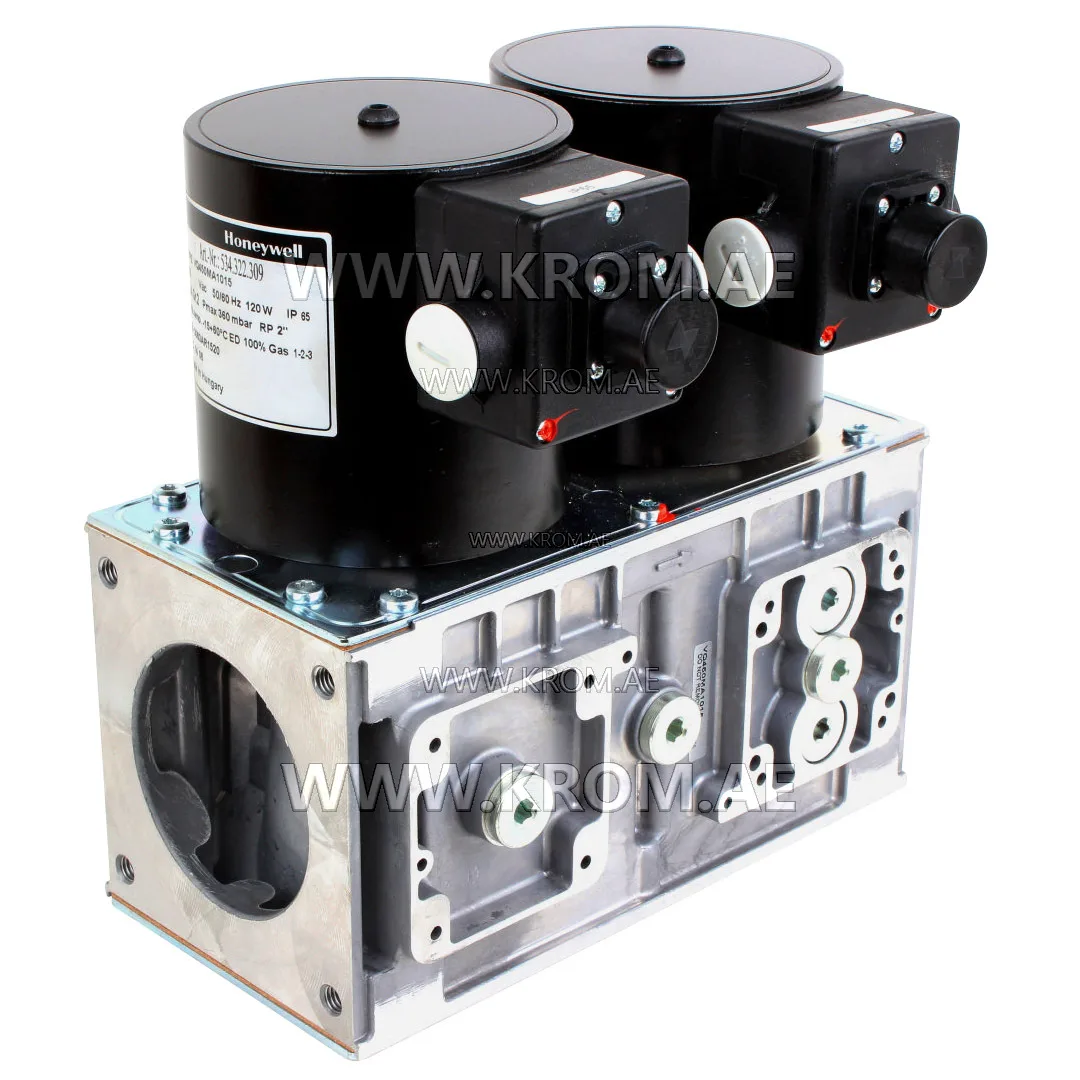

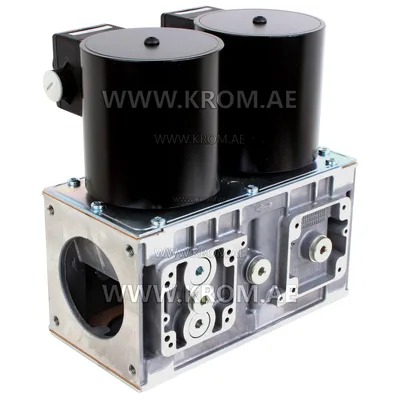

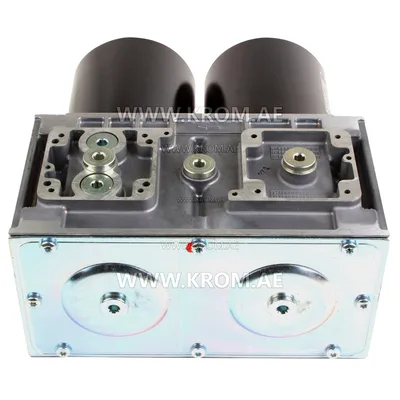

Honeywell-VQ450MA1015-Gasventil DN50

Honeywell VQ450MA1015 class "A" gas control block used to control and regulate the supply of gaseous media in high-power gas burners, atmospheric gas boilers, melting furnaces, incinerators and other gas-exhaust installations. Honeywell VQ450MA1015 CVI valve technical data: Maximum operating pressure: 360 mbar Pipe connections comply with the requirements of group 2 of the EN 161 standard Electrical connections: standard connector corresponding to the PG11 connector on the main gas valves and additional valves Ambient temperature range: -15 ... 60 °C Coil insulation: insulation material conforming to Class F Body material: Aluminum alloy, injection molding Closing spring: AISI 302 steel Valve plunger: chrome-plated Fe 360B steel sliding on an anti-friction bearing Seals and gaskets: hydrocarbon-resistant NBR rubber Number of cycles: 300000 Closing time: < 1 sec Maximum response frequency: 1 cycle per minute Duty cycle: coils are suitable for continuous excitation
