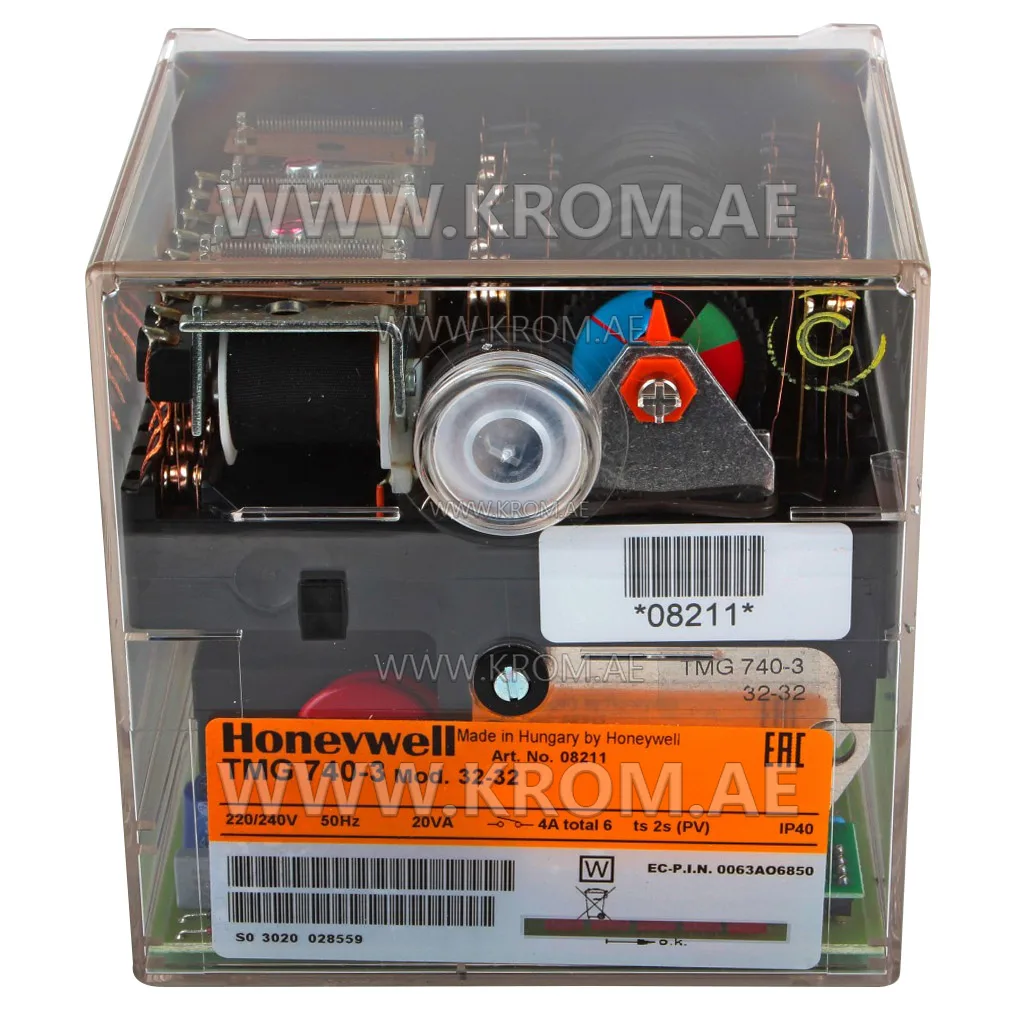

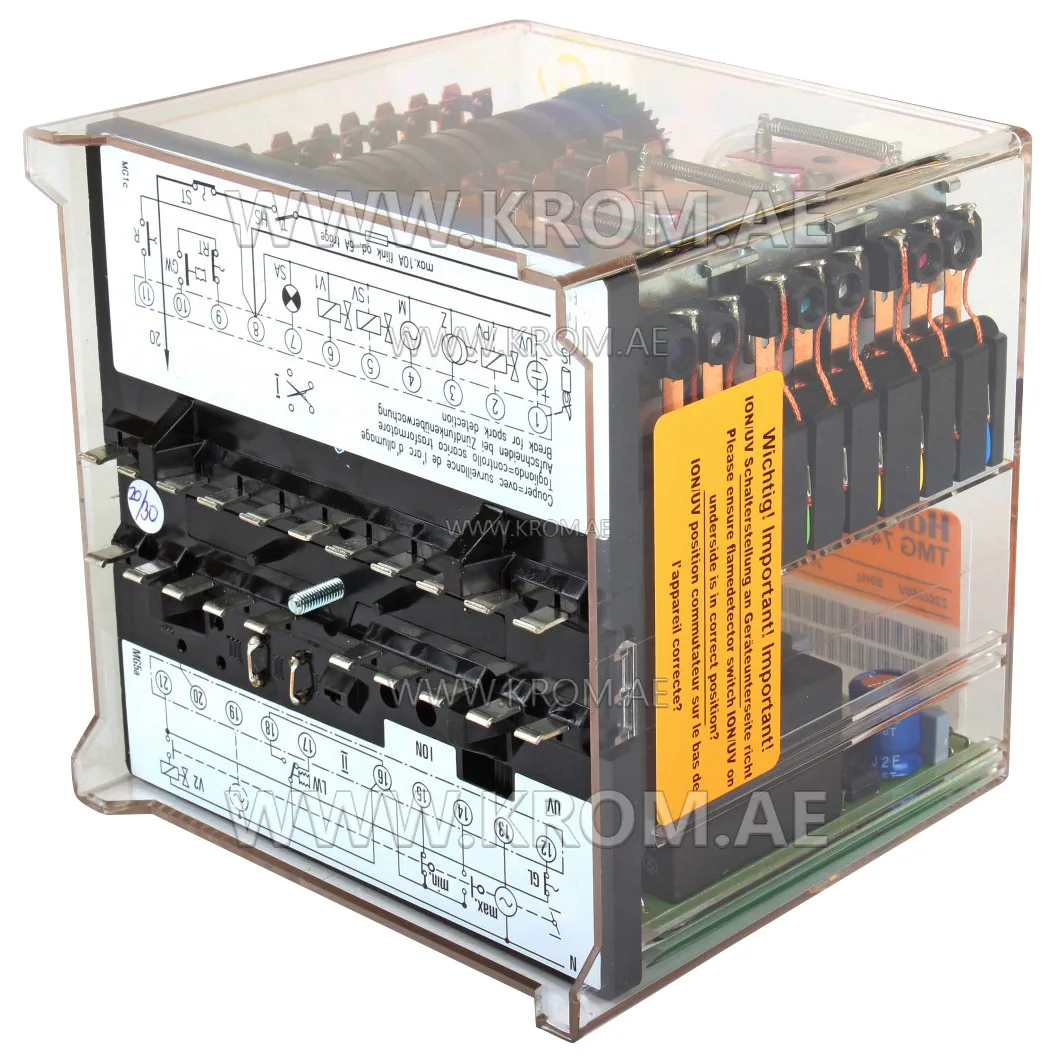

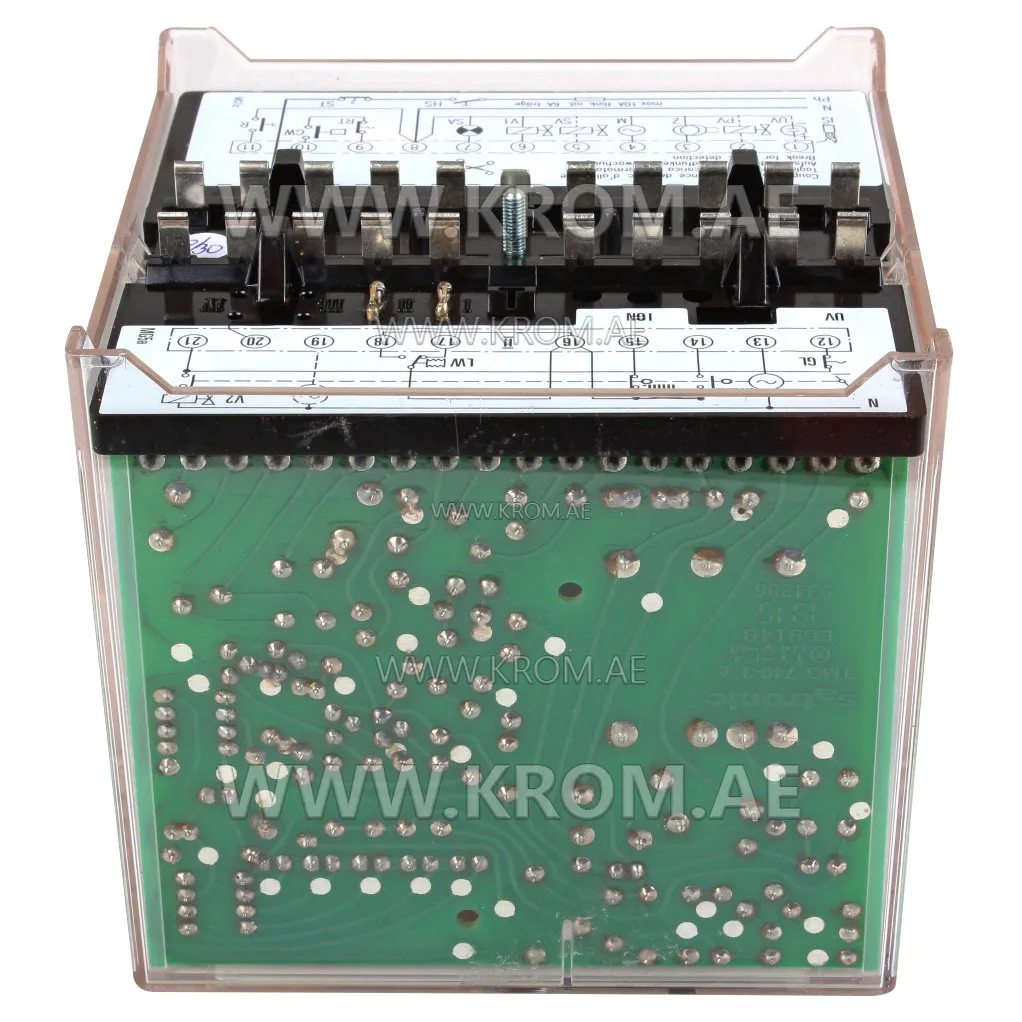

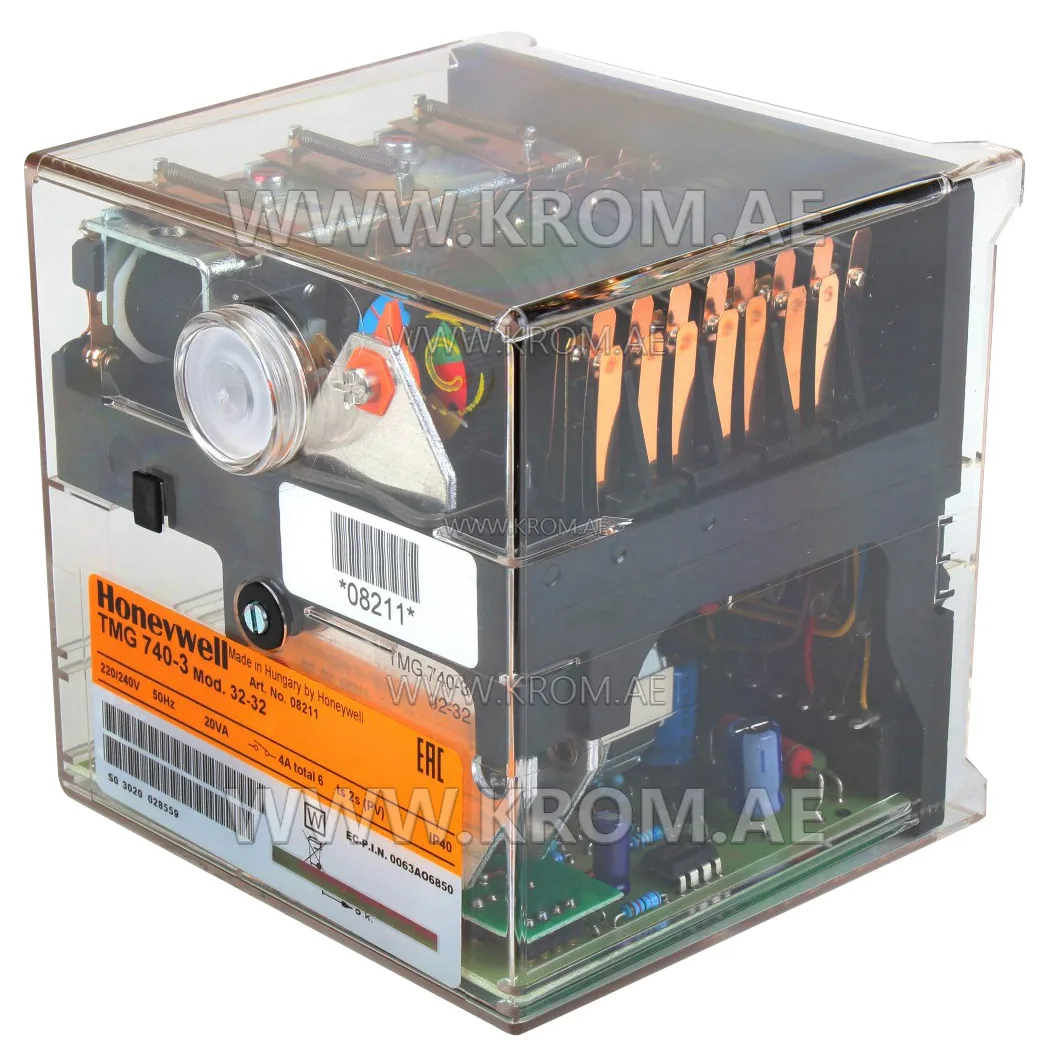

صندوق التحكم Honeywell TMG740-3 mod.32-32 08211

Satronic TMG740-3 mod.32-32 gas control unit designed for high-performance forced-draught burners and dual-fuel burners with intermittent operation. It supports both single-stage and two-stage burner configurations. This device ensures precise control and efficient regulation of combustion processes, which is crucial for reliable and safe operation of heating systems and hot water supply. Suitable flame detectors: Ionisation probe UV sensor Infra-red flicker detector Resideo TMG740-3 mod.32-32 gas burner safety control box technical data: Pre-purge time supervised: 24 Pre-purge time with air damper open: 30 Pre-ignition time fixed: 3 Start valve safety interval: 2 Pilot valve safety interval: 3 Pilot valve switch on time: 11 Main valve 1 safety interval: 2 Valve 1 delay: 9 Valve 2 delay: 6 Post-purge: 7 Supply voltage: 220 / 240 V (-15... +10%) 50 HZ (40 - 60 Hz) Fuse rating: 10 A rapid, 6 A slow Power consumption: approx. 15 VA Sensitivity Ionisation input: 1.6 µA UV input: 70 µA Weight incl. base: 1100 g Mounting attitude: any Insulation standard: IP 44 Permissable ambient temp.: -20° C to +60° C incl. Classified acc. to EN 298:  BTLLXN
