مشغل Kromschroeder IC30-60K3TR10 (03149354)

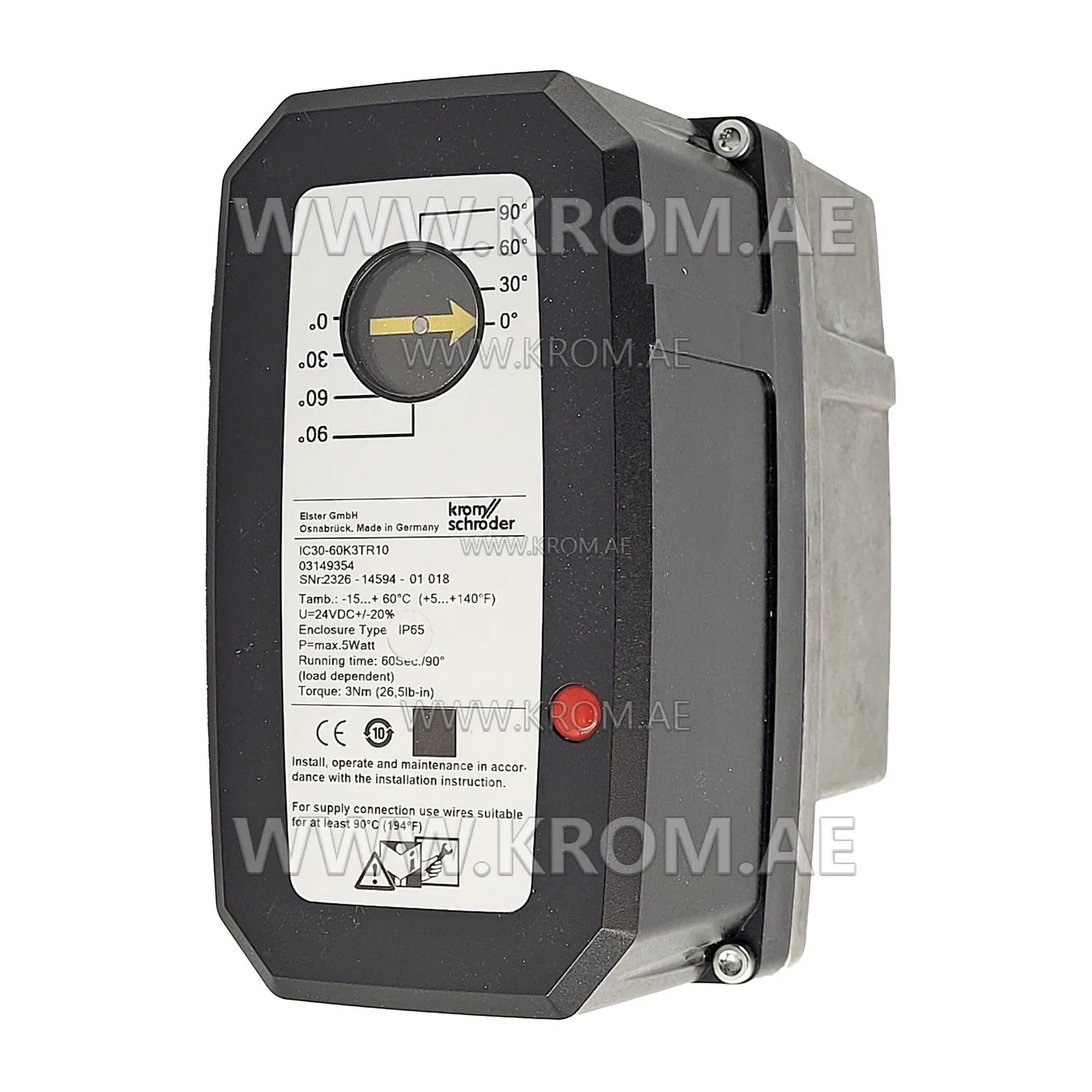

Kromschroder IC30-60K3TR10 03149354 servo motor serves for linear flow control in VFC or for butterfly valves in BVA and BVG applications. In the event of voltage disconnection, Kromschroeder 03149354 IC30-60K3TR10 servomotor halts in its present position. Krom schroder 03149354 IC30-60K3TR10 actuator technical data Series 30, with voltage-free limit switches Running time: 60 s/90° Torque: 3 Nm Three-point step control Feedback potentiometer: 1000 Ohm Weight: 1,87 kg Mains voltage: 24 V DC Line entrance: 3 x M16 plastic cable glands (enclosed) Screw terminals using the elevator principles for cables up to 2.5 mm2 with wire end ferrules The running time changes depending on the load. It refers to the torque Minimum pulse duration: 100 ms Minimum pause between 2 pulses: 100 ms Enclosure: IP 65 Duty cycle: 100% Ambient temperature: -15 to +60°C, no condensation permitted Storage temperature: -15 to +40°C Resistance of the feedback potentiometer: 1 kΩ, < 50 V, recommended wiper current: 0.2 μA
